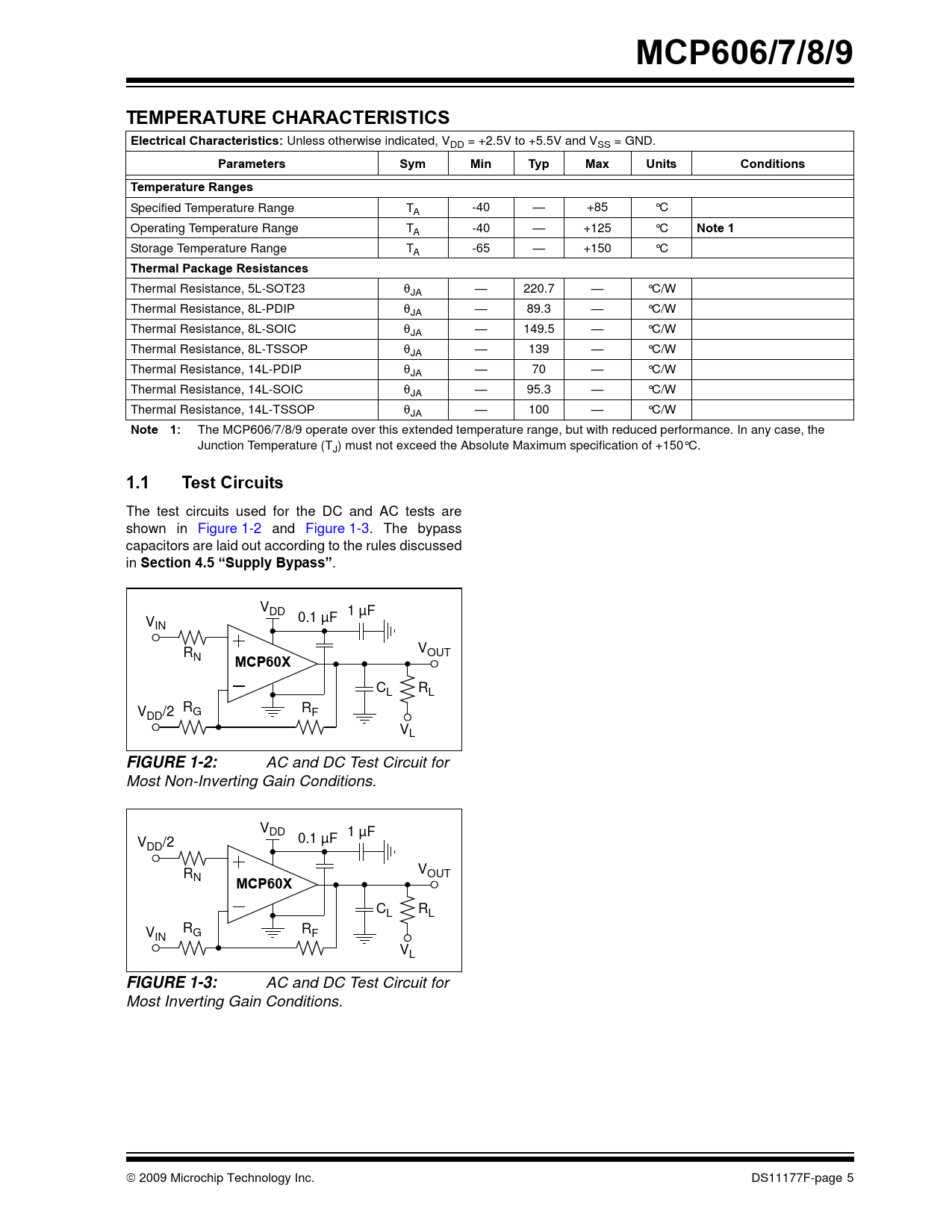

MCP606/7/8/9 TEMPERATURE CHARACTERISTICS Electrical Characteristics:
Unless otherwise indicated, VDD = +2.5V to +5.5V and VSS = GND.
Parameters Sym Min Typ Max Units Conditions Temperature Ranges
Specified Temperature Range TA -40 — +85 °C Operating Temperature Range TA -40 — +125 °C
Note 1
Storage Temperature Range TA -65 — +150 °C
Thermal Package Resistances
Thermal Resistance, 5L-SOT23 θJA — 220.7 — °C/W Thermal Resistance, 8L-PDIP θJA — 89.3 — °C/W Thermal Resistance, 8L-SOIC θJA — 149.5 — °C/W Thermal Resistance, 8L-TSSOP θJA — 139 — °C/W Thermal Resistance, 14L-PDIP θJA — 70 — °C/W Thermal Resistance, 14L-SOIC θJA — 95.3 — °C/W Thermal Resistance, 14L-TSSOP θJA — 100 — °C/W
Note 1:
The MCP606/7/8/9 operate over this extended temperature range, but with reduced performance. In any case, the Junction Temperature (TJ) must not exceed the Absolute Maximum specification of +150°C.
1.1 Test Circuits
The test circuits used for the DC and AC tests are shown in Figure 1-2 and Figure 1-3. The bypass capacitors are laid out according to the rules discussed in
Section 4.5 “Supply Bypass”
. VDD 1 µF V 0.1 µF IN R V N OUT
MCP60X
CL RL R V G RF DD/2 VL
FIGURE 1-2:
AC and DC Test Circuit for Most Non-Inverting Gain Conditions. VDD 1 µF V 0.1 µF DD/2 R V N OUT
MCP60X
CL RL R V G RF IN VL
FIGURE 1-3:
