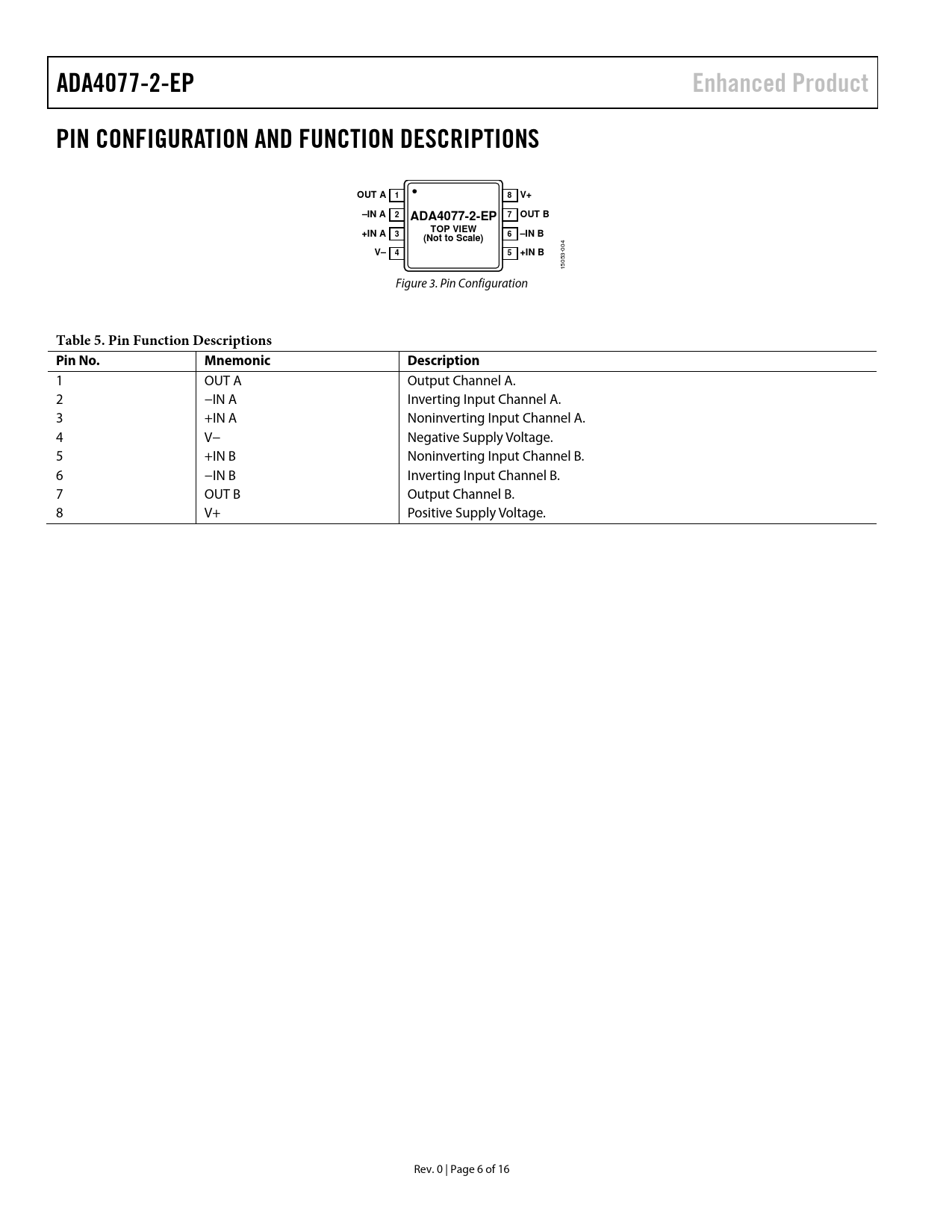

ADA4077-2-EPEnhanced ProductPIN CONFIGURATION AND FUNCTION DESCRIPTIONSOUT A18V+–IN A27OUT BADA4077-2-EPTOP VIEW+IN A36–IN B(Not to Scale) 004 V–45+IN B 15053- Figure 3. Pin Configuration Table 5. Pin Function Descriptions Pin No.MnemonicDescription 1 OUT A Output Channel A. 2 −IN A Inverting Input Channel A. 3 +IN A Noninverting Input Channel A. 4 V− Negative Supply Voltage. 5 +IN B Noninverting Input Channel B. 6 −IN B Inverting Input Channel B. 7 OUT B Output Channel B. 8 V+ Positive Supply Voltage. Rev. 0 | Page 6 of 16 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS PIN CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, ±5 V ELECTRICAL CHARACTERISTICS, ±15 V ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
