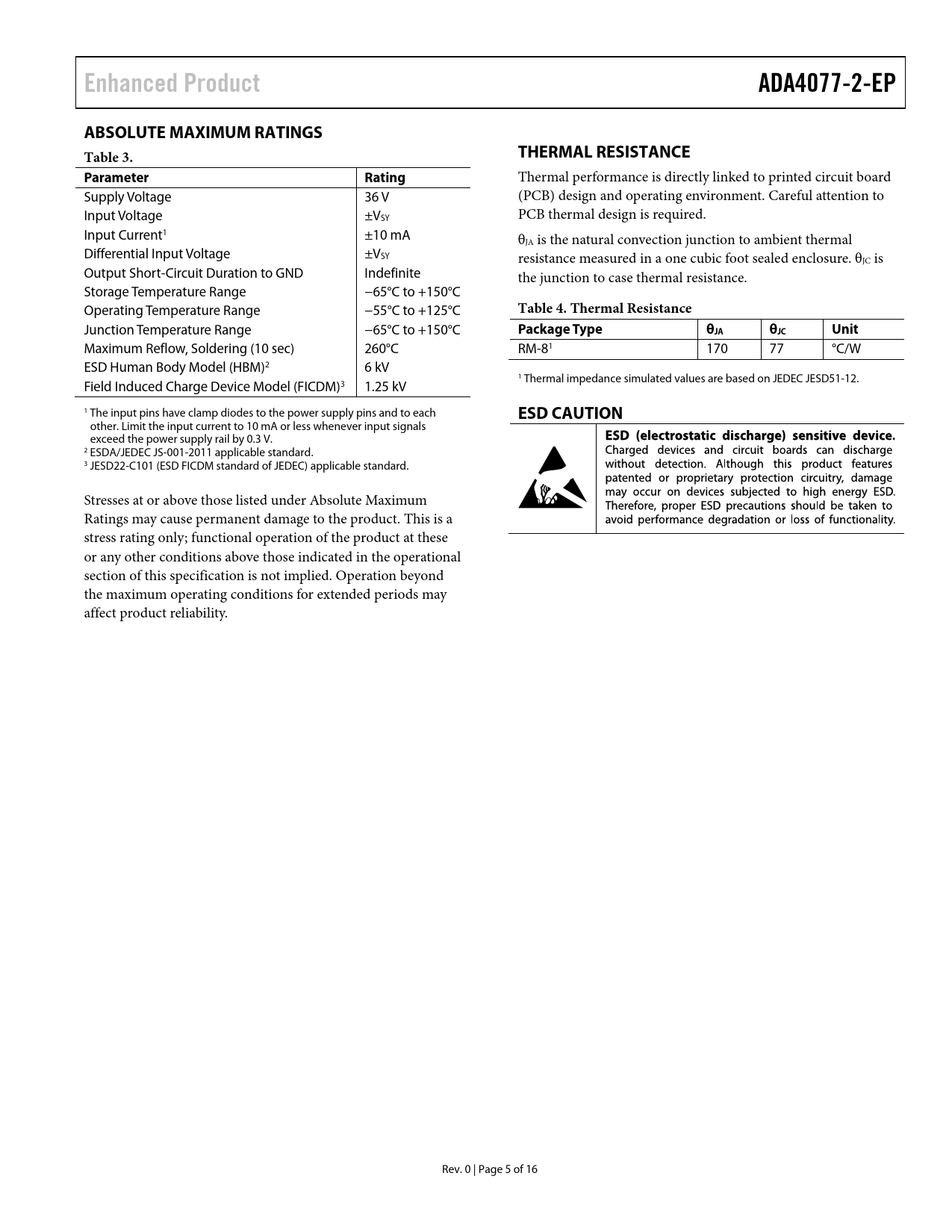

Enhanced Product. ADA4077-2-EP. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE. Parameter. Rating
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Enhanced Product ADA4077-2-EP ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
Thermal performance is directly linked to printed circuit board Supply Voltage 36 V (PCB) design and operating environment. Careful attention to Input Voltage ±VSY PCB thermal design is required. Input Current1 ±10 mA θJA is the natural convection junction to ambient thermal Differential Input Voltage ±VSY resistance measured in a one cubic foot sealed enclosure. θJC is Output Short-Circuit Duration to GND Indefinite the junction to case thermal resistance. Storage Temperature Range −65°C to +150°C Operating Temperature Range −55°C to +125°C
Table 4. Thermal Resistance
Junction Temperature Range −65°C to +150°C
Package Type θJA θJC Unit
Maximum Reflow, Soldering (10 sec) 260°C RM-81 170 77 °C/W ESD Human Body Model (HBM)2 6 kV 1 Field Induced Charge Device Model (FICDM)3 1.25 kV Thermal impedance simulated values are based on JEDEC JESD51-12. 1 The input pins have clamp diodes to the power supply pins and to each
ESD CAUTION
other. Limit the input current to 10 mA or less whenever input signals exceed the power supply rail by 0.3 V. 2 ESDA/JEDEC JS-001-2011 applicable standard. 3 JESD22-C101 (ESD FICDM standard of JEDEC) applicable standard. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. 0 | Page 5 of 16 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS PIN CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, ±5 V ELECTRICAL CHARACTERISTICS, ±15 V ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
