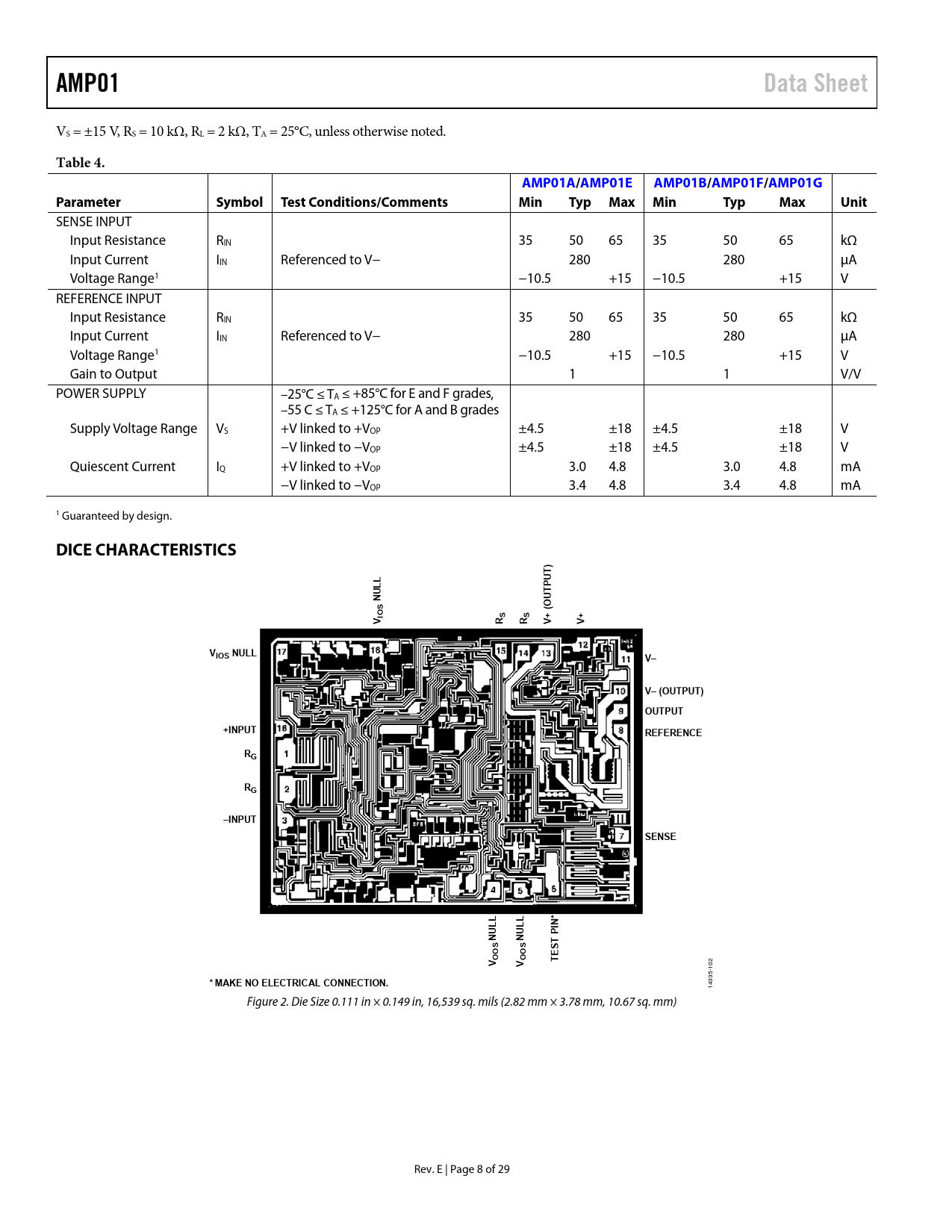

AMP01 Data Sheet
VS = ±15 V, RS = 10 kΩ, RL = 2 kΩ, TA = 25°C, unless otherwise noted.
Table 4. AMP01A/AMP01E AMP01B/AMP01F/AMP01G Parameter Symbol Test Conditions/Comments Min Typ Max Min Typ Max Unit
SENSE INPUT Input Resistance RIN 35 50 65 35 50 65 kΩ Input Current IIN Referenced to V− 280 280 μA Voltage Range1 −10.5 +15 −10.5 +15 V REFERENCE INPUT Input Resistance RIN 35 50 65 35 50 65 kΩ Input Current IIN Referenced to V− 280 280 μA Voltage Range1 −10.5 +15 −10.5 +15 V Gain to Output 1 1 V/V POWER SUPPLY –25°C ≤ TA ≤ +85°C for E and F grades, –55 C ≤ TA ≤ +125°C for A and B grades Supply Voltage Range VS +V linked to +VOP ±4.5 ±18 ±4.5 ±18 V −V linked to −VOP ±4.5 ±18 ±4.5 ±18 V Quiescent Current IQ +V linked to +VOP 3.0 4.8 3.0 4.8 mA −V linked to −VOP 3.4 4.8 3.4 4.8 mA 1 Guaranteed by design.
DICE CHARACTERISTICS ) T L U L P T U NU O S IO S S V R R V+ ( V+ VIOS NULL V– V– (OUTPUT) OUTPUT +INPUT REFERENCE RG RG –INPUT SENSE L L * L L IN NU NU P S S EST OO OO V V T
-102
* MAKE NO ELECTRICAL CONNECTION.
14335 Figure 2. Die Size 0.111 in × 0.149 in, 16,539 sq. mils (2.82 mm × 3.78 mm, 10.67 sq. mm) Rev. E | Page 8 of 29 Document Outline FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS DICE CHARACTERISTICS WAFER TEST LIMITS (AMP01NBC) ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INPUT AND OUTPUT OFFSET VOLTAGES INPUT BIAS AND OFFSET CURRENTS GAIN COMMON-MODE REJECTION ACTIVE GUARD DRIVE GROUNDING SENSE AND REFERENCE TERMINALS DRIVING 50 Ω LOADS HEATSINKING OVERVOLTAGE PROTECTION POWER SUPPLY CONSIDERATIONS APPLICATIONS CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
