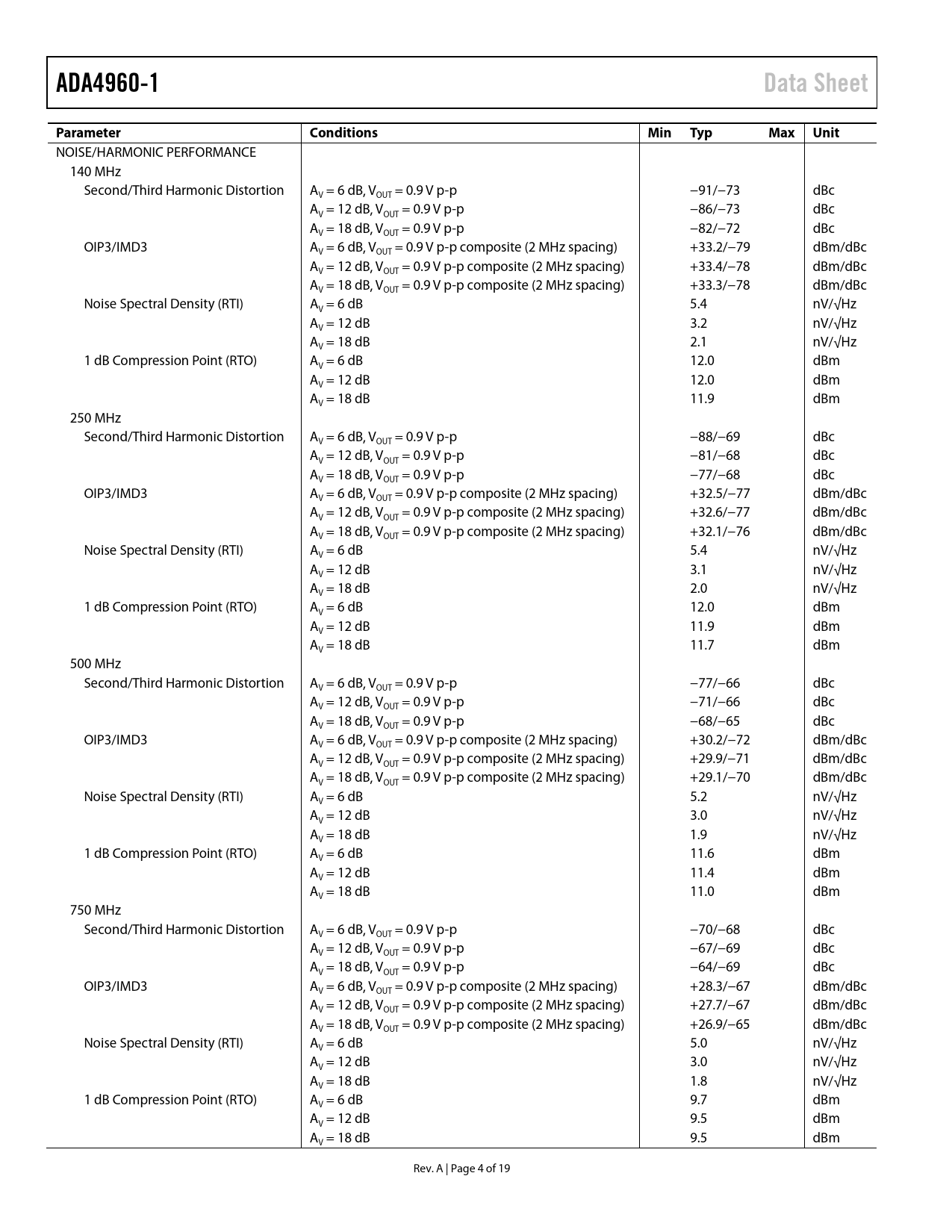

ADA4960-1 Data Sheet Parameter Conditions Min Typ Max Unit
NOISE/HARMONIC PERFORMANCE 140 MHz Second/Third Harmonic Distortion A = 6 dB, V = 0.9 V p-p −91/−73 dBc V OUT A = 12 dB, V = 0.9 V p-p −86/−73 dBc V OUT A = 18 dB, V = 0.9 V p-p −82/−72 dBc V OUT OIP3/IMD3 A = 6 dB, V = 0.9 V p-p composite (2 MHz spacing) +33.2/−79 dBm/dBc V OUT A = 12 dB, V = 0.9 V p-p composite (2 MHz spacing) +33.4/−78 dBm/dBc V OUT A = 18 dB, V = 0.9 V p-p composite (2 MHz spacing) +33.3/−78 dBm/dBc V OUT Noise Spectral Density (RTI) A = 6 dB 5.4 nV/√Hz V A = 12 dB 3.2 nV/√Hz V A = 18 dB 2.1 nV/√Hz V 1 dB Compression Point (RTO) A = 6 dB 12.0 dBm V A = 12 dB 12.0 dBm V A = 18 dB 11.9 dBm V 250 MHz Second/Third Harmonic Distortion A = 6 dB, V = 0.9 V p-p −88/−69 dBc V OUT A = 12 dB, V = 0.9 V p-p −81/−68 dBc V OUT A = 18 dB, V = 0.9 V p-p −77/−68 dBc V OUT OIP3/IMD3 A = 6 dB, V = 0.9 V p-p composite (2 MHz spacing) +32.5/−77 dBm/dBc V OUT A = 12 dB, V = 0.9 V p-p composite (2 MHz spacing) +32.6/−77 dBm/dBc V OUT A = 18 dB, V = 0.9 V p-p composite (2 MHz spacing) +32.1/−76 dBm/dBc V OUT Noise Spectral Density (RTI) A = 6 dB 5.4 nV/√Hz V A = 12 dB 3.1 nV/√Hz V A = 18 dB 2.0 nV/√Hz V 1 dB Compression Point (RTO) A = 6 dB 12.0 dBm V A = 12 dB 11.9 dBm V A = 18 dB 11.7 dBm V 500 MHz Second/Third Harmonic Distortion A = 6 dB, V = 0.9 V p-p −77/−66 dBc V OUT A = 12 dB, V = 0.9 V p-p −71/−66 dBc V OUT A = 18 dB, V = 0.9 V p-p −68/−65 dBc V OUT OIP3/IMD3 A = 6 dB, V = 0.9 V p-p composite (2 MHz spacing) +30.2/−72 dBm/dBc V OUT A = 12 dB, V = 0.9 V p-p composite (2 MHz spacing) +29.9/−71 dBm/dBc V OUT A = 18 dB, V = 0.9 V p-p composite (2 MHz spacing) +29.1/−70 dBm/dBc V OUT Noise Spectral Density (RTI) A = 6 dB 5.2 nV/√Hz V A = 12 dB 3.0 nV/√Hz V A = 18 dB 1.9 nV/√Hz V 1 dB Compression Point (RTO) A = 6 dB 11.6 dBm V A = 12 dB 11.4 dBm V A = 18 dB 11.0 dBm V 750 MHz Second/Third Harmonic Distortion A = 6 dB, V = 0.9 V p-p −70/−68 dBc V OUT A = 12 dB, V = 0.9 V p-p −67/−69 dBc V OUT A = 18 dB, V = 0.9 V p-p −64/−69 dBc V OUT OIP3/IMD3 A = 6 dB, V = 0.9 V p-p composite (2 MHz spacing) +28.3/−67 dBm/dBc V OUT A = 12 dB, V = 0.9 V p-p composite (2 MHz spacing) +27.7/−67 dBm/dBc V OUT A = 18 dB, V = 0.9 V p-p composite (2 MHz spacing) +26.9/−65 dBm/dBc V OUT Noise Spectral Density (RTI) A = 6 dB 5.0 nV/√Hz V A = 12 dB 3.0 nV/√Hz V A = 18 dB 1.8 nV/√Hz V 1 dB Compression Point (RTO) A = 6 dB 9.7 dBm V A = 12 dB 9.5 dBm V A = 18 dB 9.5 dBm V Rev. A | Page 4 of 19 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Circuit Description Basic Structure Applications Information Basic Connections Input and Output Interfacing Gain Adjust Bandwidth Extension ADC Interfacing Line Driver Applications Overdrive and Recovery Layout, Grounding, and Bypassing Outline Dimensions Ordering Guide
