Data Sheet. ADA4960-1. Parameter. Conditions. Min Typ. Max Unit

Data Sheet ADA4960-1 Parameter Conditions Min Typ Max Unit

Modelllinie für dieses Datenblatt

Textversion des Dokuments

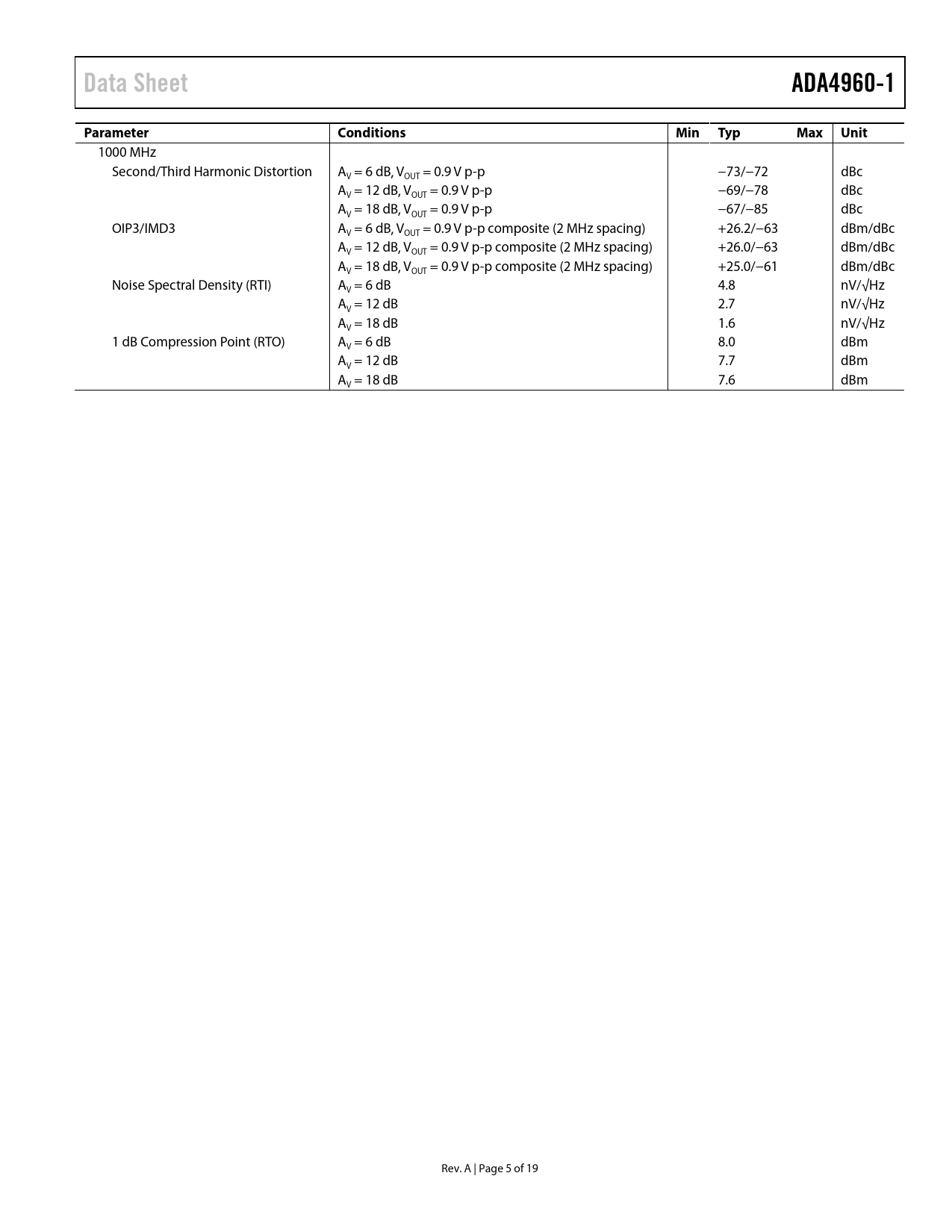

Data Sheet ADA4960-1 Parameter Conditions Min Typ Max Unit
1000 MHz Second/Third Harmonic Distortion A = 6 dB, V = 0.9 V p-p −73/−72 dBc V OUT A = 12 dB, V = 0.9 V p-p −69/−78 dBc V OUT A = 18 dB, V = 0.9 V p-p −67/−85 dBc V OUT OIP3/IMD3 A = 6 dB, V = 0.9 V p-p composite (2 MHz spacing) +26.2/−63 dBm/dBc V OUT A = 12 dB, V = 0.9 V p-p composite (2 MHz spacing) +26.0/−63 dBm/dBc V OUT A = 18 dB, V = 0.9 V p-p composite (2 MHz spacing) +25.0/−61 dBm/dBc V OUT Noise Spectral Density (RTI) A = 6 dB 4.8 nV/√Hz V A = 12 dB 2.7 nV/√Hz V A = 18 dB 1.6 nV/√Hz V 1 dB Compression Point (RTO) A = 6 dB 8.0 dBm V A = 12 dB 7.7 dBm V A = 18 dB 7.6 dBm V Rev. A | Page 5 of 19 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Circuit Description Basic Structure Applications Information Basic Connections Input and Output Interfacing Gain Adjust Bandwidth Extension ADC Interfacing Line Driver Applications Overdrive and Recovery Layout, Grounding, and Bypassing Outline Dimensions Ordering Guide
