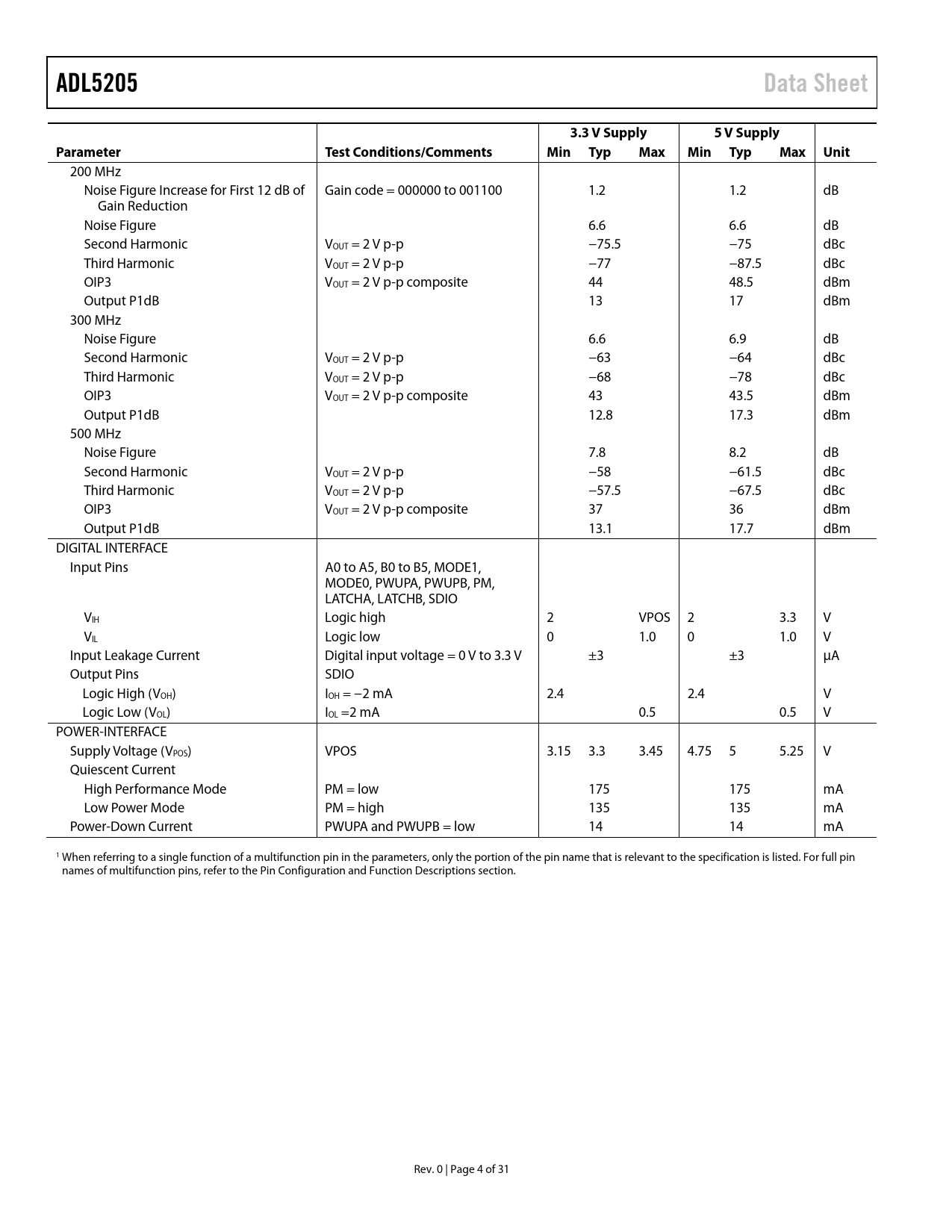

ADL5205 Data Sheet 3.3 V Supply 5 V Supply Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
200 MHz Noise Figure Increase for First 12 dB of Gain code = 000000 to 001100 1.2 1.2 dB Gain Reduction Noise Figure 6.6 6.6 dB Second Harmonic VOUT = 2 V p-p −75.5 −75 dBc Third Harmonic VOUT = 2 V p-p −77 −87.5 dBc OIP3 VOUT = 2 V p-p composite 44 48.5 dBm Output P1dB 13 17 dBm 300 MHz Noise Figure 6.6 6.9 dB Second Harmonic VOUT = 2 V p-p −63 −64 dBc Third Harmonic VOUT = 2 V p-p −68 −78 dBc OIP3 VOUT = 2 V p-p composite 43 43.5 dBm Output P1dB 12.8 17.3 dBm 500 MHz Noise Figure 7.8 8.2 dB Second Harmonic VOUT = 2 V p-p −58 −61.5 dBc Third Harmonic VOUT = 2 V p-p −57.5 −67.5 dBc OIP3 VOUT = 2 V p-p composite 37 36 dBm Output P1dB 13.1 17.7 dBm DIGITAL INTERFACE Input Pins A0 to A5, B0 to B5, MODE1, MODE0, PWUPA, PWUPB, PM, LATCHA, LATCHB, SDIO VIH Logic high 2 VPOS 2 3.3 V VIL Logic low 0 1.0 0 1.0 V Input Leakage Current Digital input voltage = 0 V to 3.3 V ±3 ±3 µA Output Pins SDIO Logic High (VOH) IOH = −2 mA 2.4 2.4 V Logic Low (VOL) IOL =2 mA 0.5 0.5 V POWER-INTERFACE Supply Voltage (VPOS) VPOS 3.15 3.3 3.45 4.75 5 5.25 V Quiescent Current High Performance Mode PM = low 175 175 mA Low Power Mode PM = high 135 135 mA Power-Down Current PWUPA and PWUPB = low 14 14 mA 1 When referring to a single function of a multifunction pin in the parameters, only the portion of the pin name that is relevant to the specification is listed. For full pin names of multifunction pins, refer to the Pin Configuration and Function Descriptions section. Rev. 0 | Page 4 of 31 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE JUNCTION TO BOARD THERMAL IMPEDANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC STRUCTURE CONTROL/LOGIC CIRCUITRY COMMON-MODE VOLTAGE APPLICATIONS INFORMATION BASIC CONNECTIONS DIGITAL INTERFACE OVERVIEW Parallel Digital Interface Serial Peripheral Interface (SPI) Up/Down Interface SPI READ ADC INTERFACING NOISE FIGURE vs. GAIN SETTING EVALUATION BOARD OVERVIEW POWER SUPPLY INTERFACE SIGNAL INPUTS AND OUTPUTS MANUAL CONTROLS Mode Switches Channel Control Switches PARALLEL INTERFACE SERIAL INTERFACE STANDARD DEVELOPMENT PLATFORM (SDP) INTERFACE EVALUATION BOARD CONTROL SOFTWARE COMMAND LINE CONTROL PROGRAM GRAPHICAL USER INTERFACE (GUI) PROGRAM EVALUATION BOARD SCHEMATICS AND LAYOUT BILL OF MATERIALS OUTLINE DIMENSIONS ORDERING GUIDE
