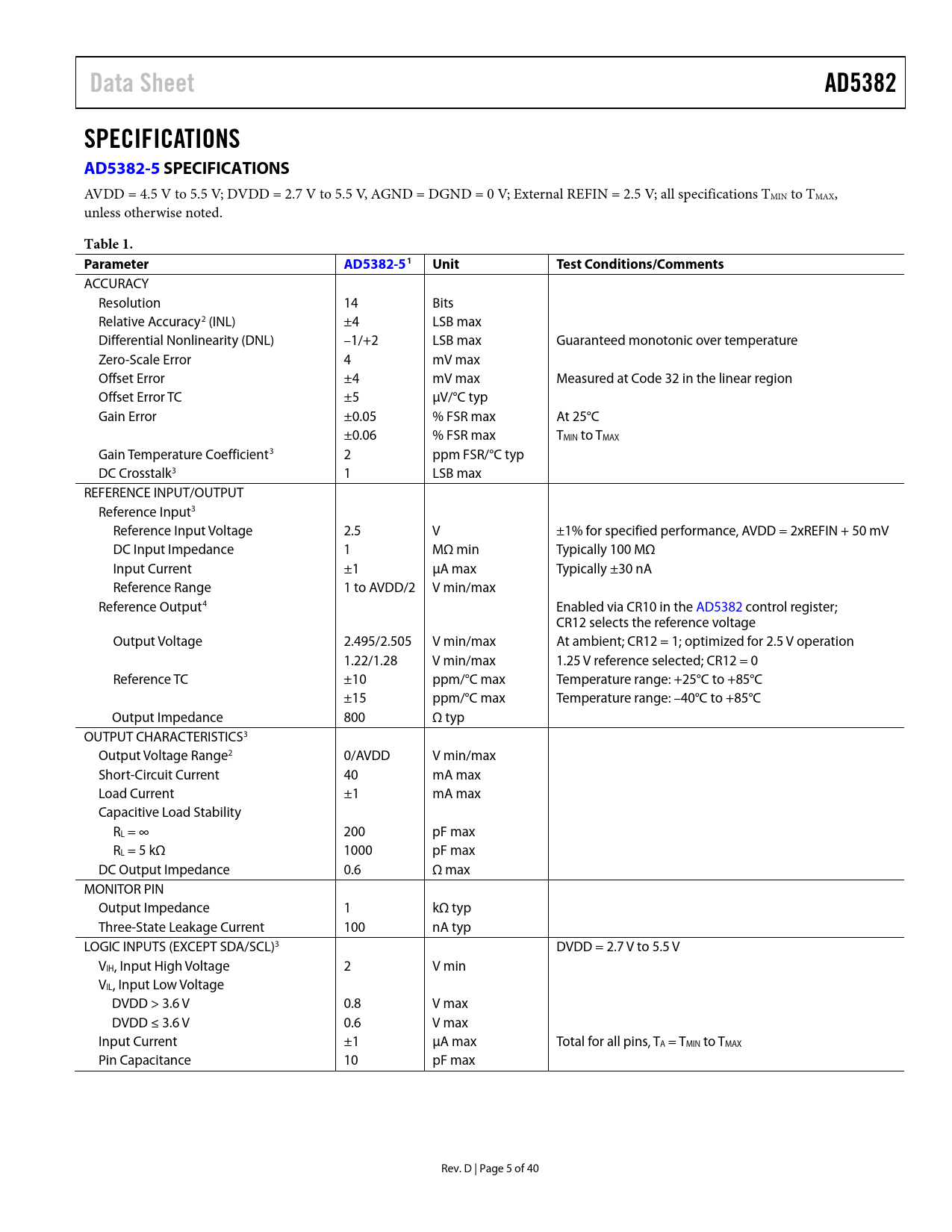

Data Sheet AD5382 SPECIFICATIONS AD5382-5 S PECIFICATIONS
AVDD = 4.5 V to 5.5 V; DVDD = 2.7 V to 5.5 V, AGND = DGND = 0 V; External REFIN = 2.5 V; all specifications TMIN to TMAX, unless otherwise noted.
Table 1. Parameter AD5382-51 Unit Test Conditions/Comments
ACCURACY Resolution 14 Bits Relative Accuracy2 (INL) ±4 LSB max Differential Nonlinearity (DNL) –1/+2 LSB max Guaranteed monotonic over temperature Zero-Scale Error 4 mV max Offset Error ±4 mV max Measured at Code 32 in the linear region Offset Error TC ±5 µV/°C typ Gain Error ±0.05 % FSR max At 25°C ±0.06 % FSR max TMIN to TMAX Gain Temperature Coefficient3 2 ppm FSR/°C typ DC Crosstalk3 1 LSB max REFERENCE INPUT/OUTPUT Reference Input3 Reference Input Voltage 2.5 V ±1% for specified performance, AVDD = 2xREFIN + 50 mV DC Input Impedance 1 MΩ min Typically 100 MΩ Input Current ±1 µA max Typically ±30 nA Reference Range 1 to AVDD/2 V min/max Reference Output4 Enabled via CR10 in the AD5382 control register; CR12 selects the reference voltage Output Voltage 2.495/2.505 V min/max At ambient; CR12 = 1; optimized for 2.5 V operation 1.22/1.28 V min/max 1.25 V reference selected; CR12 = 0 Reference TC ±10 ppm/°C max Temperature range: +25°C to +85°C ±15 ppm/°C max Temperature range: –40°C to +85°C Output Impedance 800 Ω typ OUTPUT CHARACTERISTICS3 Output Voltage Range2 0/AVDD V min/max Short-Circuit Current 40 mA max Load Current ±1 mA max Capacitive Load Stability RL = ∞ 200 pF max RL = 5 kΩ 1000 pF max DC Output Impedance 0.6 Ω max MONITOR PIN Output Impedance 1 kΩ typ Three-State Leakage Current 100 nA typ LOGIC INPUTS (EXCEPT SDA/SCL)3 DVDD = 2.7 V to 5.5 V VIH, Input High Voltage 2 V min VIL, Input Low Voltage DVDD > 3.6 V 0.8 V max DVDD ≤ 3.6 V 0.6 V max Input Current ±1 µA max Total for all pins, TA = TMIN to TMAX Pin Capacitance 10 pF max Rev. D | Page 5 of 40 Document Outline Features Integrated Functions Applications Functional Block Diagram Table of Contents Revision History General Description Specifications AD5382-5 Specifications AD5382-3 Specifications AC Characteristics Timing Characteristics SPI-, QSPI-, MICROWIRE-, or DSP-Compatible Serial Interface I2C Serial Interface Parallel Interface Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Terminology Typical Performance Characteristics Functional Description DAC Architecture—General Data Decoding On-Chip Special Function Registers (SFR) SFR Commands NOP (No Operation) Write Clear Code Soft Clear Soft Power-Down Soft Power-Up Soft RESET Control Register Write/Read Control Register Contents Channel Monitor Function Hardware Functions Reset Function Asynchronous Clear Function BUSY\ and LDAC\ Functions FIFO Operation in Parallel Mode Power-On Reset Power-Down AD5382 Interfaces DSP-, SPI-, MICROWIRE-Compatible Serial Interfaces Standalone Mode Daisy-Chain Mode Readback Mode I2C Serial Interface I2C Data Transfer Start and Stop Conditions Repeated Start Conditions Acknowledge Bit (ACK) AD5382 Slave Addresses Write Operation 4-Byte Mode 3-Byte Mode 2-Byte Mode Parallel Interface CS\ Pin WR\ Pin REG0, REG1 Pins Pins A4 to A0 Pins DB13 to DB0 Microprocessor Interfacing Parallel Interface AD5382 to MC68HC11 AD5382 to PIC16C6x/7x AD5382 to 8051 AD5382 to ADSP-BF527 Applications Information Power Supply Decoupling Power Supply Sequencing Typical Configuration Circuit Monitor Function Toggle Mode Function Thermal Monitor Function AD5382 in a MEMS-Based Optical Switch Optical Attenuators Outline Dimensions Ordering Guide
