Datasheet AD7720 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | CMOS Sigma-Delta Modulator with 90 dB Dynamic Range |
| Seiten / Seite | 17 / 6 — AD7720. ABSOLUTE MAXIMUM RATINGS1. PIN CONFIGURATION. REF2 1. 28 AVDD. … |
| Dateiformat / Größe | PDF / 271 Kb |
| Dokumentensprache | Englisch |
AD7720. ABSOLUTE MAXIMUM RATINGS1. PIN CONFIGURATION. REF2 1. 28 AVDD. AGND 2. 27 REF1. NC 3. 26 AGND. STBY 4. 25 AVDD. DVAL 5. 24 AGND. DGND 6
Modelllinie für dieses Datenblatt
Textversion des Dokuments

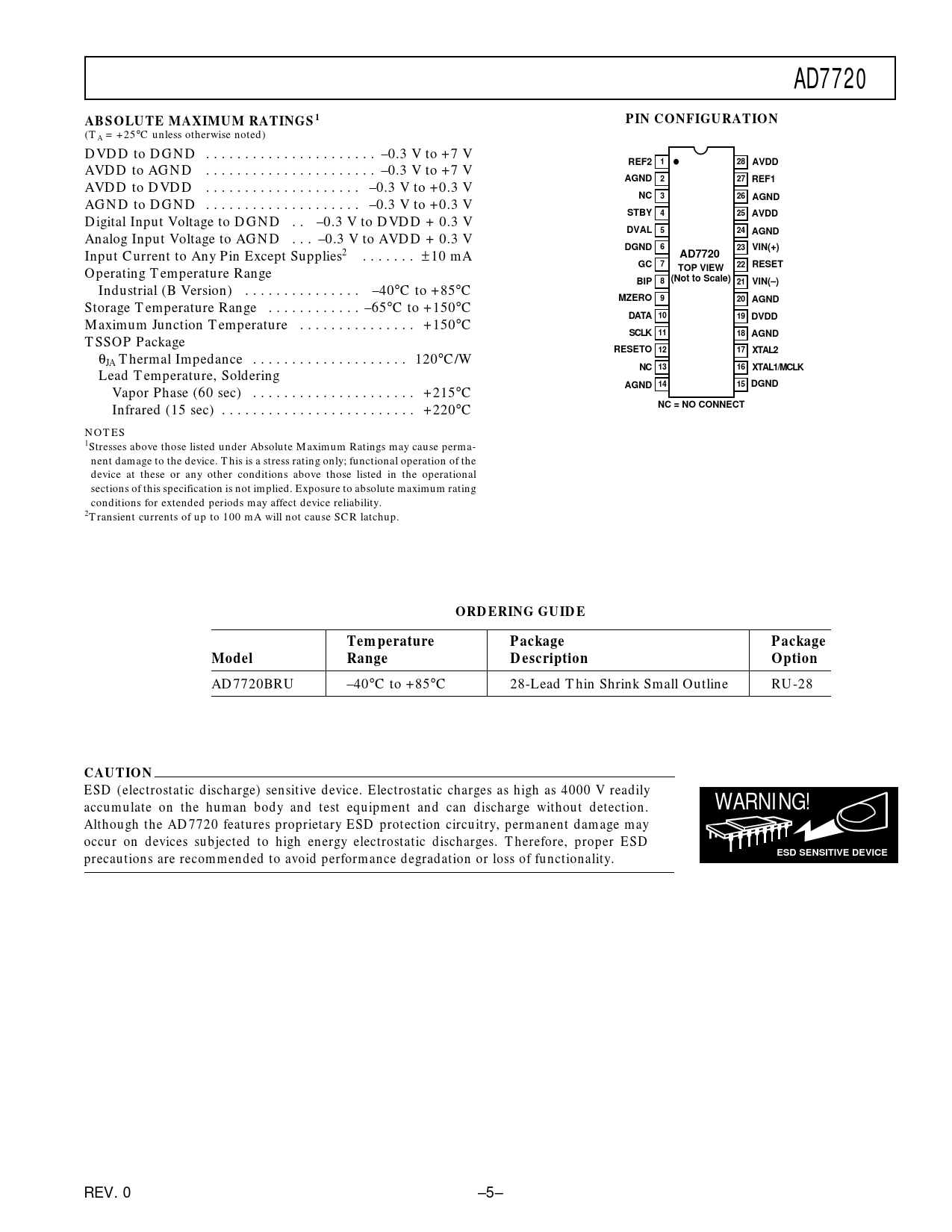

AD7720 ABSOLUTE MAXIMUM RATINGS1 PIN CONFIGURATION
(TA = +25°C unless otherwise noted) DVDD to DGND . –0.3 V to +7 V
REF2 1 28 AVDD
AVDD to AGND . –0.3 V to +7 V
AGND 2 27 REF1
AVDD to DVDD . –0.3 V to +0.3 V
NC 3 26 AGND
AGND to DGND . –0.3 V to +0.3 V
STBY 4 25 AVDD
Digital Input Voltage to DGND . –0.3 V to DVDD + 0.3 V
DVAL 5 24 AGND
Analog Input Voltage to AGND . –0.3 V to AVDD + 0.3 V
DGND 6 23 VIN(+)
Input Current to Any Pin Except Supplies2 . ± 10 mA
AD7720 GC 7 22 RESET
Operating Temperature Range
TOP VIEW (Not to Scale) BIP 8 21 VIN(–)
Industrial (B Version) . –40°C to +85°C
MZERO 9 20 AGND
Storage Temperature Range . –65°C to +150°C
DATA 10 19 DVDD
Maximum Junction Temperature . +150°C
SCLK 11 18 AGND
TSSOP Package θ
RESETO 12 17 XTAL2
JA Thermal Impedance . 120°C/W
NC 13 16 XTAL1/MCLK
Lead Temperature, Soldering
AGND 14 15 DGND
Vapor Phase (60 sec) . +215°C Infrared (15 sec) . +220°C
NC = NO CONNECT
NOTES 1Stresses above those listed under Absolute Maximum Ratings may cause perma- nent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2Transient currents of up to 100 mA will not cause SCR latchup.
ORDERING GUIDE Temperature Package Package Model Range Description Option
AD7720BRU –40°C to +85°C 28-Lead Thin Shrink Small Outline RU-28
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection.
WARNING!
Although the AD7720 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
ESD SENSITIVE DEVICE
precautions are recommended to avoid performance degradation or loss of functionality. REV. 0 –5–
