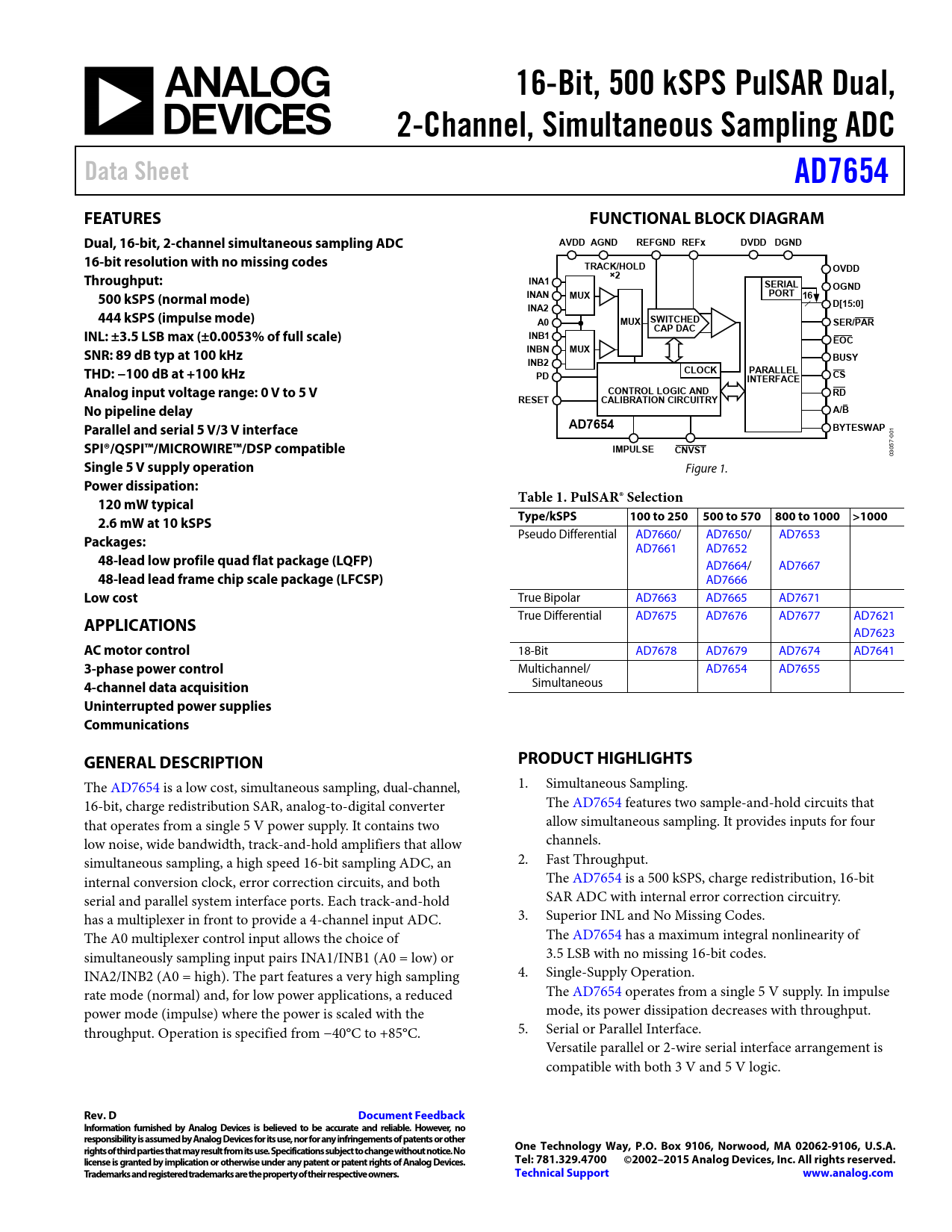

16-Bit, 500 kSPS PulSAR Dual, 2-Channel, Simultaneous Sampling ADC Data Sheet AD7654 FEATURES FUNCTIONAL BLOCK DIAGRAM Dual, 16-bit, 2-channel simultaneous sampling ADC AVDD AGND REFGND REFx DVDD DGND 16-bit resolution with no missing codes TRACK/HOLD OVDD ×2 Throughput: INA1 SERIAL OGND INAN PORT 500 kSPS (normal mode) MUX 16 D[15:0] INA2 444 kSPS (impulse mode) SWITCHED A0 MUX SER/PAR CAP DAC INL: ±3.5 LSB max (±0.0053% of full scale) INB1 EOC INBN MUX SNR: 89 dB typ at 100 kHz BUSY INB2 THD: −100 dB at +100 kHz CLOCK PARALLEL PD CS INTERFACE Analog input voltage range: 0 V to 5 V CONTROL LOGIC AND RD RESET CALIBRATION CIRCUITRY No pipeline delay A/B AD7654 Parallel and serial 5 V/3 V interface BYTESWAP
001
SPI®/QSPI™/MICROWIRE™/DSP compatible IMPULSE CNVST
03057-
Single 5 V supply operation
Figure 1.
Power dissipation: Table 1. PulSAR® Selection 120 mW typical Type/kSPS 100 to 250 500 to 570 800 to 1000 >1000 2.6 mW at 10 kSPS
Pseudo Differential AD7660/ AD7650/ AD7653
Packages:
AD7661 AD7652
48-lead low profile quad flat package (LQFP)
AD7664/ AD7667
48-lead lead frame chip scale package (LFCSP)
AD7666
Low cost
True Bipolar AD7663 AD7665 AD7671 True Differential AD7675 AD7676 AD7677 AD7621
APPLICATIONS
AD7623
AC motor control
18-Bit AD7678 AD7679 AD7674 AD7641
3-phase power control
Multichannel/ AD7654 AD7655
4-channel data acquisition
Simultaneous
Uninterrupted power supplies Communications GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The AD7654 is a low cost, simultaneous sampling, dual-channel, 1. Simultaneous Sampling. 16-bit, charge redistribution SAR, analog-to-digital converter The AD7654 features two sample-and-hold circuits that that operates from a single 5 V power supply. It contains two allow simultaneous sampling. It provides inputs for four low noise, wide bandwidth, track-and-hold amplifiers that allow channels. simultaneous sampling, a high speed 16-bit sampling ADC, an 2. Fast Throughput. internal conversion clock, error correction circuits, and both The AD7654 is a 500 kSPS, charge redistribution, 16-bit serial and parallel system interface ports. Each track-and-hold SAR ADC with internal error correction circuitry. has a multiplexer in front to provide a 4-channel input ADC. 3. Superior INL and No Missing Codes. The A0 multiplexer control input allows the choice of The AD7654 has a maximum integral nonlinearity of simultaneously sampling input pairs INA1/INB1 (A0 = low) or 3.5 LSB with no missing 16-bit codes. INA2/INB2 (A0 = high). The part features a very high sampling 4. Single-Supply Operation. rate mode (normal) and, for low power applications, a reduced The AD7654 operates from a single 5 V supply. In impulse power mode (impulse) where the power is scaled with the mode, its power dissipation decreases with throughput. throughput. Operation is specified from −40°C to +85°C. 5. Serial or Parallel Interface. Versatile parallel or 2-wire serial interface arrangement is compatible with both 3 V and 5 V logic.
