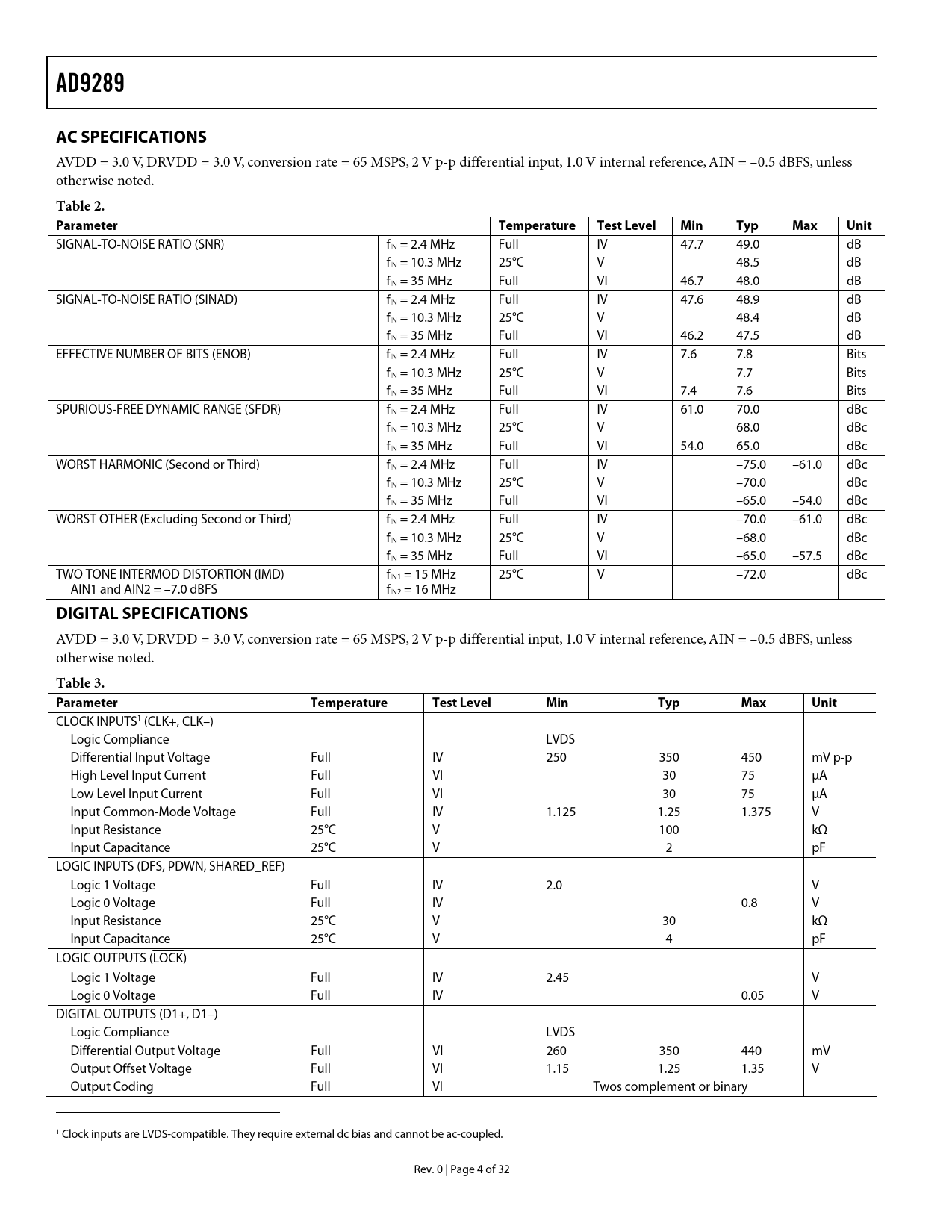

AD9289 AC SPECIFICATIONS
AVDD = 3.0 V, DRVDD = 3.0 V, conversion rate = 65 MSPS, 2 V p-p differential input, 1.0 V internal reference, AIN = –0.5 dBFS, unless otherwise noted.
Table 2. Parameter Temperature Test Level Min Typ Max Unit
SIGNAL-TO-NOISE RATIO (SNR) fIN = 2.4 MHz Full IV 47.7 49.0 dB fIN = 10.3 MHz 25°C V 48.5 dB fIN = 35 MHz Full VI 46.7 48.0 dB SIGNAL-TO-NOISE RATIO (SINAD) fIN = 2.4 MHz Full IV 47.6 48.9 dB fIN = 10.3 MHz 25°C V 48.4 dB fIN = 35 MHz Full VI 46.2 47.5 dB EFFECTIVE NUMBER OF BITS (ENOB) fIN = 2.4 MHz Full IV 7.6 7.8 Bits fIN = 10.3 MHz 25°C V 7.7 Bits fIN = 35 MHz Full VI 7.4 7.6 Bits SPURIOUS-FREE DYNAMIC RANGE (SFDR) fIN = 2.4 MHz Full IV 61.0 70.0 dBc fIN = 10.3 MHz 25°C V 68.0 dBc fIN = 35 MHz Full VI 54.0 65.0 dBc WORST HARMONIC (Second or Third) fIN = 2.4 MHz Full IV –75.0 –61.0 dBc fIN = 10.3 MHz 25°C V –70.0 dBc fIN = 35 MHz Full VI –65.0 –54.0 dBc WORST OTHER (Excluding Second or Third) fIN = 2.4 MHz Full IV –70.0 –61.0 dBc fIN = 10.3 MHz 25°C V –68.0 dBc fIN = 35 MHz Full VI –65.0 –57.5 dBc TWO TONE INTERMOD DISTORTION (IMD) fIN1 = 15 MHz 25°C V –72.0 dBc AIN1 and AIN2 = –7.0 dBFS fIN2 = 16 MHz
DIGITAL SPECIFICATIONS
AVDD = 3.0 V, DRVDD = 3.0 V, conversion rate = 65 MSPS, 2 V p-p differential input, 1.0 V internal reference, AIN = –0.5 dBFS, unless otherwise noted.
Table 3. Parameter Temperature Test Level Min Typ Max Unit
CLOCK INPUTS1 (CLK+, CLK–) Logic Compliance LVDS Differential Input Voltage Full IV 250 350 450 mV p-p High Level Input Current Full VI 30 75 µA Low Level Input Current Full VI 30 75 µA Input Common-Mode Voltage Full IV 1.125 1.25 1.375 V Input Resistance 25°C V 100 kΩ Input Capacitance 25°C V 2 pF LOGIC INPUTS (DFS, PDWN, SHARED_REF) Logic 1 Voltage Full IV 2.0 V Logic 0 Voltage Full IV 0.8 V Input Resistance 25°C V 30 kΩ Input Capacitance 25°C V 4 pF LOGIC OUTPUTS (LOCK) Logic 1 Voltage Full IV 2.45 V Logic 0 Voltage Full IV 0.05 V DIGITAL OUTPUTS (D1+, D1–) Logic Compliance LVDS Differential Output Voltage Full VI 260 350 440 mV Output Offset Voltage Full VI 1.15 1.25 1.35 V Output Coding Full VI Twos complement or binary 1 Clock inputs are LVDS-compatible. They require external dc bias and cannot be ac-coupled. Rev. 0 | Page 4 of 32 Document Outline FEATURES PRODUCT DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS EXPLANATION OF TEST LEVELS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS EQUIVALENT CIRCUITS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION ANALOG INPUT AND REFERENCE OVERVIEW Differential Input Configurations Single-Ended Input Configuration CLOCK INPUT AND CONSIDERATIONS Power Dissipation and Standby Mode Digital Outputs Timing Pin CML Pin DTP Pin Voltage Reference Internal Reference Connection External Reference Operation Power and Ground Recommendations EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
