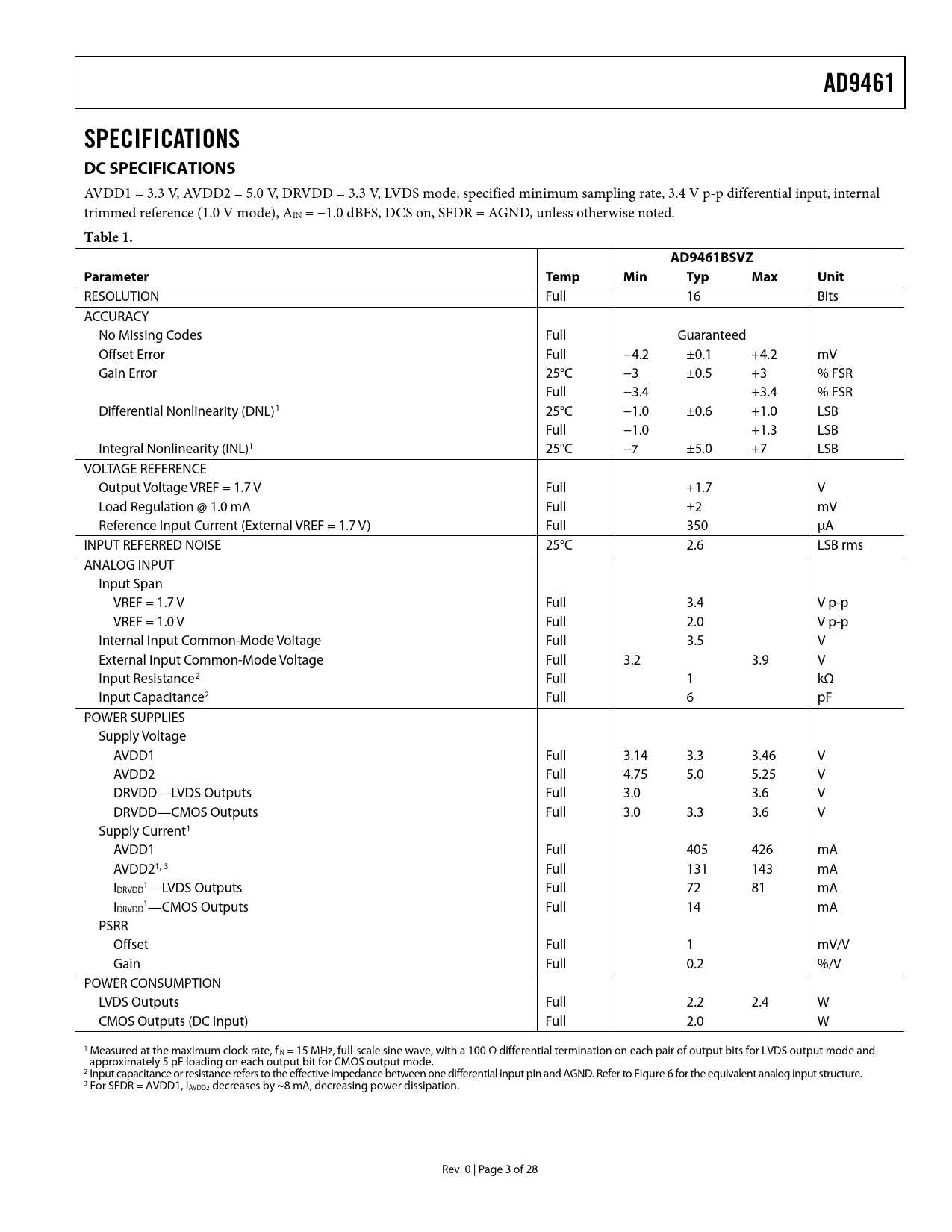

AD9461. SPECIFICATIONS DC SPECIFICATIONS. Table 1. AD9461BSVZ. Parameter. Temp. Min Typ Max Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 13
AD9461 SPECIFICATIONS DC SPECIFICATIONS
AVDD1 = 3.3 V, AVDD2 = 5.0 V, DRVDD = 3.3 V, LVDS mode, specified minimum sampling rate, 3.4 V p-p differential input, internal trimmed reference (1.0 V mode), AIN = −1.0 dBFS, DCS on, SFDR = AGND, unless otherwise noted.
Table 1. AD9461BSVZ Parameter Temp Min Typ Max Unit
RESOLUTION Full 16 Bits ACCURACY No Missing Codes Full Guaranteed Offset Error Full −4.2 ±0.1 +4.2 mV Gain Error 25°C −3 ±0.5 +3 % FSR Full −3.4 +3.4 % FSR Differential Nonlinearity (DNL)1 25°C −1.0 ±0.6 +1.0 LSB Full −1.0 +1.3 LSB Integral Nonlinearity (INL)1 25°C −7 ±5.0 +7 LSB VOLTAGE REFERENCE Output Voltage VREF = 1.7 V Full +1.7 V Load Regulation @ 1.0 mA Full ±2 mV Reference Input Current (External VREF = 1.7 V) Full 350 μA INPUT REFERRED NOISE 25°C 2.6 LSB rms ANALOG INPUT Input Span VREF = 1.7 V Full 3.4 V p-p VREF = 1.0 V Full 2.0 V p-p Internal Input Common-Mode Voltage Full 3.5 V External Input Common-Mode Voltage Full 3.2 3.9 V Input Resistance2 Full 1 kΩ Input Capacitance2 Full 6 pF POWER SUPPLIES Supply Voltage AVDD1 Full 3.14 3.3 3.46 V AVDD2 Full 4.75 5.0 5.25 V DRVDD—LVDS Outputs Full 3.0 3.6 V DRVDD—CMOS Outputs Full 3.0 3.3 3.6 V Supply Current1 AVDD1 Full 405 426 mA AVDD21, 3 Full 131 143 mA I 1 DRVDD —LVDS Outputs Full 72 81 mA I 1 DRVDD —CMOS Outputs Full 14 mA PSRR Offset Full 1 mV/V Gain Full 0.2 %/V POWER CONSUMPTION LVDS Outputs Full 2.2 2.4 W CMOS Outputs (DC Input) Full 2.0 W 1 Measured at the maximum clock rate, fIN = 15 MHz, full-scale sine wave, with a 100 Ω differential termination on each pair of output bits for LVDS output mode and approximately 5 pF loading on each output bit for CMOS output mode. 2 Input capacitance or resistance refers to the effective impedance between one differential input pin and AGND. Refer to Figure 6 for the equivalent analog input structure. 3 For SFDR = AVDD1, IAVDD2 decreases by ~8 mA, decreasing power dissipation. Rev. 0 | Page 3 of 28 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM APPLICATIONS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DC SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS EQUIVALENT CIRCUITS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION ANALOG INPUT AND REFERENCE OVERVIEW Internal Reference Connection Internal Reference Trim External Reference Operation Analog Inputs CLOCK INPUT CONSIDERATIONS Jitter Considerations POWER CONSIDERATIONS DIGITAL OUTPUTS LVDS Mode CMOS Mode TIMING OPERATIONAL MODE SELECTION Data Format Select Output Mode Select Duty Cycle Stabilizer SFDR Enhancement EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
