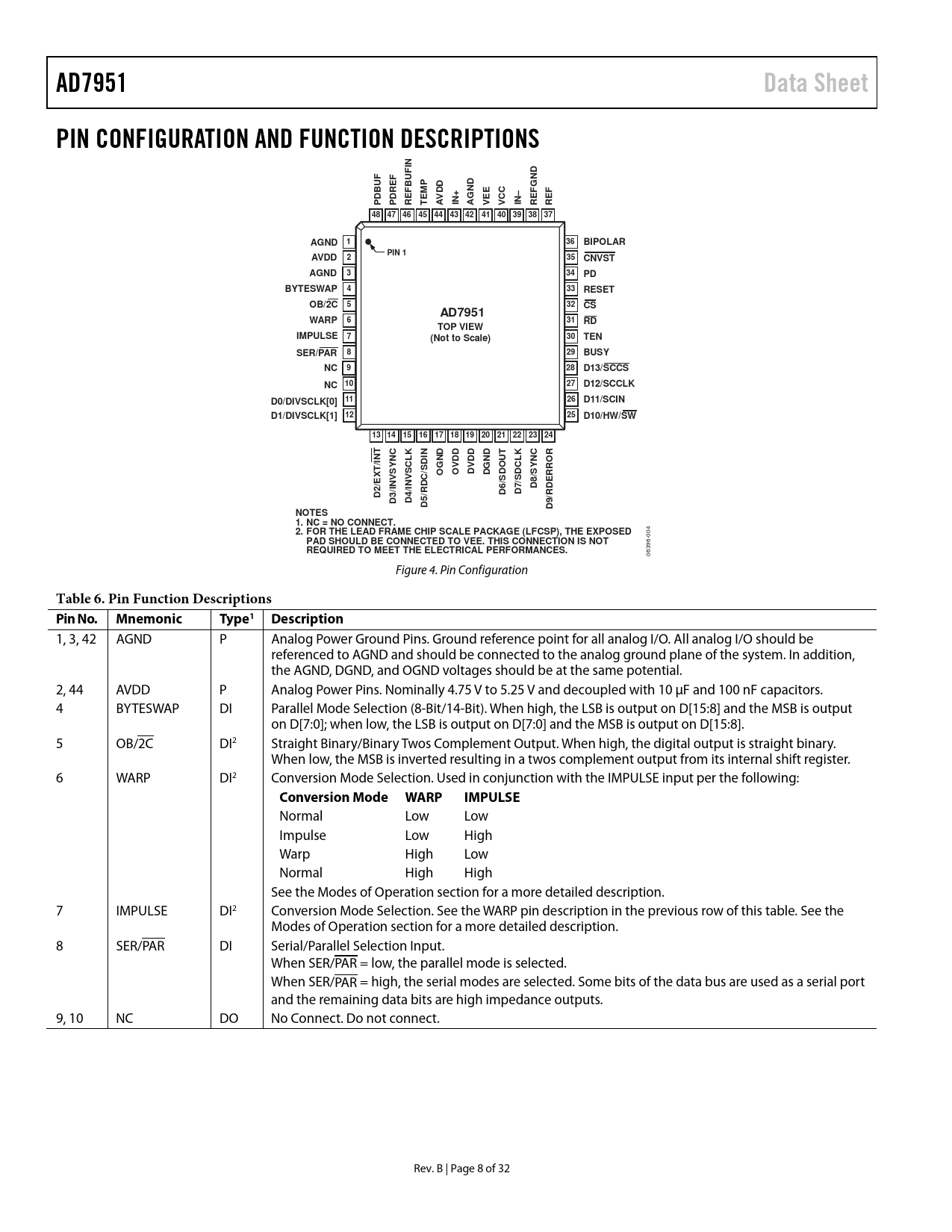

AD7951 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS IN F ND BUF P G F DD ND F F DBUF DRE EM V CC P P RE T A IN+ AG VEE V IN– RE RE 48 47 46 45 44 43 42 41 40 39 38 37 AGND 1 36 BIPOLAR PIN 1 AVDD 2 35 CNVST AGND 3 34 PD BYTESWAP 4 33 RESET OB/2C 5 32 CS AD7951 WARP 6 31 RD TOP VIEW IMPULSE 7 30 (Not to Scale) TEN SER/PAR 8 29 BUSY NC 9 28 D13/SCCS NC 10 27 D12/SCCLK D0/DIVSCLK[0] 11 26 D11/SCIN D1/DIVSCLK[1] 12 25 D10/HW/SW 13 14 15 16 17 18 19 20 21 22 23 24 T K N D K R NC DI DD DD ND UT NC T/IN Y CL S V Y X S S OGN O DV DG DO DCL S RRO S S /E 2 INV INV D8/ RDC/ D D6/ D7/ RDE D3/ D4/ D5/ D9/ NOTES 1. NC = NO CONNECT. 2. FOR THE LEAD FRAME CHIP SCALE PACKAGE (LFCSP), THE EXPOSED
004
PAD SHOULD BE CONNECTED TO VEE. THIS CONNECTION IS NOT REQUIRED TO MEET THE ELECTRICAL PERFORMANCES.
06396- Figure 4. Pin Configuration
Table 6. Pin Function Descriptions Pin No. Mnemonic Type1 Description
1, 3, 42 AGND P Analog Power Ground Pins. Ground reference point for all analog I/O. All analog I/O should be referenced to AGND and should be connected to the analog ground plane of the system. In addition, the AGND, DGND, and OGND voltages should be at the same potential. 2, 44 AVDD P Analog Power Pins. Nominally 4.75 V to 5.25 V and decoupled with 10 μF and 100 nF capacitors. 4 BYTESWAP DI Parallel Mode Selection (8-Bit/14-Bit). When high, the LSB is output on D[15:8] and the MSB is output on D[7:0]; when low, the LSB is output on D[7:0] and the MSB is output on D[15:8]. 5 OB/2C DI2 Straight Binary/Binary Twos Complement Output. When high, the digital output is straight binary. When low, the MSB is inverted resulting in a twos complement output from its internal shift register. 6 WARP DI2 Conversion Mode Selection. Used in conjunction with the IMPULSE input per the following:
Conversion Mode WARP IMPULSE
Normal Low Low Impulse Low High Warp High Low Normal High High See the Modes of Operation section for a more detailed description. 7 IMPULSE DI2 Conversion Mode Selection. See the WARP pin description in the previous row of this table. See the Modes of Operation section for a more detailed description. 8 SER/PAR DI Serial/Parallel Selection Input. When SER/PAR = low, the parallel mode is selected. When SER/PAR = high, the serial modes are selected. Some bits of the data bus are used as a serial port and the remaining data bits are high impedance outputs. 9, 10 NC DO No Connect. Do not connect. Rev. B | Page 8 of 32 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION OVERVIEW CONVERTER OPERATION MODES OF OPERATION Normal Mode Impulse Mode TRANSFER FUNCTIONS TYPICAL CONNECTION DIAGRAM ANALOG INPUTS Input Range Selection Input Structure VOLTAGE REFERENCE INPUT/OUTPUT Internal Reference (REF = 5 V) (PDREF = Low, PDBUF = Low) External 2.5 V Reference and Internal Buffer (REF = 5 V) (PDREF = High, PDBUF = Low) External 5 V Reference (PDREF = High, PDBUF = High) Reference Decoupling Temperature Sensor POWER SUPPLIES Core Supplies High Voltage Supplies Digital Output Supply Power Sequencing Power Dissipation vs. Throughput Power Down CONVERSION CONTROL INTERFACES DIGITAL INTERFACE RESET PARALLEL INTERFACE Master Parallel Interface Slave Parallel Interface 8-Bit Interface (Master or Slave) SERIAL INTERFACE Data Interface Serial Configuration Interface MASTER SERIAL INTERFACE Internal Clock (SER/PAR = High, EXT/INT = Low) Read During Convert (RDC = High) Read After Convert (RDC = Low, DIVSCLK[1:0] = [0 to 3]) SLAVE SERIAL INTERFACE External Clock (SER/PAR = High, EXT/INT = High) External Discontinuous Clock Data Read After Conversion Daisy-Chain Feature External Clock Data Read During Previous Conversion External Clock Data Read After/During Conversion HARDWARE CONFIGURATION SOFTWARE CONFIGURATION MICROPROCESSOR INTERFACING SPI Interface APPLICATION INFORMATION LAYOUT GUIDELINES OUTLINE DIMENSIONS ORDERING GUIDE
