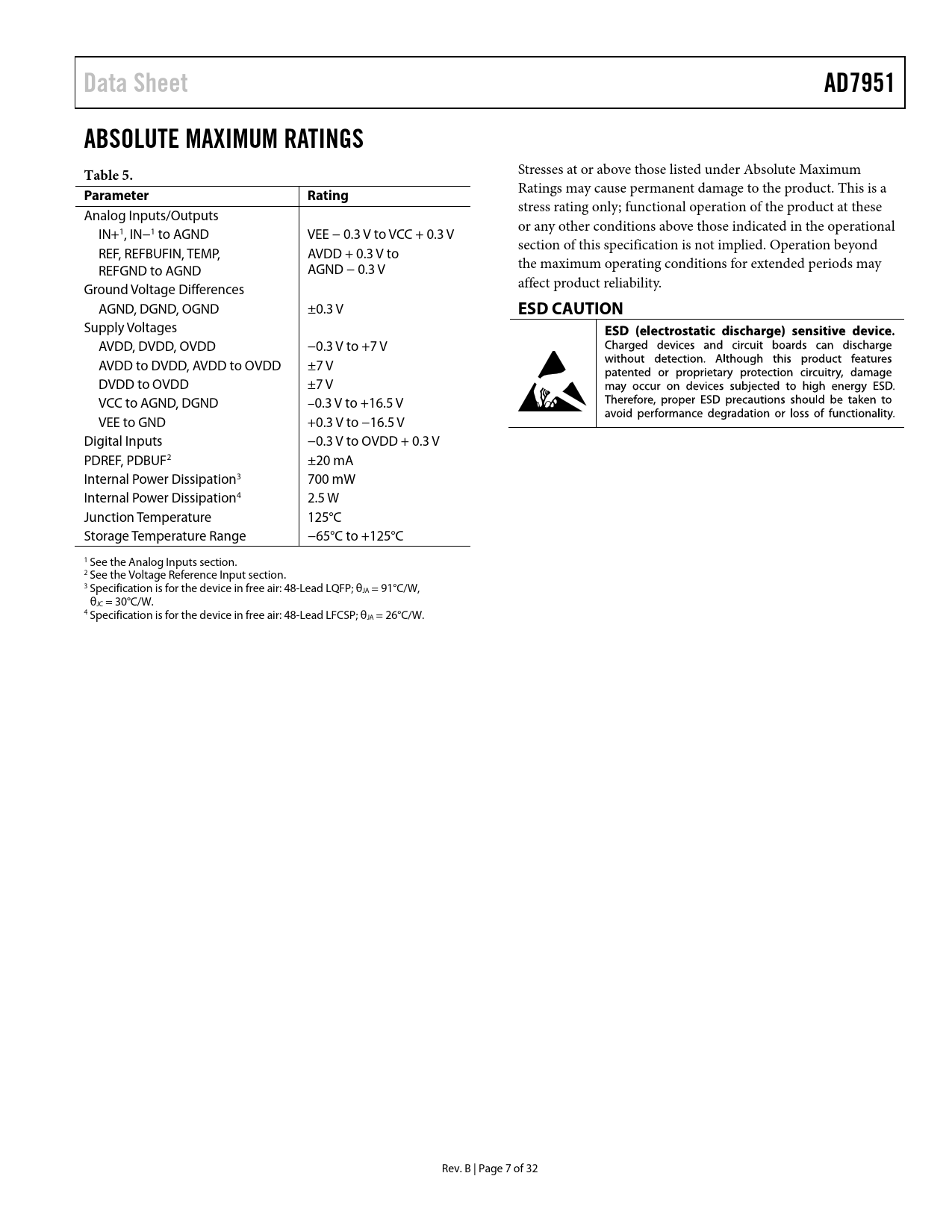

Data Sheet AD7951 ABSOLUTE MAXIMUM RATINGS Table 5.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Analog Inputs/Outputs or any other conditions above those indicated in the operational IN+1, IN−1 to AGND VEE − 0.3 V to VCC + 0.3 V section of this specification is not implied. Operation beyond REF, REFBUFIN, TEMP, AVDD + 0.3 V to REFGND to AGND AGND − 0.3 V the maximum operating conditions for extended periods may Ground Voltage Differences affect product reliability. AGND, DGND, OGND ±0.3 V
ESD CAUTION
Supply Voltages AVDD, DVDD, OVDD −0.3 V to +7 V AVDD to DVDD, AVDD to OVDD ±7 V DVDD to OVDD ±7 V VCC to AGND, DGND –0.3 V to +16.5 V VEE to GND +0.3 V to −16.5 V Digital Inputs −0.3 V to OVDD + 0.3 V PDREF, PDBUF2 ±20 mA Internal Power Dissipation3 700 mW Internal Power Dissipation4 2.5 W Junction Temperature 125°C Storage Temperature Range −65°C to +125°C 1 See the Analog Inputs section. 2 See the Voltage Reference Input section. 3 Specification is for the device in free air: 48-Lead LQFP; θJA = 91°C/W, θJC = 30°C/W. 4 Specification is for the device in free air: 48-Lead LFCSP; θJA = 26°C/W. Rev. B | Page 7 of 32 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION OVERVIEW CONVERTER OPERATION MODES OF OPERATION Normal Mode Impulse Mode TRANSFER FUNCTIONS TYPICAL CONNECTION DIAGRAM ANALOG INPUTS Input Range Selection Input Structure VOLTAGE REFERENCE INPUT/OUTPUT Internal Reference (REF = 5 V) (PDREF = Low, PDBUF = Low) External 2.5 V Reference and Internal Buffer (REF = 5 V) (PDREF = High, PDBUF = Low) External 5 V Reference (PDREF = High, PDBUF = High) Reference Decoupling Temperature Sensor POWER SUPPLIES Core Supplies High Voltage Supplies Digital Output Supply Power Sequencing Power Dissipation vs. Throughput Power Down CONVERSION CONTROL INTERFACES DIGITAL INTERFACE RESET PARALLEL INTERFACE Master Parallel Interface Slave Parallel Interface 8-Bit Interface (Master or Slave) SERIAL INTERFACE Data Interface Serial Configuration Interface MASTER SERIAL INTERFACE Internal Clock (SER/PAR = High, EXT/INT = Low) Read During Convert (RDC = High) Read After Convert (RDC = Low, DIVSCLK[1:0] = [0 to 3]) SLAVE SERIAL INTERFACE External Clock (SER/PAR = High, EXT/INT = High) External Discontinuous Clock Data Read After Conversion Daisy-Chain Feature External Clock Data Read During Previous Conversion External Clock Data Read After/During Conversion HARDWARE CONFIGURATION SOFTWARE CONFIGURATION MICROPROCESSOR INTERFACING SPI Interface APPLICATION INFORMATION LAYOUT GUIDELINES OUTLINE DIMENSIONS ORDERING GUIDE
