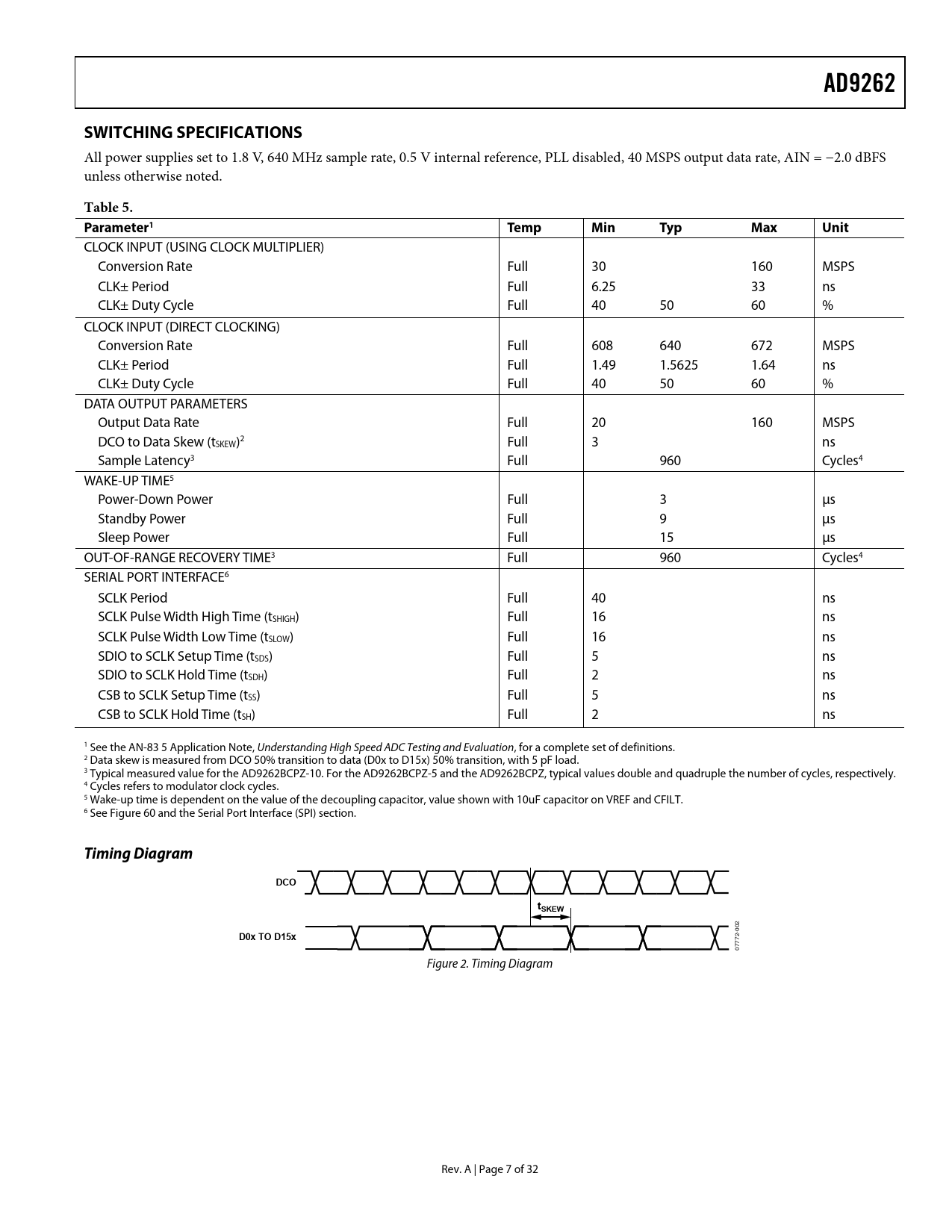

AD9262 SWITCHING SPECIFICATIONS
All power supplies set to 1.8 V, 640 MHz sample rate, 0.5 V internal reference, PLL disabled, 40 MSPS output data rate, AIN = −2.0 dBFS unless otherwise noted.
Table 5. Parameter1 T emp Min Typ Max Unit
CLOCK INPUT (USING CLOCK MULTIPLIER) Conversion Rate Full 30 160 MSPS CLK± Period Full 6.25 33 ns CLK± Duty Cycle Full 40 50 60 % CLOCK INPUT (DIRECT CLOCKING) Conversion Rate Full 608 640 672 MSPS CLK± Period Full 1.49 1.5625 1.64 ns CLK± Duty Cycle Full 40 50 60 % DATA OUTPUT PARAMETERS Output Data Rate Full 20 160 MSPS DCO to Data Skew (tSKEW)2 Full 3 ns Sample Latency3 Full 960 Cycles4 WAKE-UP TIME5 Power-Down Power Full 3 μs Standby Power Full 9 μs Sleep Power Full 15 μs OUT-OF-RANGE RECOVERY TIME3 Full 960 Cycles4 SERIAL PORT INTERFACE6 SCLK Period Full 40 ns SCLK Pulse Width High Time (tSHIGH) Full 16 ns SCLK Pulse Width Low Time (tSLOW) Full 16 ns SDIO to SCLK Setup Time (tSDS) Full 5 ns SDIO to SCLK Hold Time (tSDH) Full 2 ns CSB to SCLK Setup Time (tSS) Full 5 ns CSB to SCLK Hold Time (tSH) Full 2 ns 1 See the AN-83 5 Application Note, Understanding High Speed ADC Testing and Evaluation, for a complete set of definitions. 2 Data skew is measured from DCO 50% transition to data (D0x to D15x) 50% transition, with 5 pF load. 3 Typical measured value for the AD9262BCPZ-10. For the AD9262BCPZ-5 and the AD9262BCPZ, typical values double and quadruple the number of cycles, respectively. 4 Cycles refers to modulator clock cycles. 5 Wake-up time is dependent on the value of the decoupling capacitor, value shown with 10uF capacitor on VREF and CFILT. 6 See Figure 60 and the Serial Port Interface (SPI) section.
Timing Diagram DCO tSKEW
2 -00 2
D0x TO D15x
77 07 Figure 2. Timing Diagram Rev. A | Page 7 of 32 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Revision History Specifications DC Specifications AC Specifications Digital Decimation Filtering Characteristics Digital Specifications Switching Specifications Timing Diagram Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics AD9262BCPZ AD9262BCPZ-5 AD9262BCPZ-10 Equivalent Circuits Theory of Operation Analog Input Considerations Input Common Mode Differential Input Configurations Voltage Reference Internal Reference Connection External Reference Operation Clock Input Considerations Direct Clocking Internal PLL Clock Distribution PLL Autoband Select Jitter Considerations Power Dissipation and Standby Mode Digital Engine Bandwidth Selection Decimation Filters Sample Rate Converter Cascaded Filter Responses DC and Quadrature Error Correction (QEC) LO Leakage (DC) Correction QEC and DC Correction Range Digital Outputs Digital Output Format Interleaved Outputs Overrange (OR) Condition Timing Serial Port Interface (SPI) Configuration Using the SPI Hardware Interface Applications Information Filtering Requirement Memory Map Memory Map Definitions Outline Dimensions Ordering Guide
