Datasheet AD9628 (Analog Devices) - 8

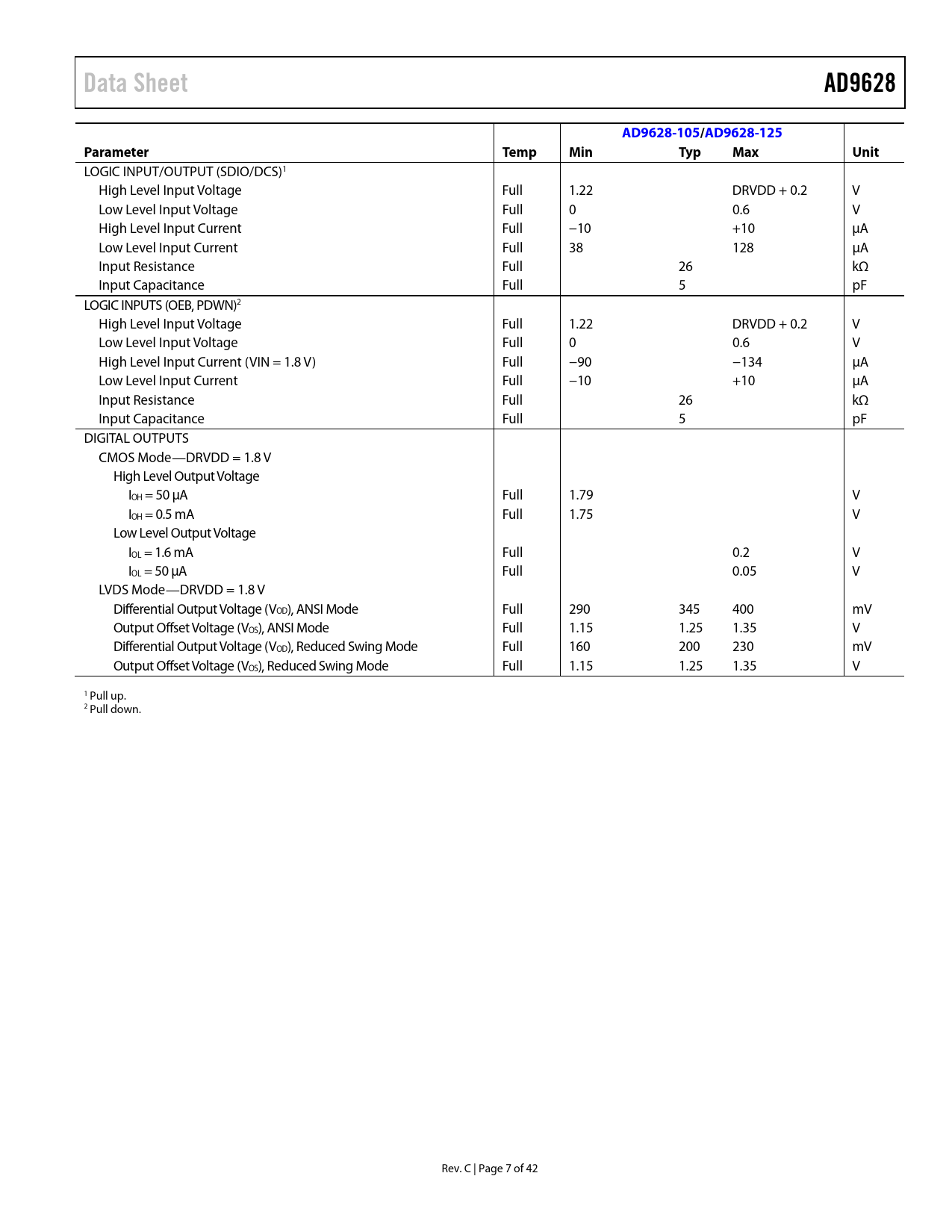

Data Sheet AD9628 AD9628-105/AD9628-125 Parameter Temp Min Typ Max Unit
LOGIC INPUT/OUTPUT (SDIO/DCS)1 High Level Input Voltage Full 1.22 DRVDD + 0.2 V Low Level Input Voltage Full 0 0.6 V High Level Input Current Full −10 +10 µA Low Level Input Current Full 38 128 µA Input Resistance Full 26 kΩ Input Capacitance Full 5 pF LOGIC INPUTS (OEB, PDWN)2 High Level Input Voltage Full 1.22 DRVDD + 0.2 V Low Level Input Voltage Full 0 0.6 V High Level Input Current (VIN = 1.8 V) Full −90 −134 µA Low Level Input Current Full −10 +10 µA Input Resistance Full 26 kΩ Input Capacitance Full 5 pF DIGITAL OUTPUTS CMOS Mode—DRVDD = 1.8 V High Level Output Voltage IOH = 50 µA Full 1.79 V IOH = 0.5 mA Full 1.75 V Low Level Output Voltage IOL = 1.6 mA Full 0.2 V IOL = 50 µA Full 0.05 V LVDS Mode—DRVDD = 1.8 V Differential Output Voltage (VOD), ANSI Mode Full 290 345 400 mV Output Offset Voltage (VOS), ANSI Mode Full 1.15 1.25 1.35 V Differential Output Voltage (VOD), Reduced Swing Mode Full 160 200 230 mV Output Offset Voltage (VOS), Reduced Swing Mode Full 1.15 1.25 1.35 V 1 Pul up. 2 Pull down. Rev. C | Page 7 of 42 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS DC SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS AD9628-125 AD9628-105 EQUIVALENT CIRCUITS THEORY OF OPERATION ADC ARCHITECTURE ANALOG INPUT CONSIDERATIONS Input Common Mode Differential Input Configurations VOLTAGE REFERENCE Internal Reference Connection External Reference Operation CLOCK INPUT CONSIDERATIONS Clock Input Options Input Clock Divider Clock Duty Cycle Jitter Considerations CHANNEL/CHIP SYNCHRONIZATION POWER DISSIPATION AND STANDBY MODE DIGITAL OUTPUTS Digital Output Enable Function (OEB) TIMING Data Clock Output (DCO) OUTPUT TEST OUTPUT TEST MODES SERIAL PORT INTERFACE (SPI) CONFIGURATION USING THE SPI HARDWARE INTERFACE CONFIGURATION WITHOUT THE SPI SPI ACCESSIBLE FEATURES MEMORY MAP READING THE MEMORY MAP REGISTER TABLE Open Locations Default Values Logic Levels Channel-Specific Registers MEMORY MAP REGISTER TABLE MEMORY MAP REGISTER DESCRIPTIONS Power Modes (Register 0x08) Bits[7:6]—Open Bits[1:0]—Internal Power-Down Mode Enhancement Control (Register 0x0C) Bits[7:3]—Open Bit 2—Chop Mode Bits[1:0]—Open Output Mode (Register 0x14) Bits[7:6]—Output Port Logic Type Bit 5—Output Interleave Enable Bit 4—Output Port Disable Sync Control (Register 0x3A) Bits[7:3]—Open Bit 2—Clock Divider Next Sync Only Bit 1—Clock Divider Sync Enable Bit 0—Open Transfer (Register 0xFF) Sample Rate Override (Register 0x100) User I/O Control 2 (Register 0x101) Bit 7—OEB Pin Enable Bits[6:1]—Open Bit 0—SDIO Pull-Down User I/O Control 3 (Register 0x102) Bits[7:4]—Open Bit 3—VCM Power-Down Bits[2:0]—Open APPLICATIONS INFORMATION DESIGN GUIDELINES Power and Ground Recommendations LVDS Operation Clock Stability Considerations Exposed Paddle Thermal Heat Slug Recommendations VCM Reference Decoupling SPI Port OUTLINE DIMENSIONS ORDERING GUIDE
