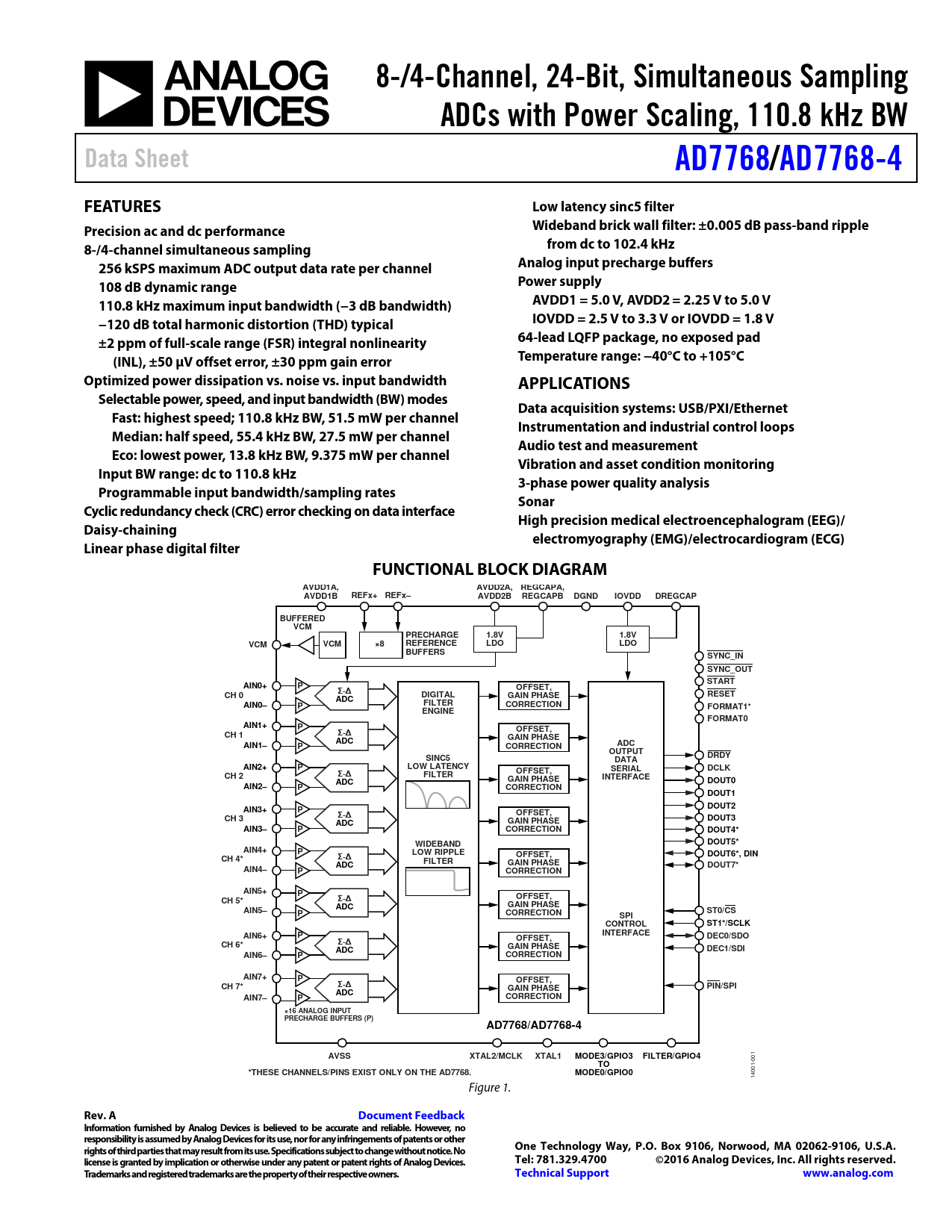

8-/4-Channel, 24-Bit, Simultaneous Sampling ADCs with Power Scaling, 110.8 kHz BW Data Sheet AD7768/ AD7768-4 FEATURES Low latency sinc5 filter Precision ac and dc performance Wideband brick wall filter: ±0.005 dB pass-band ripple 8-/4-channel simultaneous sampling from dc to 102.4 kHz 256 kSPS maximum ADC output data rate per channel Analog input precharge buffers 108 dB dynamic range Power supply 110.8 kHz maximum input bandwidth (−3 dB bandwidth) AVDD1 = 5.0 V, AVDD2 = 2.25 V to 5.0 V −120 dB total harmonic distortion (THD) typical IOVDD = 2.5 V to 3.3 V or IOVDD = 1.8 V ±2 ppm of full-scale range (FSR) integral nonlinearity 64-lead LQFP package, no exposed pad (INL), ±50 µV offset error, ±30 ppm gain error Temperature range: −40°C to +105°C Optimized power dissipation vs. noise vs. input bandwidth APPLICATIONS Selectable power, speed, and input bandwidth (BW) modes Data acquisition systems: USB/PXI/Ethernet Fast: highest speed; 110.8 kHz BW, 51.5 mW per channel Instrumentation and industrial control loops Median: half speed, 55.4 kHz BW, 27.5 mW per channel Audio test and measurement Eco: lowest power, 13.8 kHz BW, 9.375 mW per channel Vibration and asset condition monitoring Input BW range: dc to 110.8 kHz 3-phase power quality analysis Programmable input bandwidth/sampling rates Sonar Cyclic redundancy check (CRC) error checking on data interface High precision medical electroencephalogram (EEG)/ Daisy-chaining electromyography (EMG)/electrocardiogram (ECG) Linear phase digital filter FUNCTIONAL BLOCK DIAGRAM AVDD1A, AVDD2A, REGCAPA, AVDD1B REFx+ REFx– AVDD2B REGCAPB DGND IOVDD DREGCAP BUFFERED VCM PRECHARGE 1.8V 1.8V VCM ×8 REFERENCE LDO LDO VCM BUFFERS SYNC_IN SYNC_OUT START AIN0+ P Σ-Δ OFFSET, CH 0 DIGITAL RESET ADC GAIN PHASE FILTER AIN0– P CORRECTION FORMAT1* ENGINE FORMAT0 AIN1+ P OFFSET, CH 1 Σ-Δ ADC GAIN PHASE ADC AIN1– P CORRECTION OUTPUT SINC5 DRDY DATA AIN2+ P LOW LATENCY SERIAL DCLK OFFSET, CH 2 Σ-Δ FILTER INTERFACE ADC GAIN PHASE DOUT0 AIN2– P CORRECTION DOUT1 AIN3+ DOUT2 P Σ-Δ OFFSET, CH 3 DOUT3 ADC GAIN PHASE AIN3– P CORRECTION DOUT4* WIDEBAND DOUT5* AIN4+ P LOW RIPPLE OFFSET, DOUT6*, DIN CH 4* Σ-Δ FILTER ADC GAIN PHASE DOUT7* AIN4– P CORRECTION AIN5+ P OFFSET, CH 5* Σ-Δ GAIN PHASE AIN5– ADC ST0/CS P CORRECTION SPI CONTROL ST1*/SCLK INTERFACE AIN6+ P DEC0/SDO Σ-Δ OFFSET, CH 6* GAIN PHASE DEC1/SDI ADC AIN6– P CORRECTION AIN7+ P OFFSET, CH 7* Σ-Δ PIN/SPI GAIN PHASE ADC AIN7– P CORRECTION ×16 ANALOG INPUT PRECHARGE BUFFERS (P) AD7768/AD7768-4 AVSS XTAL2/MCLK XTAL1 MODE3/GPIO3 FILTER/GPIO4
001
TO *THESE CHANNELS/PINS EXIST ONLY ON THE AD7768. MODE0/GPIO0
14001- Figure 1.
