Datasheet AD7616-P (Analog Devices) - 8

Data Sheet AD7616-P tRESET_WAIT tDEVICE_SETUP VCC VDRIVE RESET tRESET_LOW CONVST BUSY tWRITE CS tRESET_SETUP tRESET_HOLD REFSEL ALL MODES HW_RNGSEL0, HW_RNGSEL1 MODE RANGE SETTING IN HW MODE BURST, SEQEN HARDWARE CHSEL0 TO CH CH CH MODE ONLY CHSEL2 X Y Z
003
ADC ACTION ACQX CONVX ACQY CONVY

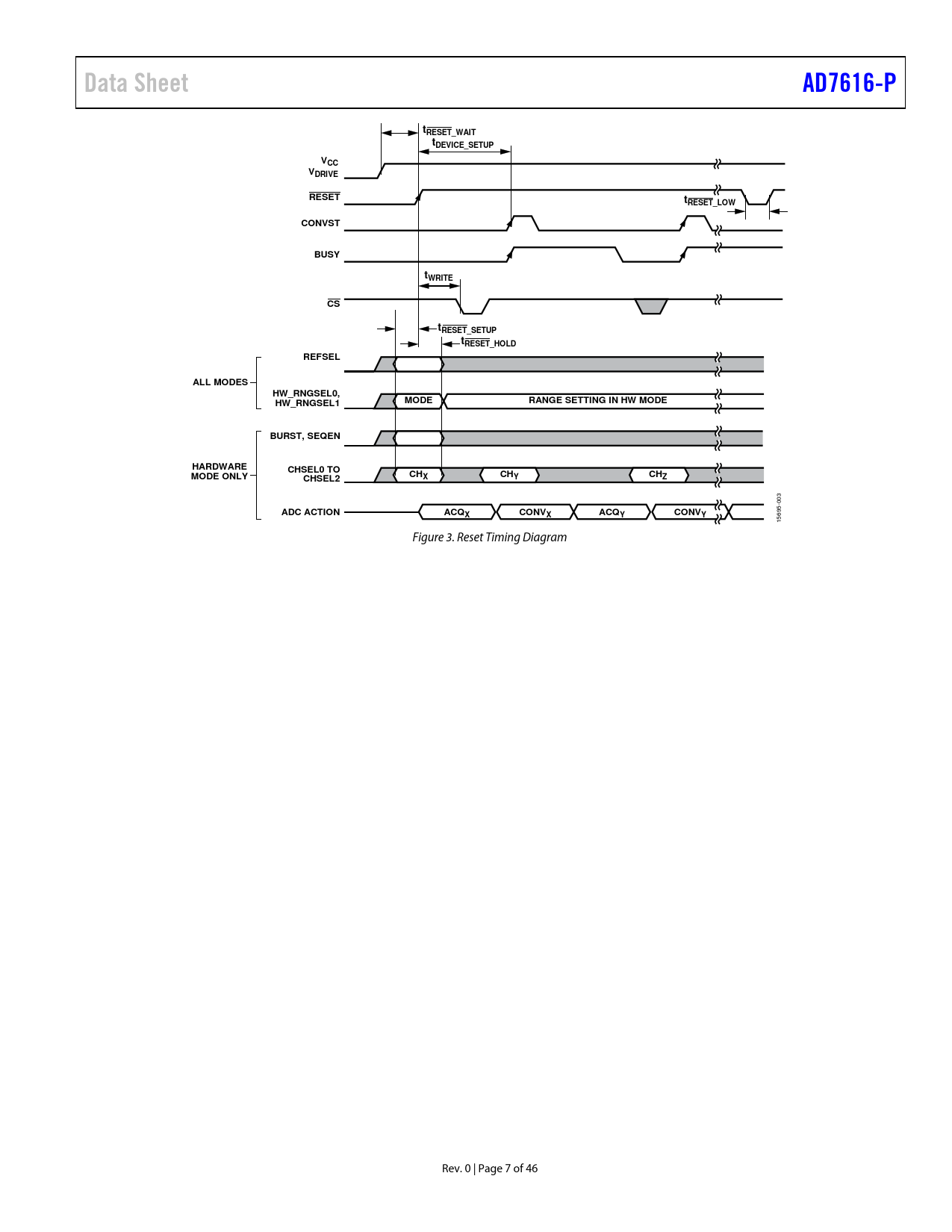

15695- Figure 3. Reset Timing Diagram Rev. 0 | Page 7 of 46 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS Universal Timing Specifications Parallel Interface Timing Specifications ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION CONVERTER DETAILS ANALOG INPUT Analog Input Channel Selection Analog Input Ranges Analog Input Impedance Analog Input Clamp Protection Analog Input Antialiasing Filter ADC TRANSFER FUNCTION INTERNAL/EXTERNAL REFERENCE SHUTDOWN MODE DIGITAL FILTER APPLICATIONS INFORMATION FUNCTIONALITY OVERVIEW POWER SUPPLIES TYPICAL CONNECTIONS DEVICE CONFIGURATION OPERATIONAL MODE INTERNAL/EXTERNAL REFERENCE HARDWARE MODE SOFTWARE MODE RESET FUNCTIONALITY PIN FUNCTION OVERVIEW DIGITAL INTERFACE CHANNEL SELECTION Hardware Mode Software Mode PARALLEL INTERFACE Reading Conversion Results Writing Register Data Reading Register Data SEQUENCER HARDWARE MODE SEQUENCER SOFTWARE MODE SEQUENCER BURST SEQUENCER Hardware Mode Burst Software Mode Burst DIAGNOSTICS DIAGNOSTIC CHANNELS INTERFACE SELF TEST CRC REGISTER SUMMARY ADDRESSING REGISTERS CONFIGURATION REGISTER CHANNEL REGISTER INPUT RANGE REGISTERS Input Range Register A1 Input Range Register A2 Input Range Register B1 Input Range Register B2 SEQUENCER STACK REGISTERS Sequencer Stack Register 0 to Sequencer Stack Register 7 Sequencer Stack Register 8 to Sequencer Stack Register 31 STATUS REGISTER OUTLINE DIMENSIONS ORDERING GUIDE
