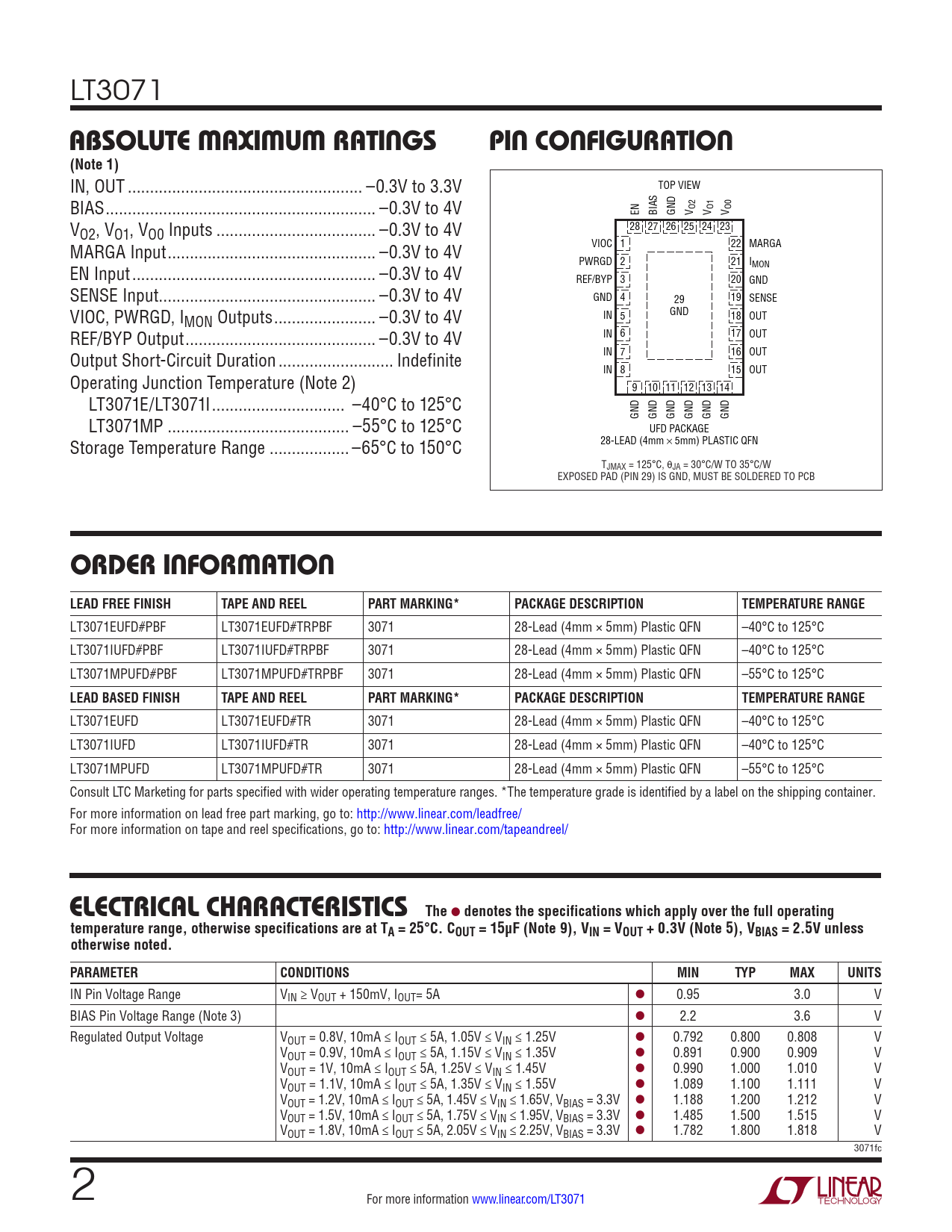

LT3071 ABSOLUTE MAXIMUM RATINGSPIN CONFIGURATION(Note 1) IN, OUT ... –0.3V to 3.3V TOP VIEW BIAS ... –0.3V to 4V EN BIAS GND V O2 V O1 V O0 VO2, VO1, VO0 Inputs .. –0.3V to 4V 28 27 26 25 24 23 MARGA Input ... –0.3V to 4V VIOC 1 22 MARGA PWRGD EN Input ... –0.3V to 4V 2 21 IMON REF/BYP 3 20 GND SENSE Input ... –0.3V to 4V GND 4 29 19 SENSE VIOC, PWRGD, I GND MON Outputs ... –0.3V to 4V IN 5 18 OUT REF/BYP Output ... –0.3V to 4V IN 6 17 OUT Output Short-Circuit Duration .. Indefinite IN 7 16 OUT IN 8 15 OUT Operating Junction Temperature (Note 2) 9 10 11 12 13 14 LT3071E/LT3071I .. –40°C to 125°C LT3071MP ... –55°C to 125°C GND GND GND GND GND GND UFD PACKAGE Storage Temperature Range .. –65°C to 150°C 28-LEAD (4mm × 5mm) PLASTIC QFN TJMAX = 125°C, θJA = 30°C/W TO 35°C/W EXPOSED PAD (PIN 29) IS GND, MUST BE SOLDERED TO PCB ORDER INFORMATION LEAD FREE FINISHTAPE AND REELPART MARKING*PACKAGE DESCRIPTIONTEMPERATURE RANGE LT3071EUFD#PBF LT3071EUFD#TRPBF 3071 28-Lead (4mm × 5mm) Plastic QFN –40°C to 125°C LT3071IUFD#PBF LT3071IUFD#TRPBF 3071 28-Lead (4mm × 5mm) Plastic QFN –40°C to 125°C LT3071MPUFD#PBF LT3071MPUFD#TRPBF 3071 28-Lead (4mm × 5mm) Plastic QFN –55°C to 125°C LEAD BASED FINISHTAPE AND REELPART MARKING*PACKAGE DESCRIPTIONTEMPERATURE RANGE LT3071EUFD LT3071EUFD#TR 3071 28-Lead (4mm × 5mm) Plastic QFN –40°C to 125°C LT3071IUFD LT3071IUFD#TR 3071 28-Lead (4mm × 5mm) Plastic QFN –40°C to 125°C LT3071MPUFD LT3071MPUFD#TR 3071 28-Lead (4mm × 5mm) Plastic QFN –55°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ ELECTRICALCHARACTERISTICS The l denotes the specifications which apply over the full operatingtemperature range, otherwise specifications are at TA = 25°C. COUT = 15µF (Note 9), VIN = VOUT + 0.3V (Note 5), VBIAS = 2.5V unlessotherwise noted.PARAMETERCONDITIONSMINTYPMAXUNITS IN Pin Voltage Range VIN ≥ VOUT + 150mV, IOUT= 5A l 0.95 3.0 V BIAS Pin Voltage Range (Note 3) l 2.2 3.6 V Regulated Output Voltage VOUT = 0.8V, 10mA ≤ IOUT ≤ 5A, 1.05V ≤ VIN ≤ 1.25V l 0.792 0.800 0.808 V VOUT = 0.9V, 10mA ≤ IOUT ≤ 5A, 1.15V ≤ VIN ≤ 1.35V l 0.891 0.900 0.909 V VOUT = 1V, 10mA ≤ IOUT ≤ 5A, 1.25V ≤ VIN ≤ 1.45V l 0.990 1.000 1.010 V VOUT = 1.1V, 10mA ≤ IOUT ≤ 5A, 1.35V ≤ VIN ≤ 1.55V l 1.089 1.100 1.111 V VOUT = 1.2V, 10mA ≤ IOUT ≤ 5A, 1.45V ≤ VIN ≤ 1.65V, VBIAS = 3.3V l 1.188 1.200 1.212 V VOUT = 1.5V, 10mA ≤ IOUT ≤ 5A, 1.75V ≤ VIN ≤ 1.95V, VBIAS = 3.3V l 1.485 1.500 1.515 V VOUT = 1.8V, 10mA ≤ IOUT ≤ 5A, 2.05V ≤ VIN ≤ 2.25V, VBIAS = 3.3V l 1.782 1.800 1.818 V 3071fc 2 For more information www.linear.com/LT3071 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Package Description Revision History Typical Application Related Parts
