Datasheet LTC2201 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | 16-Bit, 20Msps ADC |
| Seiten / Seite | 24 / 4 — The. DYNAMIC ACCURACY. denotes the specifi cations which apply over the … |
| Dateiformat / Größe | PDF / 1.1 Mb |
| Dokumentensprache | Englisch |
The. DYNAMIC ACCURACY. denotes the specifi cations which apply over the full operating temperature range,
Modelllinie für dieses Datenblatt
Textversion des Dokuments

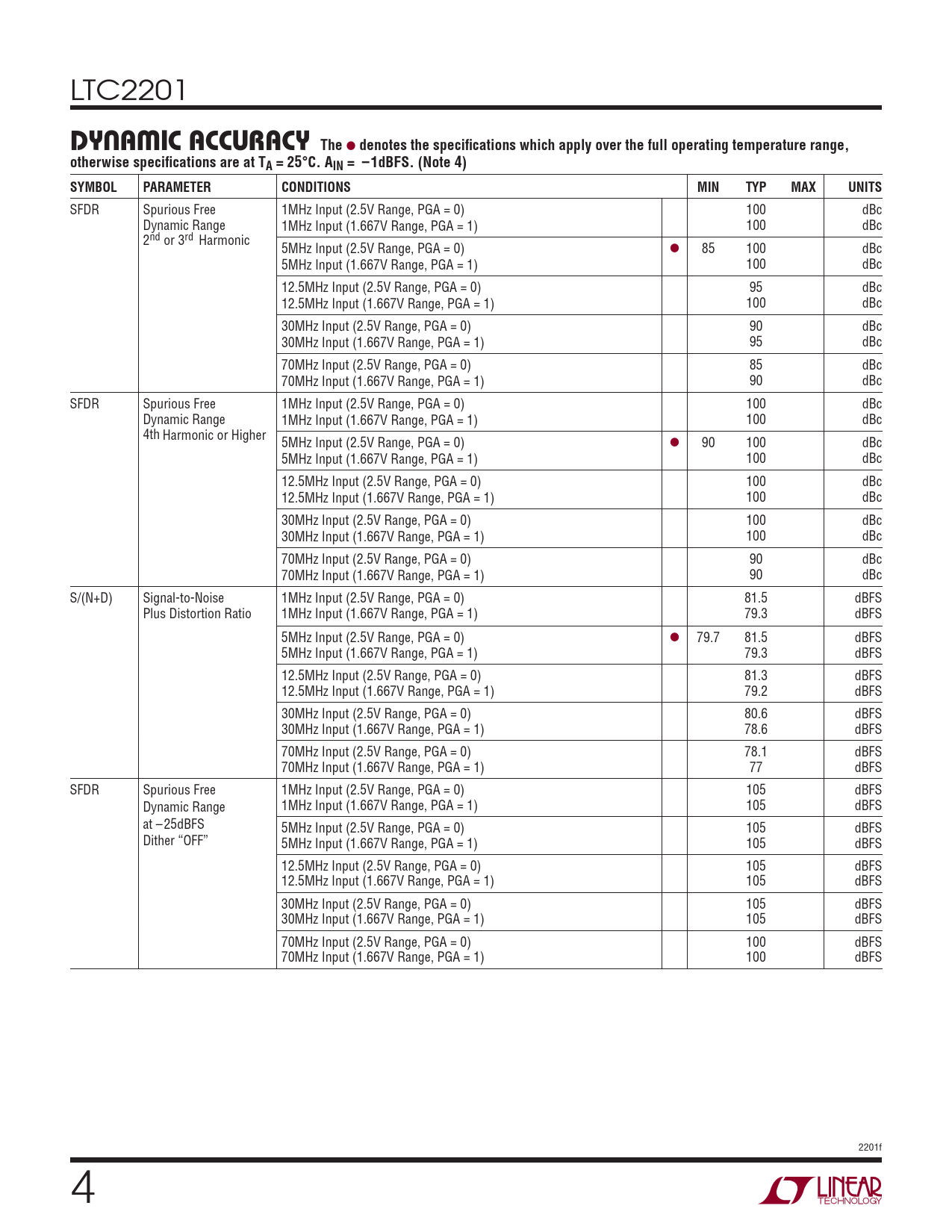

LTC2201
The DYNAMIC ACCURACY
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. AIN = –1dBFS. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SFDR Spurious Free 1MHz Input (2.5V Range, PGA = 0) 100 dBc Dynamic Range 1MHz Input (1.667V Range, PGA = 1) 100 dBc 2nd or 3rd Harmonic 5MHz Input (2.5V Range, PGA = 0) l 85 100 dBc 5MHz Input (1.667V Range, PGA = 1) 100 dBc 12.5MHz Input (2.5V Range, PGA = 0) 95 dBc 12.5MHz Input (1.667V Range, PGA = 1) 100 dBc 30MHz Input (2.5V Range, PGA = 0) 90 dBc 30MHz Input (1.667V Range, PGA = 1) 95 dBc 70MHz Input (2.5V Range, PGA = 0) 85 dBc 70MHz Input (1.667V Range, PGA = 1) 90 dBc SFDR Spurious Free 1MHz Input (2.5V Range, PGA = 0) 100 dBc Dynamic Range 1MHz Input (1.667V Range, PGA = 1) 100 dBc 4th Harmonic or Higher 5MHz Input (2.5V Range, PGA = 0) l 90 100 dBc 5MHz Input (1.667V Range, PGA = 1) 100 dBc 12.5MHz Input (2.5V Range, PGA = 0) 100 dBc 12.5MHz Input (1.667V Range, PGA = 1) 100 dBc 30MHz Input (2.5V Range, PGA = 0) 100 dBc 30MHz Input (1.667V Range, PGA = 1) 100 dBc 70MHz Input (2.5V Range, PGA = 0) 90 dBc 70MHz Input (1.667V Range, PGA = 1) 90 dBc S/(N+D) Signal-to-Noise 1MHz Input (2.5V Range, PGA = 0) 81.5 dBFS Plus Distortion Ratio 1MHz Input (1.667V Range, PGA = 1) 79.3 dBFS 5MHz Input (2.5V Range, PGA = 0) l 79.7 81.5 dBFS 5MHz Input (1.667V Range, PGA = 1) 79.3 dBFS 12.5MHz Input (2.5V Range, PGA = 0) 81.3 dBFS 12.5MHz Input (1.667V Range, PGA = 1) 79.2 dBFS 30MHz Input (2.5V Range, PGA = 0) 80.6 dBFS 30MHz Input (1.667V Range, PGA = 1) 78.6 dBFS 70MHz Input (2.5V Range, PGA = 0) 78.1 dBFS 70MHz Input (1.667V Range, PGA = 1) 77 dBFS SFDR Spurious Free 1MHz Input (2.5V Range, PGA = 0) 105 dBFS Dynamic Range 1MHz Input (1.667V Range, PGA = 1) 105 dBFS at –25dBFS 5MHz Input (2.5V Range, PGA = 0) 105 dBFS Dither “OFF” 5MHz Input (1.667V Range, PGA = 1) 105 dBFS 12.5MHz Input (2.5V Range, PGA = 0) 105 dBFS 12.5MHz Input (1.667V Range, PGA = 1) 105 dBFS 30MHz Input (2.5V Range, PGA = 0) 105 dBFS 30MHz Input (1.667V Range, PGA = 1) 105 dBFS 70MHz Input (2.5V Range, PGA = 0) 100 dBFS 70MHz Input (1.667V Range, PGA = 1) 100 dBFS 2201f 4
The DYNAMIC ACCURACY
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. AIN = –1dBFS. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SFDR Spurious Free 1MHz Input (2.5V Range, PGA = 0) 100 dBc Dynamic Range 1MHz Input (1.667V Range, PGA = 1) 100 dBc 2nd or 3rd Harmonic 5MHz Input (2.5V Range, PGA = 0) l 85 100 dBc 5MHz Input (1.667V Range, PGA = 1) 100 dBc 12.5MHz Input (2.5V Range, PGA = 0) 95 dBc 12.5MHz Input (1.667V Range, PGA = 1) 100 dBc 30MHz Input (2.5V Range, PGA = 0) 90 dBc 30MHz Input (1.667V Range, PGA = 1) 95 dBc 70MHz Input (2.5V Range, PGA = 0) 85 dBc 70MHz Input (1.667V Range, PGA = 1) 90 dBc SFDR Spurious Free 1MHz Input (2.5V Range, PGA = 0) 100 dBc Dynamic Range 1MHz Input (1.667V Range, PGA = 1) 100 dBc 4th Harmonic or Higher 5MHz Input (2.5V Range, PGA = 0) l 90 100 dBc 5MHz Input (1.667V Range, PGA = 1) 100 dBc 12.5MHz Input (2.5V Range, PGA = 0) 100 dBc 12.5MHz Input (1.667V Range, PGA = 1) 100 dBc 30MHz Input (2.5V Range, PGA = 0) 100 dBc 30MHz Input (1.667V Range, PGA = 1) 100 dBc 70MHz Input (2.5V Range, PGA = 0) 90 dBc 70MHz Input (1.667V Range, PGA = 1) 90 dBc S/(N+D) Signal-to-Noise 1MHz Input (2.5V Range, PGA = 0) 81.5 dBFS Plus Distortion Ratio 1MHz Input (1.667V Range, PGA = 1) 79.3 dBFS 5MHz Input (2.5V Range, PGA = 0) l 79.7 81.5 dBFS 5MHz Input (1.667V Range, PGA = 1) 79.3 dBFS 12.5MHz Input (2.5V Range, PGA = 0) 81.3 dBFS 12.5MHz Input (1.667V Range, PGA = 1) 79.2 dBFS 30MHz Input (2.5V Range, PGA = 0) 80.6 dBFS 30MHz Input (1.667V Range, PGA = 1) 78.6 dBFS 70MHz Input (2.5V Range, PGA = 0) 78.1 dBFS 70MHz Input (1.667V Range, PGA = 1) 77 dBFS SFDR Spurious Free 1MHz Input (2.5V Range, PGA = 0) 105 dBFS Dynamic Range 1MHz Input (1.667V Range, PGA = 1) 105 dBFS at –25dBFS 5MHz Input (2.5V Range, PGA = 0) 105 dBFS Dither “OFF” 5MHz Input (1.667V Range, PGA = 1) 105 dBFS 12.5MHz Input (2.5V Range, PGA = 0) 105 dBFS 12.5MHz Input (1.667V Range, PGA = 1) 105 dBFS 30MHz Input (2.5V Range, PGA = 0) 105 dBFS 30MHz Input (1.667V Range, PGA = 1) 105 dBFS 70MHz Input (2.5V Range, PGA = 0) 100 dBFS 70MHz Input (1.667V Range, PGA = 1) 100 dBFS 2201f 4
