LTC1283

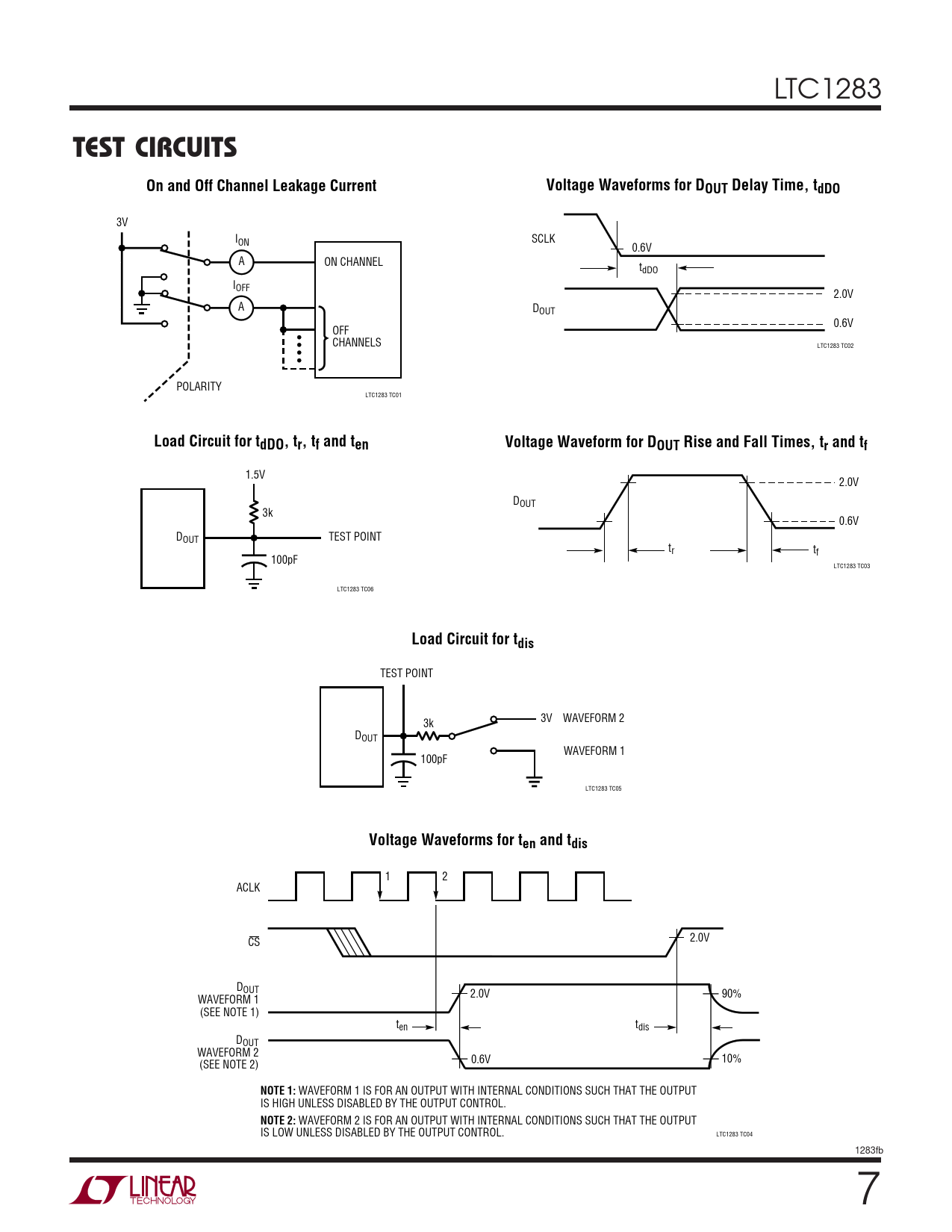

TEST CIRCUITS On and Off Channel Leakage Current Voltage Waveforms for DOUT Delay Time, tdDO
3V ION SCLK 0.6V A ON CHANNEL tdDO IOFF 2.0V A DOUT 0.6V OFF CHANNELS LTC1283 TC02 POLARITY LTC1283 TC01
Load Circuit for tdDO, tr, tf and ten Voltage Waveform for DOUT Rise and Fall Times, tr and tf
1.5V 2.0V DOUT 3k 0.6V DOUT TEST POINT tr tf 100pF LTC1283 TC03 LTC1283 TC06
Load Circuit for tdis
TEST POINT 3V WAVEFORM 2 3k DOUT WAVEFORM 1 100pF LTC1283 TC05
Voltage Waveforms for ten and tdis
1 2 ACLK CS 2.0V DOUT 2.0V 90% WAVEFORM 1 (SEE NOTE 1) t t en dis DOUT WAVEFORM 2 0.6V 10% (SEE NOTE 2)
NOTE 1:
WAVEFORM 1 IS FOR AN OUTPUT WITH INTERNAL CONDITIONS SUCH THAT THE OUTPUT IS HIGH UNLESS DISABLED BY THE OUTPUT CONTROL.
NOTE 2:
WAVEFORM 2 IS FOR AN OUTPUT WITH INTERNAL CONDITIONS SUCH THAT THE OUTPUT IS LOW UNLESS DISABLED BY THE OUTPUT CONTROL. LTC1283 TC04 1283fb 7
