BeschreibungHigh Speed, Low Power Monolithic Op Amp
Seiten / Seite14 / 5 — AD847. Model. AD847AQ. AD847S. Conditions. Min. Typ. Max. Units. 7.5. …
RevisionF
Dateiformat / GrößePDF / 281 Kb
DokumentenspracheEnglisch

AD847. Model. AD847AQ. AD847S. Conditions. Min. Typ. Max. Units. 7.5. 300. 400. 1.5. 3.0. 2.5. 4.5. 5.7. 7.0. 7.8. 6.3. 7.6. 8.4

AD847 Model AD847AQ AD847S Conditions Min Typ Max Units 7.5 300 400 1.5 3.0 2.5 4.5 5.7 7.0 7.8 6.3 7.6 8.4

Modelllinie für dieses Datenblatt

Textversion des Dokuments

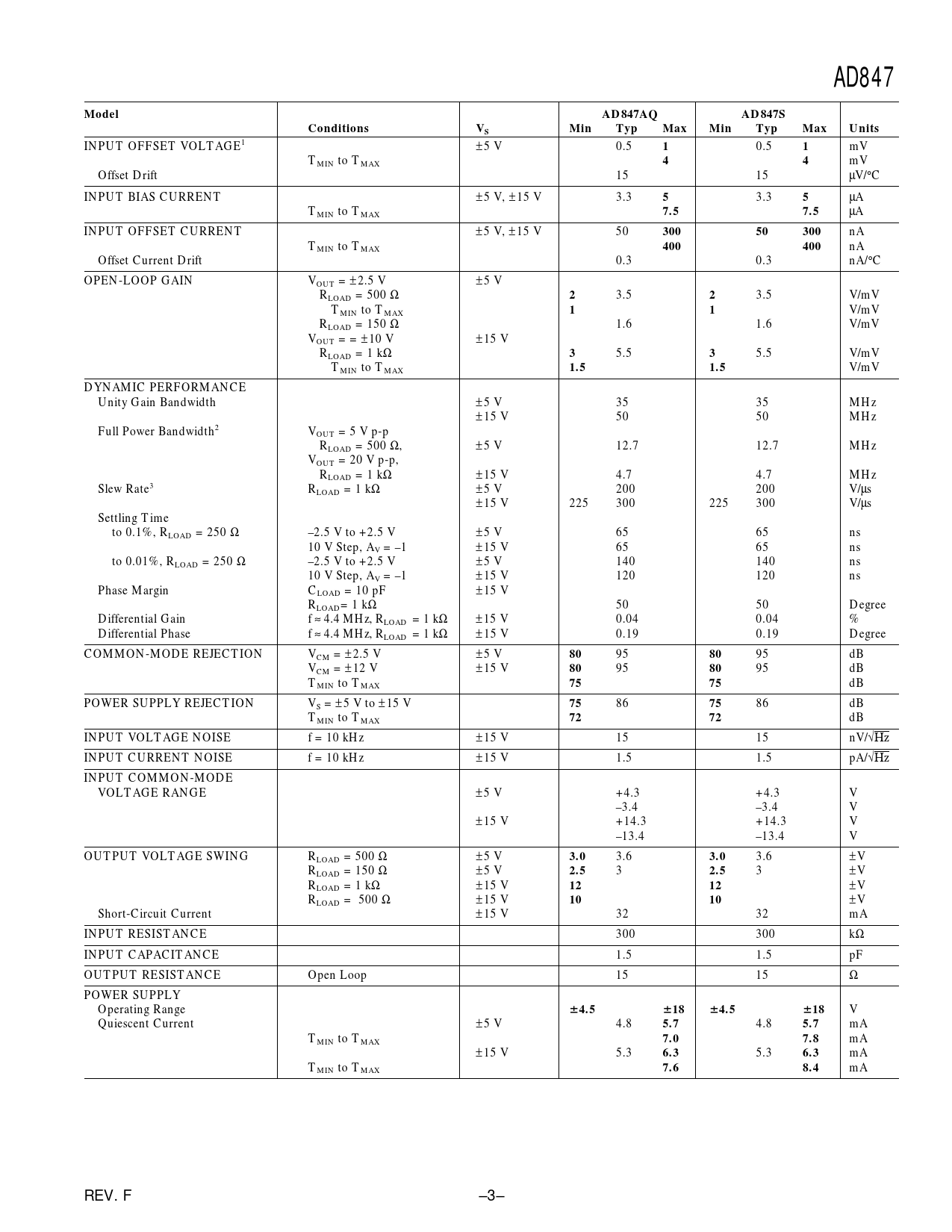

AD847 Model AD847AQ AD847S Conditions VS Min Typ Max Min Typ Max Units
INPUT OFFSET VOLTAGE1 ±5 V 0.5
1
0.5
1
mV TMIN to TMAX
4 4
mV Offset Drift 15 15 µV/°C INPUT BIAS CURRENT ±5 V, ±15 V 3.3
5
3.3
5
µA TMIN to TMAX
7.5 7.5
µA INPUT OFFSET CURRENT ±5 V, ±15 V 50
300 50 300
nA TMIN to TMAX
400 400
nA Offset Current Drift 0.3 0.3 nA/°C OPEN-LOOP GAIN VOUT = ± 2.5 V ±5 V RLOAD = 500 Ω
2
3.5
2
3.5 V/mV TMIN to TMAX
1 1
V/mV RLOAD = 150 Ω 1.6 1.6 V/mV VOUT = = ± 10 V ±15 V RLOAD = 1 kΩ
3
5.5
3
5.5 V/mV TMIN to TMAX
1.5 1.5
V/mV DYNAMIC PERFORMANCE Unity Gain Bandwidth ±5 V 35 35 MHz ±15 V 50 50 MHz Full Power Bandwidth2 VOUT = 5 V p-p RLOAD = 500 Ω, ±5 V 12.7 12.7 MHz VOUT = 20 V p-p, RLOAD = 1 kΩ ±15 V 4.7 4.7 MHz Slew Rate3 RLOAD = 1 kΩ ±5 V 200 200 V/µs ±15 V 225 300 225 300 V/µs Settling Time to 0.1%, RLOAD = 250 Ω –2.5 V to +2.5 V ±5 V 65 65 ns 10 V Step, AV = –1 ±15 V 65 65 ns to 0.01%, RLOAD = 250 Ω –2.5 V to +2.5 V ±5 V 140 140 ns 10 V Step, AV = –1 ±15 V 120 120 ns Phase Margin CLOAD = 10 pF ±15 V RLOAD= 1 kΩ 50 50 Degree Differential Gain f ≈ 4.4 MHz, RLOAD = 1 kΩ ±15 V 0.04 0.04 % Differential Phase f ≈ 4.4 MHz, RLOAD = 1 kΩ ±15 V 0.19 0.19 Degree COMMON-MODE REJECTION VCM = ± 2.5 V ±5 V
80
95
80
95 dB VCM = ± 12 V ±15 V
80
95
80
95 dB TMIN to TMAX
75 75
dB POWER SUPPLY REJECTION VS = ± 5 V to ± 15 V
75
86
75
86 dB TMIN to TMAX
72 72
dB INPUT VOLTAGE NOISE f = 10 kHz ±15 V 15 15 nV/√Hz INPUT CURRENT NOISE f = 10 kHz ±15 V 1.5 1.5 pA/√Hz INPUT COMMON-MODE VOLTAGE RANGE ±5 V +4.3 +4.3 V –3.4 –3.4 V ±15 V +14.3 +14.3 V –13.4 –13.4 V OUTPUT VOLTAGE SWING RLOAD = 500 Ω ±5 V
3.0
3.6
3.0
3.6 ±V RLOAD = 150 Ω ±5 V
2.5
3
2.5
3 ±V RLOAD = 1 kΩ ±15 V
12 12
±V RLOAD = 500 Ω ±15 V
10 10
±V Short-Circuit Current ±15 V 32 32 mA INPUT RESISTANCE 300 300 kΩ INPUT CAPACITANCE 1.5 1.5 pF OUTPUT RESISTANCE Open Loop 15 15 Ω POWER SUPPLY Operating Range 6
4.5
6
18
6
4.5
6
18
V Quiescent Current ±5 V 4.8
5.7
4.8
5.7
mA TMIN to TMAX
7.0 7.8
mA ±15 V 5.3
6.3
5.3
6.3
mA TMIN to TMAX
7.6 8.4
mA REV. F –3–
