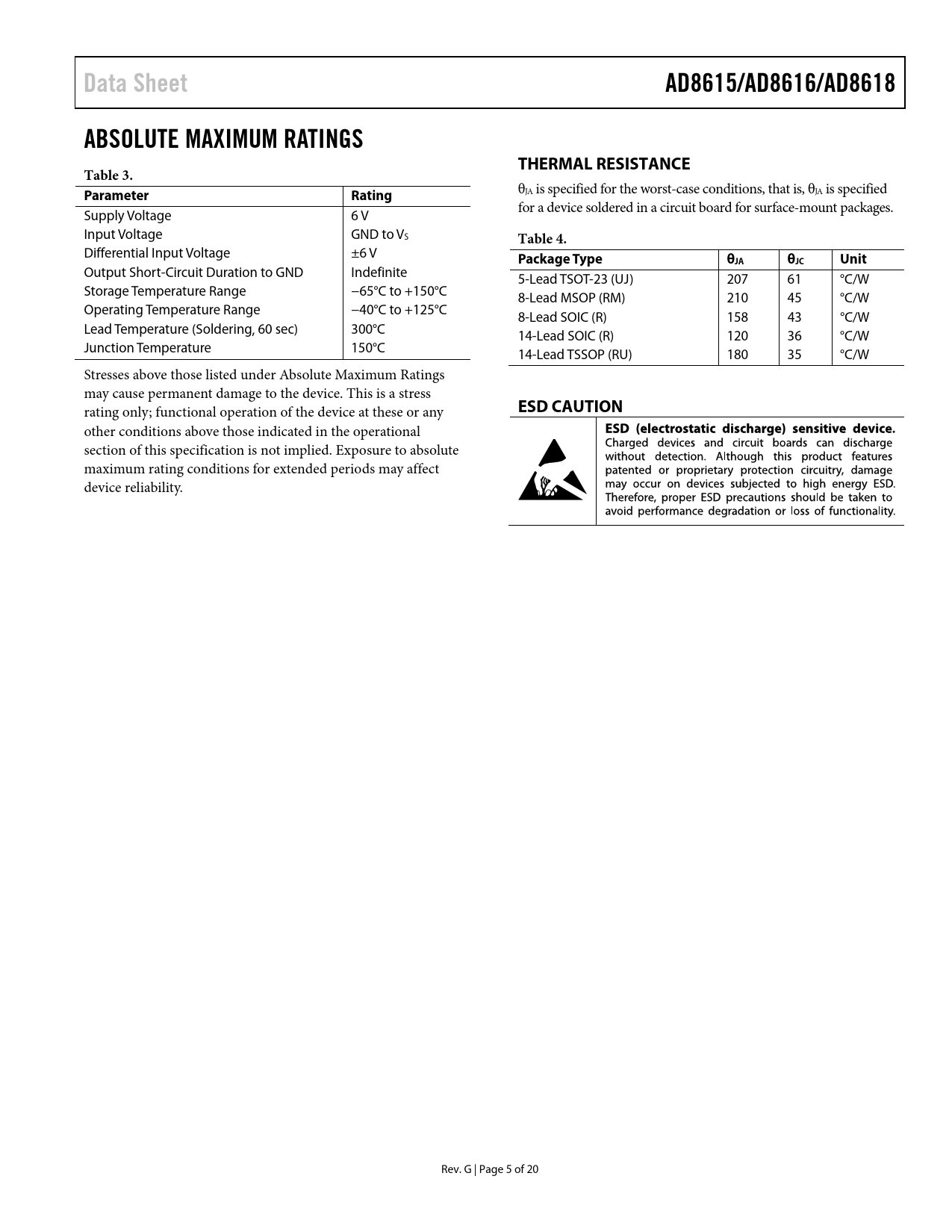

Data Sheet AD8615/AD8616/AD8618 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 3. Parameter Rating
θJA is specified for the worst-case conditions, that is, θJA is specified Supply Voltage 6 V for a device soldered in a circuit board for surface-mount packages. Input Voltage GND to VS
Table 4.
Differential Input Voltage ±6 V
Package Type θJA θJC Unit
Output Short-Circuit Duration to GND Indefinite 5-Lead TSOT-23 (UJ) 207 61 °C/W Storage Temperature Range −65°C to +150°C 8-Lead MSOP (RM) 210 45 °C/W Operating Temperature Range −40°C to +125°C 8-Lead SOIC (R) 158 43 °C/W Lead Temperature (Soldering, 60 sec) 300°C 14-Lead SOIC (R) 120 36 °C/W Junction Temperature 150°C 14-Lead TSSOP (RU) 180 35 °C/W Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any
ESD CAUTION
other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. G | Page 5 of 20 Document Outline Features Applications General Description Pin Configuration Table of Contents Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Applications Information Input Overvoltage Protection Output Phase Reversal Driving Capacitive Loads Overload Recovery Time D/A Conversion Low Noise Applications High Speed Photodiode Preamplifier Active Filters Power Dissipation Power Calculations for Varying or Unknown Loads Calculating Power by Measuring Ambient Temperature and Case Temperature Calculating Power by Measuring Supply Current Outline Dimensions Ordering Guide
