Datasheet AD8615, AD8616, AD8618 (Analog Devices) - 4

HerstellerAnalog Devices
BeschreibungPrecision 20 MHz CMOS Single RRIO Operational Amplifier
Seiten / Seite20 / 4 — AD8615/AD8616/AD8618. Data Sheet. Table 2. Parameter. Symbol. Conditions. …
RevisionG
Dateiformat / GrößePDF / 453 Kb
DokumentenspracheEnglisch

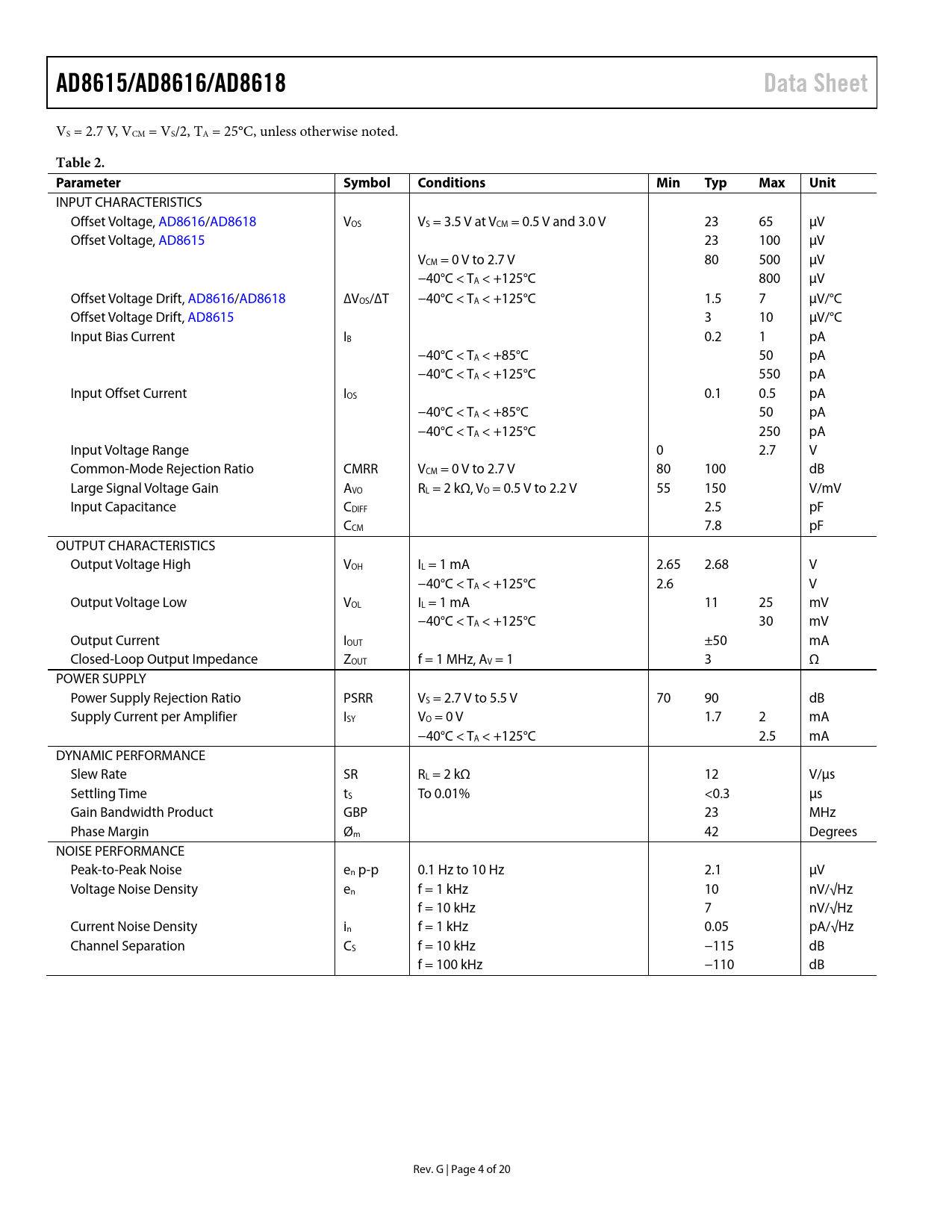

AD8615/AD8616/AD8618. Data Sheet. Table 2. Parameter. Symbol. Conditions. Min. Typ. Max. Unit

AD8615/AD8616/AD8618 Data Sheet Table 2 Parameter Symbol Conditions Min Typ Max Unit

Modelllinie für dieses Datenblatt

Textversion des Dokuments

AD8615/AD8616/AD8618 Data Sheet
VS = 2.7 V, VCM = VS/2, TA = 25°C, unless otherwise noted.
Table 2. Parameter Symbol Conditions Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage, AD8616/AD8618 VOS VS = 3.5 V at VCM = 0.5 V and 3.0 V 23 65 µV Offset Voltage, AD8615 23 100 µV VCM = 0 V to 2.7 V 80 500 µV −40°C < TA < +125°C 800 µV Offset Voltage Drift, AD8616/AD8618 ∆VOS/∆T −40°C < TA < +125°C 1.5 7 µV/°C Offset Voltage Drift, AD8615 3 10 µV/°C Input Bias Current IB 0.2 1 pA −40°C < TA < +85°C 50 pA −40°C < TA < +125°C 550 pA Input Offset Current IOS 0.1 0.5 pA −40°C < TA < +85°C 50 pA −40°C < TA < +125°C 250 pA Input Voltage Range 0 2.7 V Common-Mode Rejection Ratio CMRR VCM = 0 V to 2.7 V 80 100 dB Large Signal Voltage Gain AVO RL = 2 kΩ, VO = 0.5 V to 2.2 V 55 150 V/mV Input Capacitance CDIFF 2.5 pF CCM 7.8 pF OUTPUT CHARACTERISTICS Output Voltage High VOH IL = 1 mA 2.65 2.68 V −40°C < TA < +125°C 2.6 V Output Voltage Low VOL IL = 1 mA 11 25 mV −40°C < TA < +125°C 30 mV Output Current IOUT ±50 mA Closed-Loop Output Impedance ZOUT f = 1 MHz, AV = 1 3 Ω POWER SUPPLY Power Supply Rejection Ratio PSRR VS = 2.7 V to 5.5 V 70 90 dB Supply Current per Amplifier ISY VO = 0 V 1.7 2 mA −40°C < TA < +125°C 2.5 mA DYNAMIC PERFORMANCE Slew Rate SR RL = 2 kΩ 12 V/µs Settling Time tS To 0.01% <0.3 µs Gain Bandwidth Product GBP 23 MHz Phase Margin Øm 42 Degrees NOISE PERFORMANCE Peak-to-Peak Noise en p-p 0.1 Hz to 10 Hz 2.1 µV Voltage Noise Density en f = 1 kHz 10 nV/√Hz f = 10 kHz 7 nV/√Hz Current Noise Density in f = 1 kHz 0.05 pA/√Hz Channel Separation CS f = 10 kHz −115 dB f = 100 kHz −110 dB Rev. G | Page 4 of 20 Document Outline Features Applications General Description Pin Configuration Table of Contents Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Applications Information Input Overvoltage Protection Output Phase Reversal Driving Capacitive Loads Overload Recovery Time D/A Conversion Low Noise Applications High Speed Photodiode Preamplifier Active Filters Power Dissipation Power Calculations for Varying or Unknown Loads Calculating Power by Measuring Ambient Temperature and Case Temperature Calculating Power by Measuring Supply Current Outline Dimensions Ordering Guide
