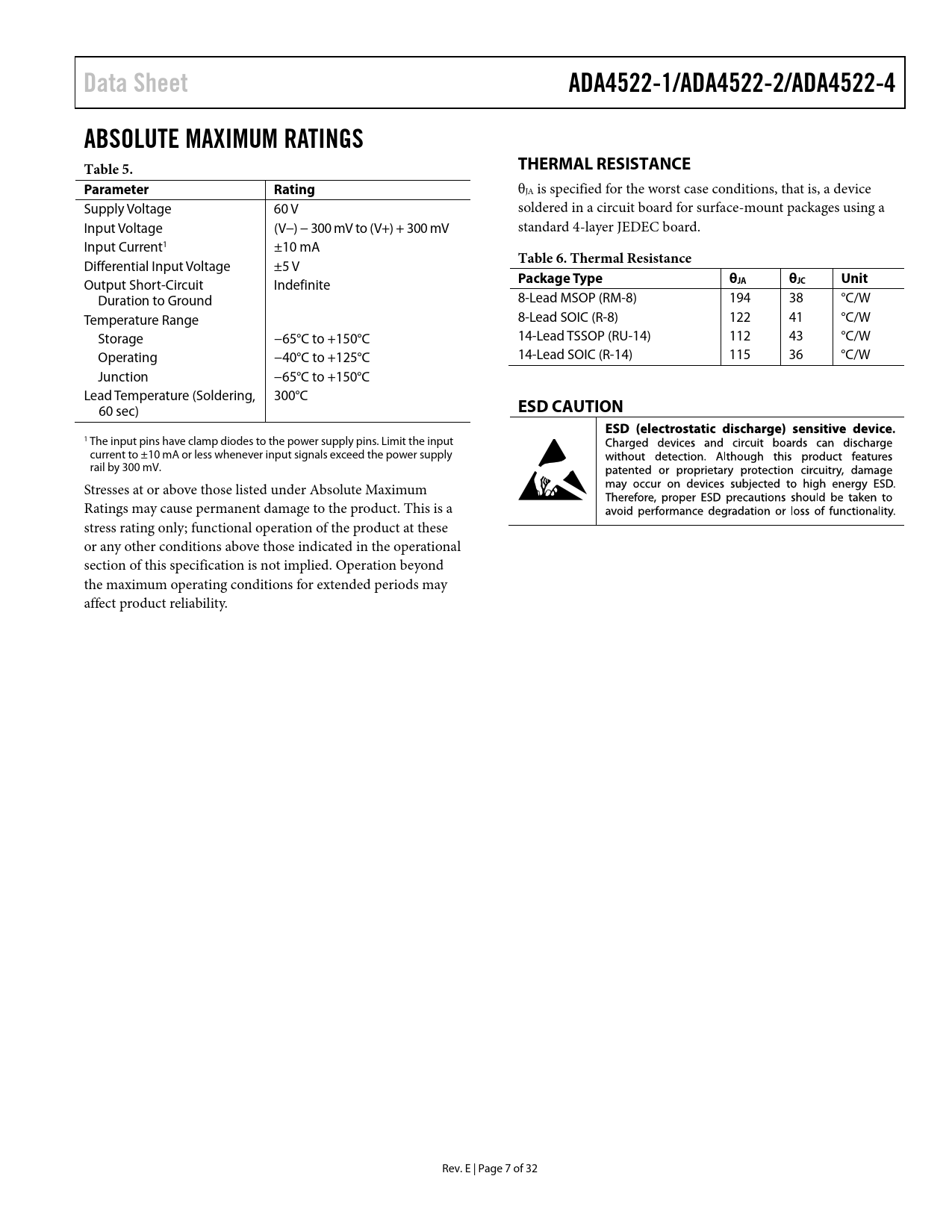

Data Sheet. ADA4522-1/ADA4522-2/ADA4522-4. ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL RESISTANCE. Parameter. Rating
Textversion des Dokuments
Data Sheet ADA4522-1/ADA4522-2/ADA4522-4 ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst case conditions, that is, a device Supply Voltage 60 V soldered in a circuit board for surface-mount packages using a Input Voltage (V−) − 300 mV to (V+) + 300 mV standard 4-layer JEDEC board. Input Current1 ±10 mA Differential Input Voltage ±5 V
Table 6. Thermal Resistance
Output Short-Circuit Indefinite
Package Type θJA θJC Unit
Duration to Ground 8-Lead MSOP (RM-8) 194 38 °C/W Temperature Range 8-Lead SOIC (R-8) 122 41 °C/W Storage −65°C to +150°C 14-Lead TSSOP (RU-14) 112 43 °C/W Operating −40°C to +125°C 14-Lead SOIC (R-14) 115 36 °C/W Junction −65°C to +150°C Lead Temperature (Soldering, 300°C 60 sec)
ESD CAUTION
1 The input pins have clamp diodes to the power supply pins. Limit the input current to ±10 mA or less whenever input signals exceed the power supply rail by 300 mV. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. E | Page 7 of 32 Document Outline Features Applications General Description Pin Connection Diagram Revision History Specifications Electrical Characteristics—5.0 V Operation Electrical Characteristics—30 V Operation Electrical Characteristics—55 V Operation Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory of Operation On-Chip Input EMI Filter and Clamp Circuit Thermal Shutdown Input Protection Single-Supply and Rail-to-Rail Output Large Signal Transient Response Case 1 Case 2 Noise Considerations 1/f Noise Source Resistance Residual Ripple Current Noise Density EMI Rejection Ratio Capacitive Load Stability Applications Information Single-Supply Instrumentation Amplifier Load Cell/Strain Gage Sensor Signal Conditioning Using the ADA4522-2 Precision Low-Side Current Shunt Sensor Printed Circuit Board Layout Comparator Operation Outline Dimensions Ordering Guide
