Datasheet ADA4522-1, ADA4522-2, ADA4522-4 (Analog Devices) - 9
| Hersteller | Analog Devices |
| Beschreibung | Single 55 V, EMI Enhanced, Zero-Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifiers |
| Seiten / Seite | 32 / 9 — Data Sheet. ADA4522-1/ADA4522-2/ADA4522-4. OUT A. 14 OUT D. –IN A. 13 –IN … |
| Revision | F |
| Dateiformat / Größe | PDF / 1.0 Mb |
| Dokumentensprache | Englisch |
Data Sheet. ADA4522-1/ADA4522-2/ADA4522-4. OUT A. 14 OUT D. –IN A. 13 –IN D. +IN A. 12 +IN D. ADA4522-4. 11 V–. TOP VIEW. (Not to Scale). +IN B
Textversion des Dokuments
Data Sheet ADA4522-1/ADA4522-2/ADA4522-4 OUT A 1 14 OUT D –IN A 2 13 –IN D +IN A 3 12 +IN D ADA4522-4 V+ 4 11 V– TOP VIEW (Not to Scale) +IN B 5 10 +IN C –IN B 6 9 –IN C OUT B
-189
7 8 OUT C

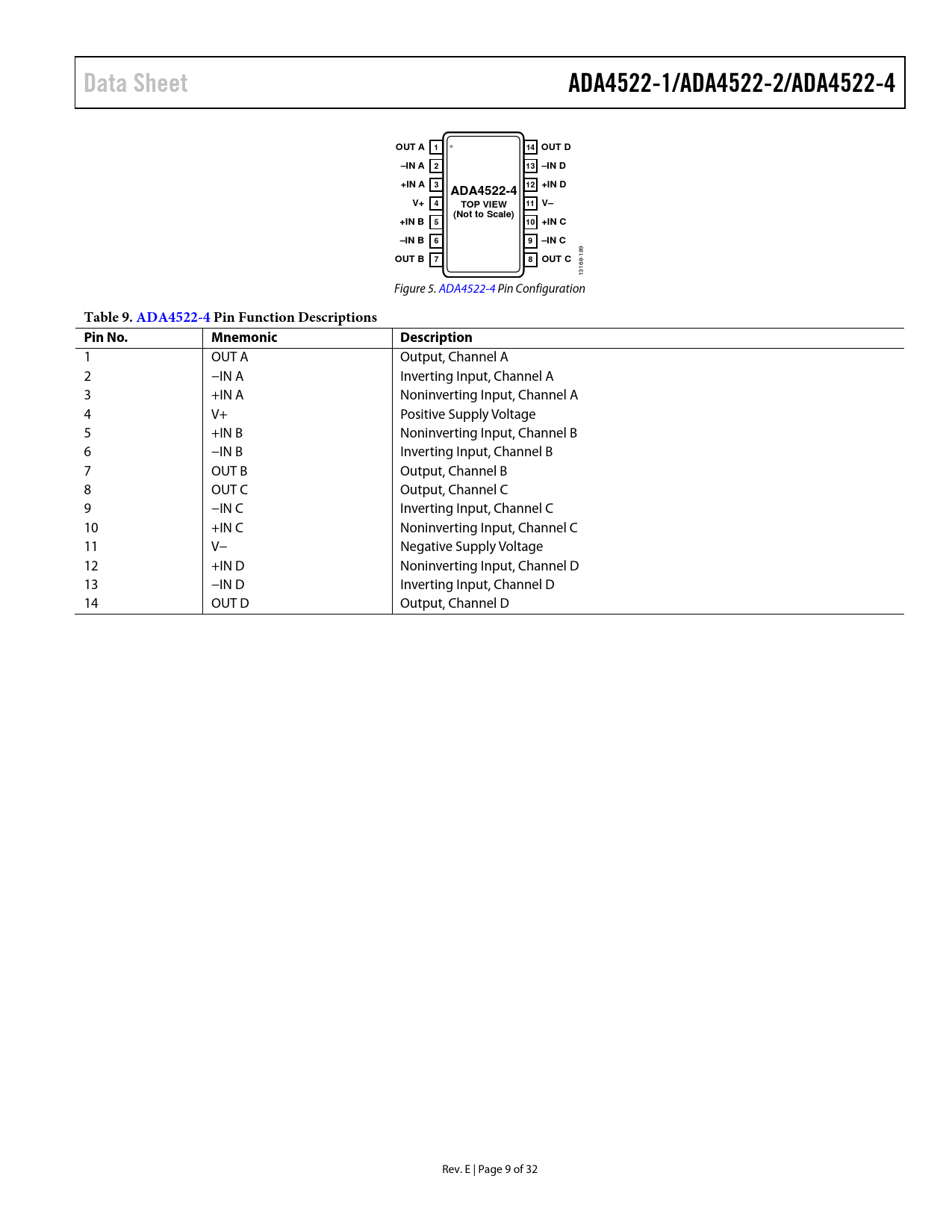

13168 Figure 5. ADA4522-4 Pin Configuration
Table 9. ADA4522-4 Pi n Function Descriptions Pin No. Mnemonic Description
1 OUT A Output, Channel A 2 −IN A Inverting Input, Channel A 3 +IN A Noninverting Input, Channel A 4 V+ Positive Supply Voltage 5 +IN B Noninverting Input, Channel B 6 −IN B Inverting Input, Channel B 7 OUT B Output, Channel B 8 OUT C Output, Channel C 9 −IN C Inverting Input, Channel C 10 +IN C Noninverting Input, Channel C 11 V− Negative Supply Voltage 12 +IN D Noninverting Input, Channel D 13 −IN D Inverting Input, Channel D 14 OUT D Output, Channel D Rev. E | Page 9 of 32 Document Outline Features Applications General Description Pin Connection Diagram Revision History Specifications Electrical Characteristics—5.0 V Operation Electrical Characteristics—30 V Operation Electrical Characteristics—55 V Operation Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory of Operation On-Chip Input EMI Filter and Clamp Circuit Thermal Shutdown Input Protection Single-Supply and Rail-to-Rail Output Large Signal Transient Response Case 1 Case 2 Noise Considerations 1/f Noise Source Resistance Residual Ripple Current Noise Density EMI Rejection Ratio Capacitive Load Stability Applications Information Single-Supply Instrumentation Amplifier Load Cell/Strain Gage Sensor Signal Conditioning Using the ADA4522-2 Precision Low-Side Current Shunt Sensor Printed Circuit Board Layout Comparator Operation Outline Dimensions Ordering Guide
