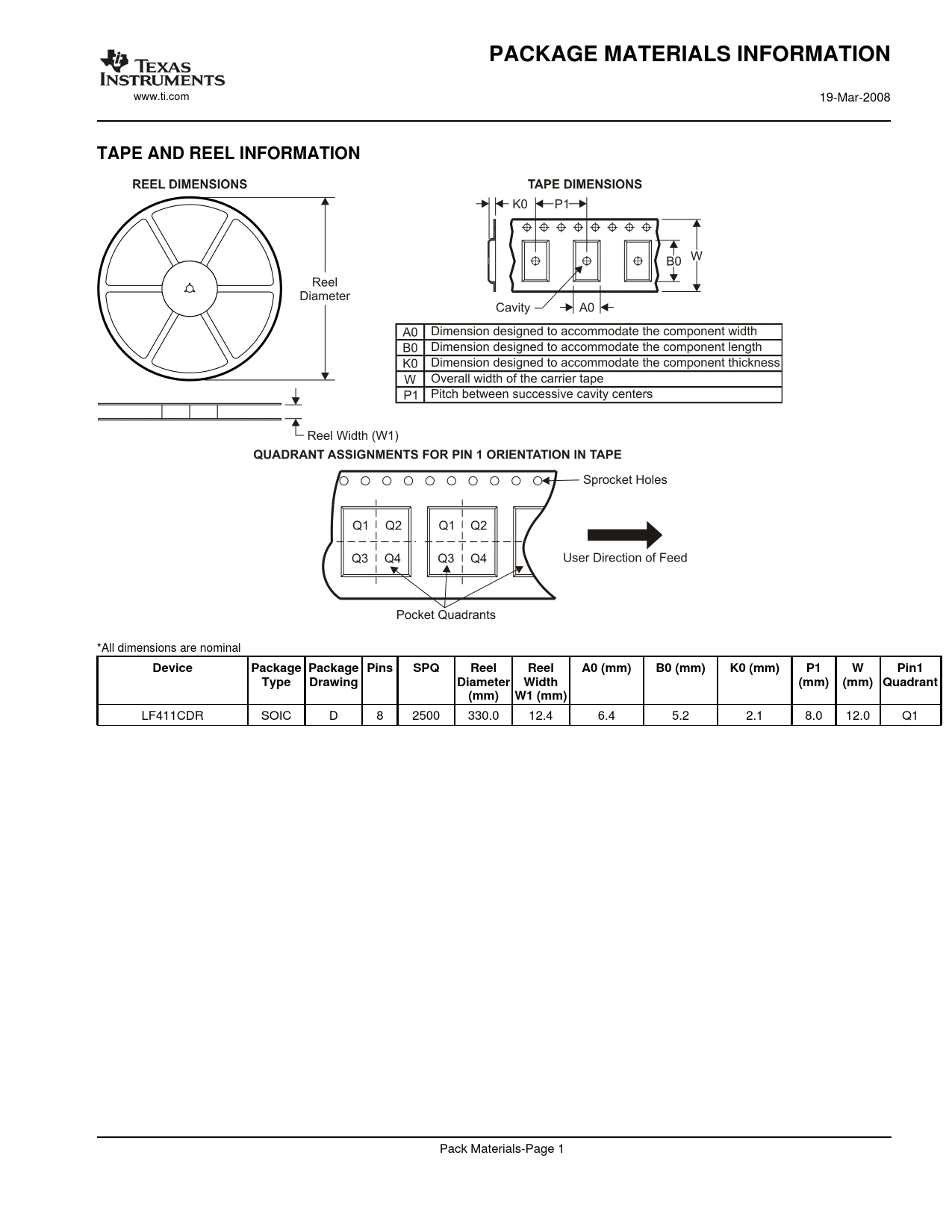

PACKAGE MATERIALS INFORMATION
www.ti.com 19-Mar-2008
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device Package Package Pins SPQ Reel Reel A0 (mm) B0 (mm) K0 (mm) P1 W Pin1 Type Drawing Diameter Width (mm) (mm) Quadrant (mm) W1 (mm)
LF411CDR SOIC D 8 2500 330.0 12.4 6.4 5.2 2.1 8.0 12.0 Q1 Pack Materials-Page 1
www.ti.com 19-Mar-2008
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device Package Package Pins SPQ Reel Reel A0 (mm) B0 (mm) K0 (mm) P1 W Pin1 Type Drawing Diameter Width (mm) (mm) Quadrant (mm) W1 (mm)
LF411CDR SOIC D 8 2500 330.0 12.4 6.4 5.2 2.1 8.0 12.0 Q1 Pack Materials-Page 1
