TLC2272 , TLC2272A, TLC2272M , TLC2272AM TLC2274 , TLC2274A, TLC2274M , TLC2274AM www.ti.com
SLOS190H – FEBRUARY 1997 – REVISED MARCH 2016

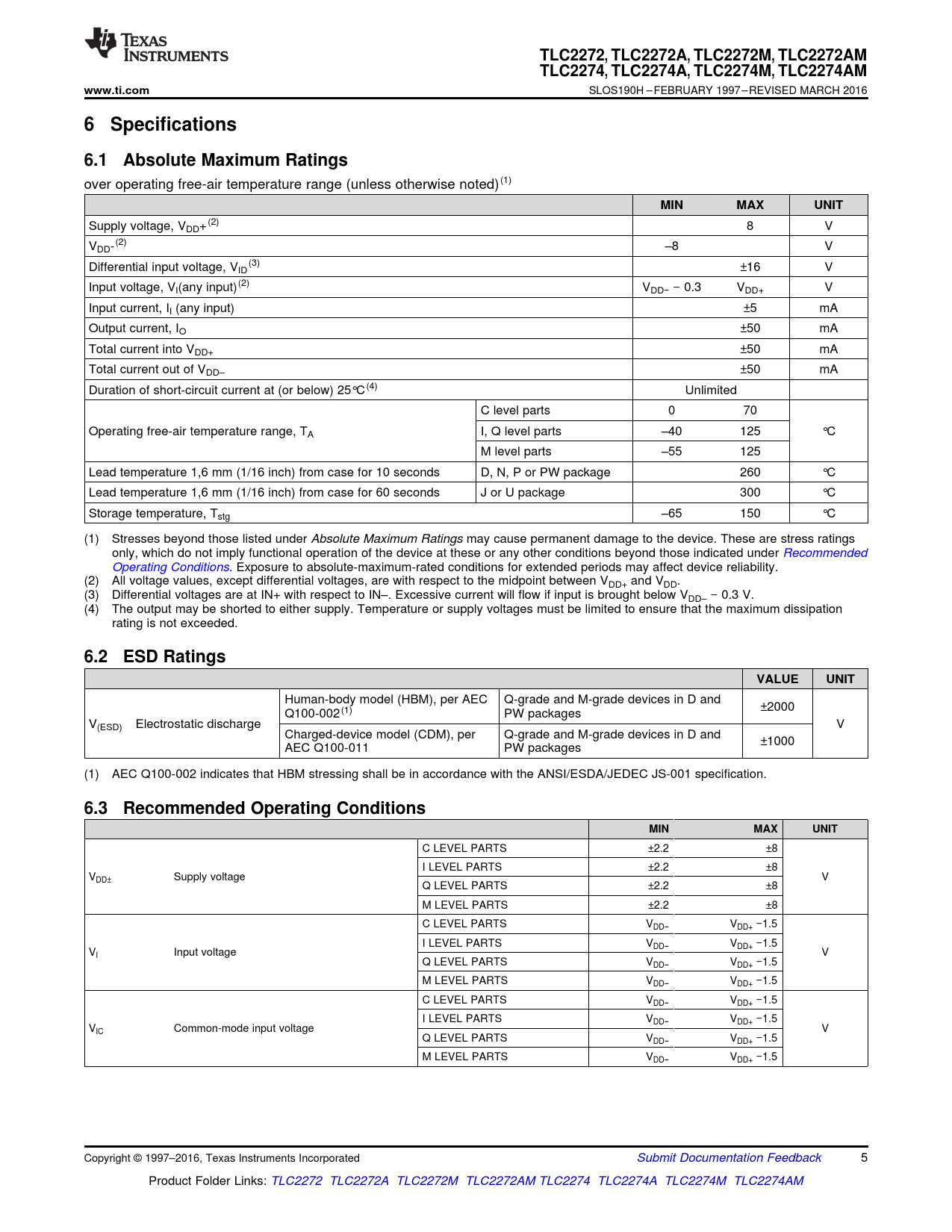

6 Specifications 6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply voltage, VDD+(2) 8 V VDD-(2) –8 V Differential input voltage, V (3) ID ±16 V Input voltage, VI(any input)(2) VDD− − 0.3 VDD+ V Input current, II (any input) ±5 mA Output current, IO ±50 mA Total current into VDD+ ±50 mA Total current out of VDD– ±50 mA Duration of short-circuit current at (or below) 25°C(4) Unlimited C level parts 0 70 Operating free-air temperature range, TA I, Q level parts –40 125 °C M level parts –55 125 Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds D, N, P or PW package 260 °C Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J or U package 300 °C Storage temperature, Tstg –65 150 °C (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) All voltage values, except differential voltages, are with respect to the midpoint between VDD+ and VDD. (3) Differential voltages are at IN+ with respect to IN–. Excessive current will flow if input is brought below VDD– − 0.3 V. (4) The output may be shorted to either supply. Temperature or supply voltages must be limited to ensure that the maximum dissipation rating is not exceeded.
6.2 ESD Ratings VALUE UNIT
Human-body model (HBM), per AEC Q-grade and M-grade devices in D and ±2000 Q100-002(1) PW packages V(ESD) Electrostatic discharge V Charged-device model (CDM), per Q-grade and M-grade devices in D and ±1000 AEC Q100-011 PW packages (1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
6.3 Recommended Operating Conditions MIN MAX UNIT
C LEVEL PARTS ±2.2 ±8 I LEVEL PARTS ±2.2 ±8 VDD± Supply voltage V Q LEVEL PARTS ±2.2 ±8 M LEVEL PARTS ±2.2 ±8 C LEVEL PARTS VDD− VDD+ −1.5 I LEVEL PARTS VDD− VDD+ −1.5 VI Input voltage V Q LEVEL PARTS VDD− VDD+ −1.5 M LEVEL PARTS VDD− VDD+ −1.5 C LEVEL PARTS VDD− VDD+ −1.5 I LEVEL PARTS VDD− VDD+ −1.5 VIC Common-mode input voltage V Q LEVEL PARTS VDD− VDD+ −1.5 M LEVEL PARTS VDD− VDD+ −1.5 Copyright © 1997–2016, Texas Instruments Incorporated Submit Documentation Feedback 5 Product Folder Links: TLC2272 TLC2272A TLC2272M TLC2272AM TLC2274 TLC2274A TLC2274M TLC2274AM Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information 6.5 TLC2272 and TLC2272A Electrical Characteristics VDD = 5 V 6.6 TLC2272 and TLC2272A Electrical Characteristics VDD± = ±5 V 6.7 TLC2274 and TLC2274A Electrical Characteristics VDD = 5 V 6.8 TLC2274 and TLC2274A Electrical Characteristics VDD± = ±5 V 6.9 Typical Characteristics 7 Detailed Description 7.1 Overview 7.2 Functional Block Diagram 7.3 Feature Description 7.4 Device Functional Modes 8 Application and Implementation 8.1 Application Information 8.1.1 Macromodel Information 8.2 Typical Application 8.2.1 High-Side Current Monitor 8.2.1.1 Design Requirements 8.2.1.2 Detailed Design Procedure 8.2.1.3 Application Curves 9 Power Supply Recommendations 10 Layout 10.1 Layout Guidelines 10.2 Layout Example 11 Device and Documentation Support 11.1 Related Links 11.2 Community Resources 11.3 Trademarks 11.4 Electrostatic Discharge Caution 11.5 Glossary 12 Mechanical, Packaging, and Orderable Information
