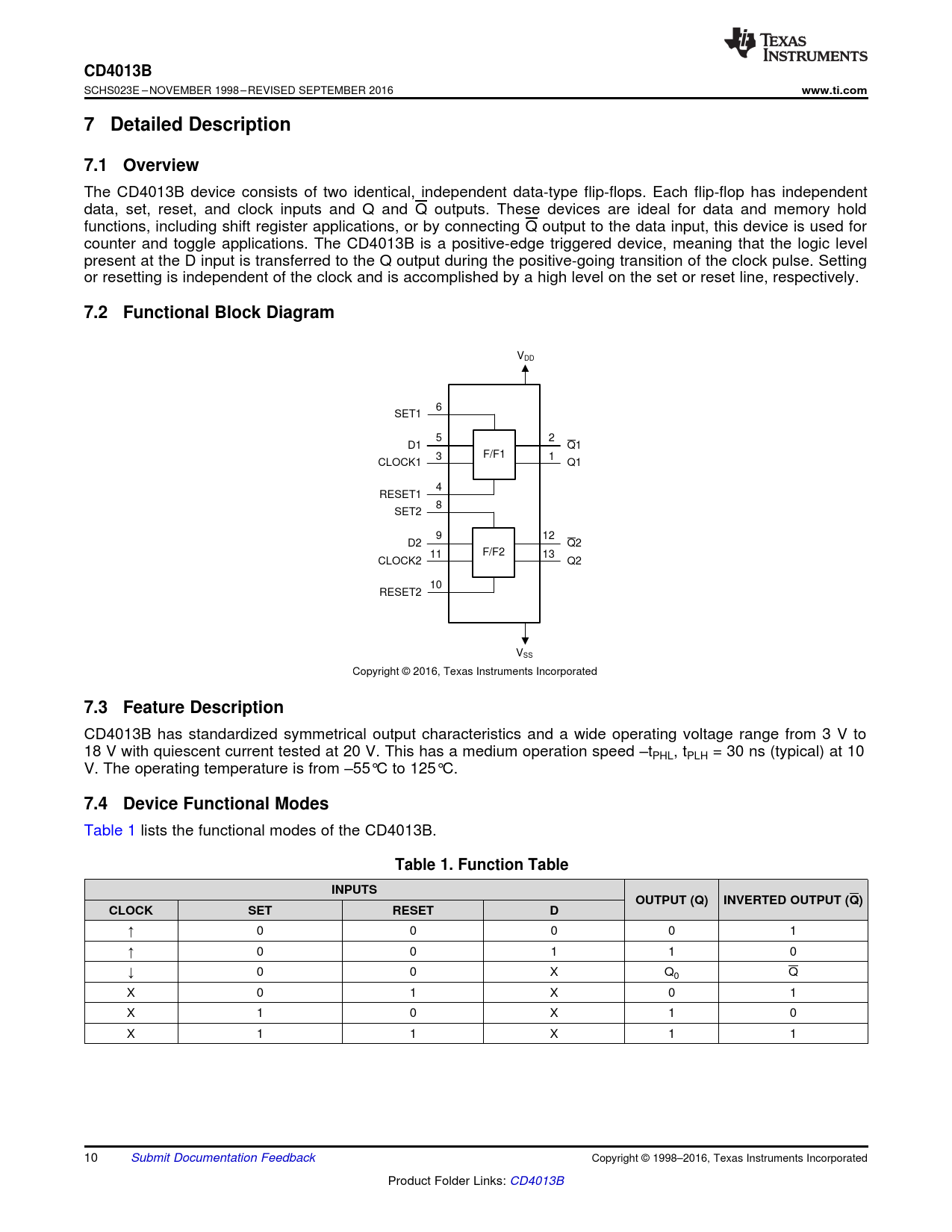

CD4013B
SCHS023E – NOVEMBER 1998 – REVISED SEPTEMBER 2016
www.ti.com 7 Detailed Description 7.1 Overview
The CD4013B device consists of two identical, independent data-type flip-flops. Each flip-flop has independent data, set, reset, and clock inputs and Q and Q outputs. These devices are ideal for data and memory hold functions, including shift register applications, or by connecting Q output to the data input, this device is used for counter and toggle applications. The CD4013B is a positive-edge triggered device, meaning that the logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line, respectively.
7.2 Functional Block Diagram
VDD 6 SET1 5 2 D1 Q1 3 F/F1 1 CLOCK1 Q1 4 RESET1 8 SET2 9 12 D2 Q2 11 F/F2 13 CLOCK2 Q2 10 RESET2 VSS Copyright © 2016, Texas Instruments Incorporated
7.3 Feature Description
CD4013B has standardized symmetrical output characteristics and a wide operating voltage range from 3 V to 18 V with quiescent current tested at 20 V. This has a medium operation speed –tPHL, tPLH = 30 ns (typical) at 10 V. The operating temperature is from –55°C to 125°C.
7.4 Device Functional Modes
Table 1 lists the functional modes of the CD4013B.
Table 1. Function Table INPUTS OUTPUT (Q) INVERTED OUTPUT (Q) CLOCK SET RESET D
