2N3904 / MMBT3904 / PZT3904 — NPN General-Purpose Amplifier Test Circuits. 3.0 V 275 Ω 300 ns. 10.6 V. Duty Cycle = 2% Ω. 10 KΩ
Modelllinie für dieses Datenblatt
Textversion des Dokuments

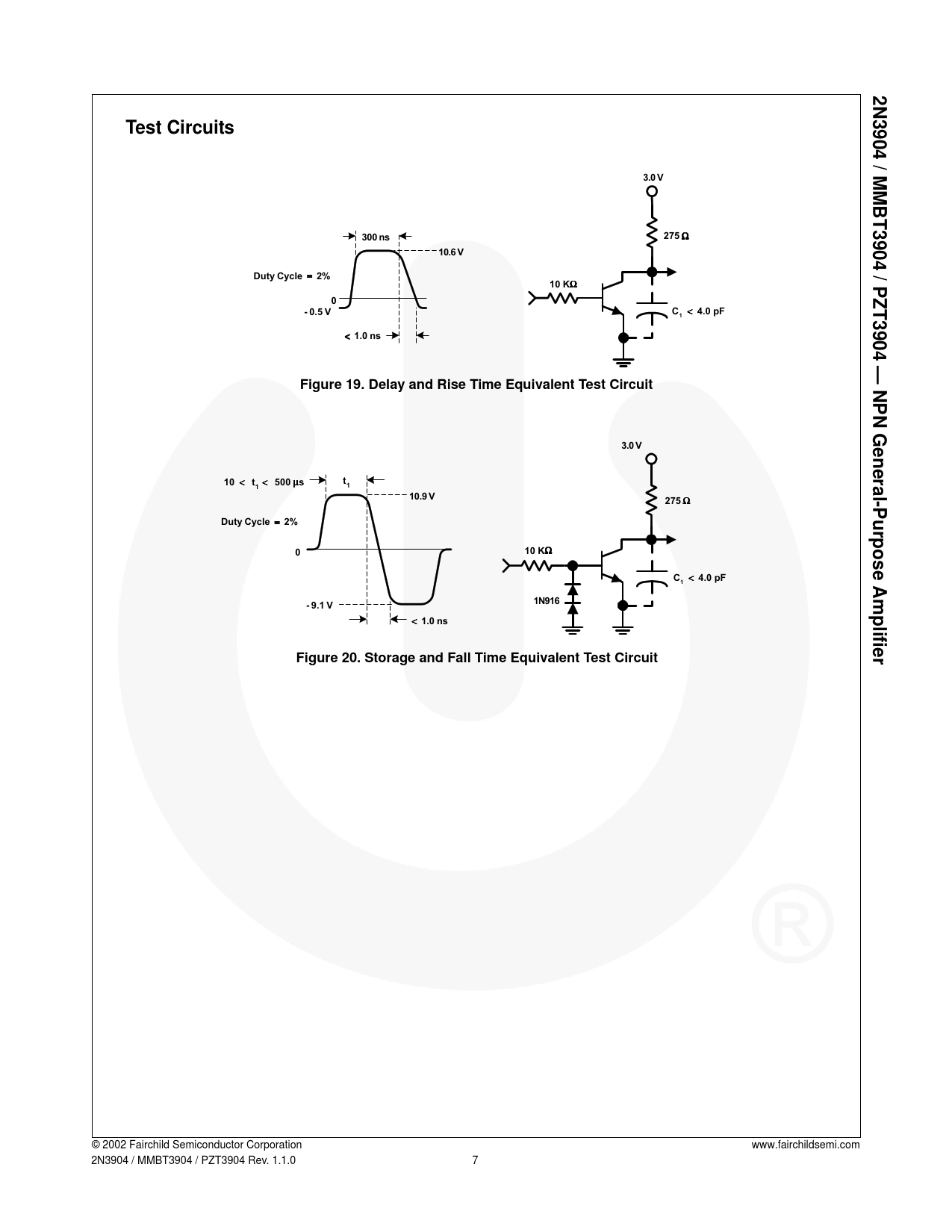

2N3904 / MMBT3904 / PZT3904 — NPN General-Purpose Amplifier Test Circuits
3.0 V 275 Ω 300 ns
10.6 V
Duty Cycle = 2% Ω
10 KΩ
0 C1 < 4.0 pF -0.5 V
< 1.0 ns Figure 19. Delay and Rise Time Equivalent Test Circuit 3.0 V
10 < t1 < 500 μs t1
10.9 V 275 Ω Duty Cycle = 2%
Ω
10 KΩ 0 C1 < 4.0 pF
1N916 -9.1 V
< 1.0 ns Figure 20. Storage and Fall Time Equivalent Test Circuit © 2002 Fairchild Semiconductor Corporation
