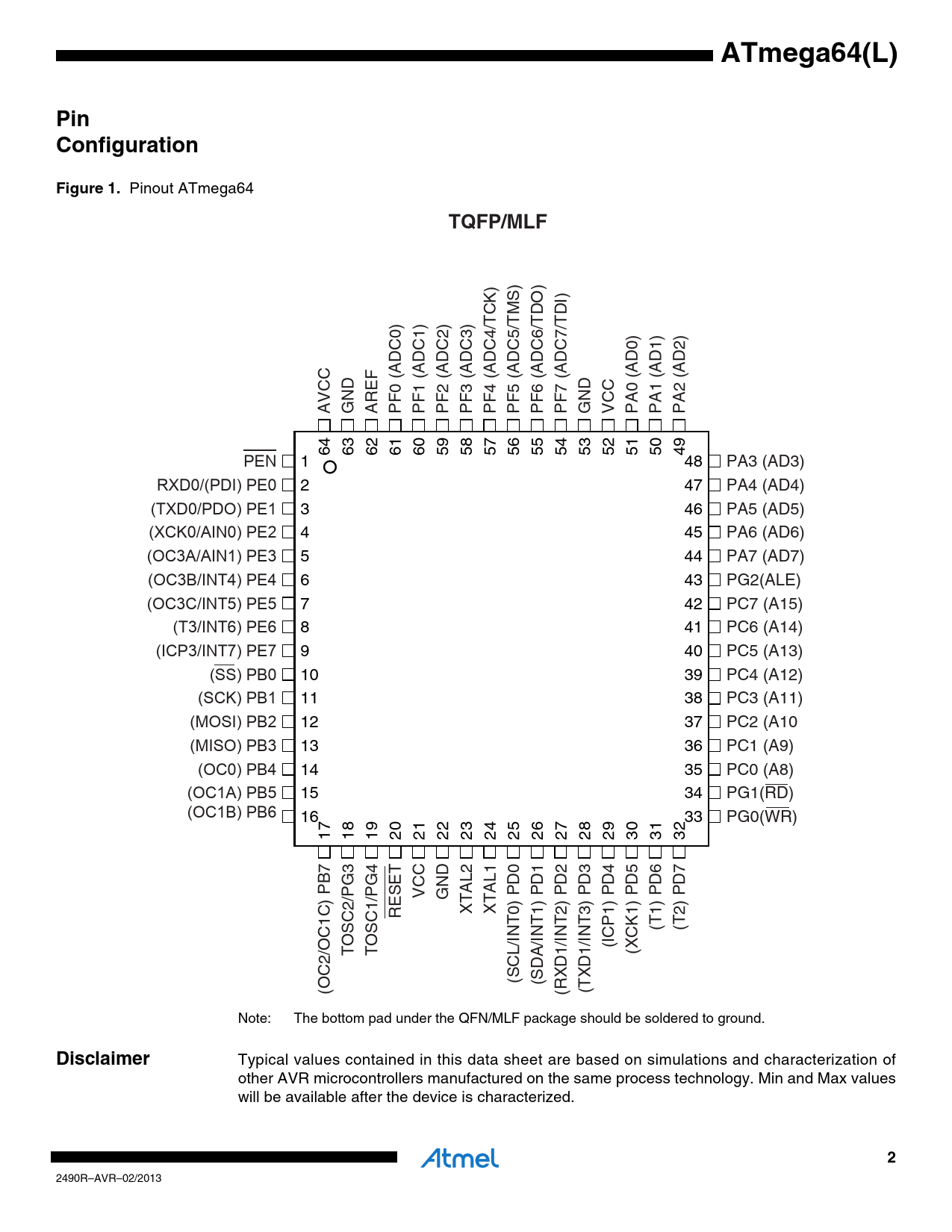

ATmega64(L) Pin Configuration Figure 1.
Pinout ATmega64
TQFP/MLF
AVCC GND AREF PF0 (ADC0) PF1 (ADC1) PF2 (ADC2) PF3 (ADC3) PF4 (ADC4/TCK) PF5 (ADC5/TMS) PF6 (ADC6/TDO) PF7 (ADC7/TDI) GND VCC PA0 (AD0) PA1 (AD1) PA2 (AD2) 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 PEN 1 48 PA3 (AD3) RXD0/(PDI) PE0 2 47 PA4 (AD4) (TXD0/PDO) PE1 3 46 PA5 (AD5) (XCK0/AIN0) PE2 4 45 PA6 (AD6) (OC3A/AIN1) PE3 5 44 PA7 (AD7) (OC3B/INT4) PE4 6 43 PG2(ALE) (OC3C/INT5) PE5 7 42 PC7 (A15) (T3/INT6) PE6 8 41 PC6 (A14) (ICP3/INT7) PE7 9 40 PC5 (A13) (SS) PB0 10 39 PC4 (A12) (SCK) PB1 11 38 PC3 (A11) (MOSI) PB2 12 37 PC2 (A10 (MISO) PB3 13 36 PC1 (A9) (OC0) PB4 14 35 PC0 (A8) (OC1A) PB5 15 34 PG1(RD) (OC1B) PB6 16 33 PG0(WR) 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 VCC GND RESET XTAL2 XTAL1 (T1) PD6 (T2) PD7 (ICP1) PD4 TOSC2/PG3 TOSC1/PG4 (XCK1) PD5 (SCL/INT0) PD0 (OC2/OC1C) PB7 (SDA/INT1) PD1 (RXD1/INT2) PD2 (TXD1/INT3) PD3 Note: The bottom pad under the QFN/MLF package should be soldered to ground.
Disclaimer
Typical values contained in this data sheet are based on simulations and characterization of other AVR microcontrollers manufactured on the same process technology. Min and Max values will be available after the device is characterized.
2
