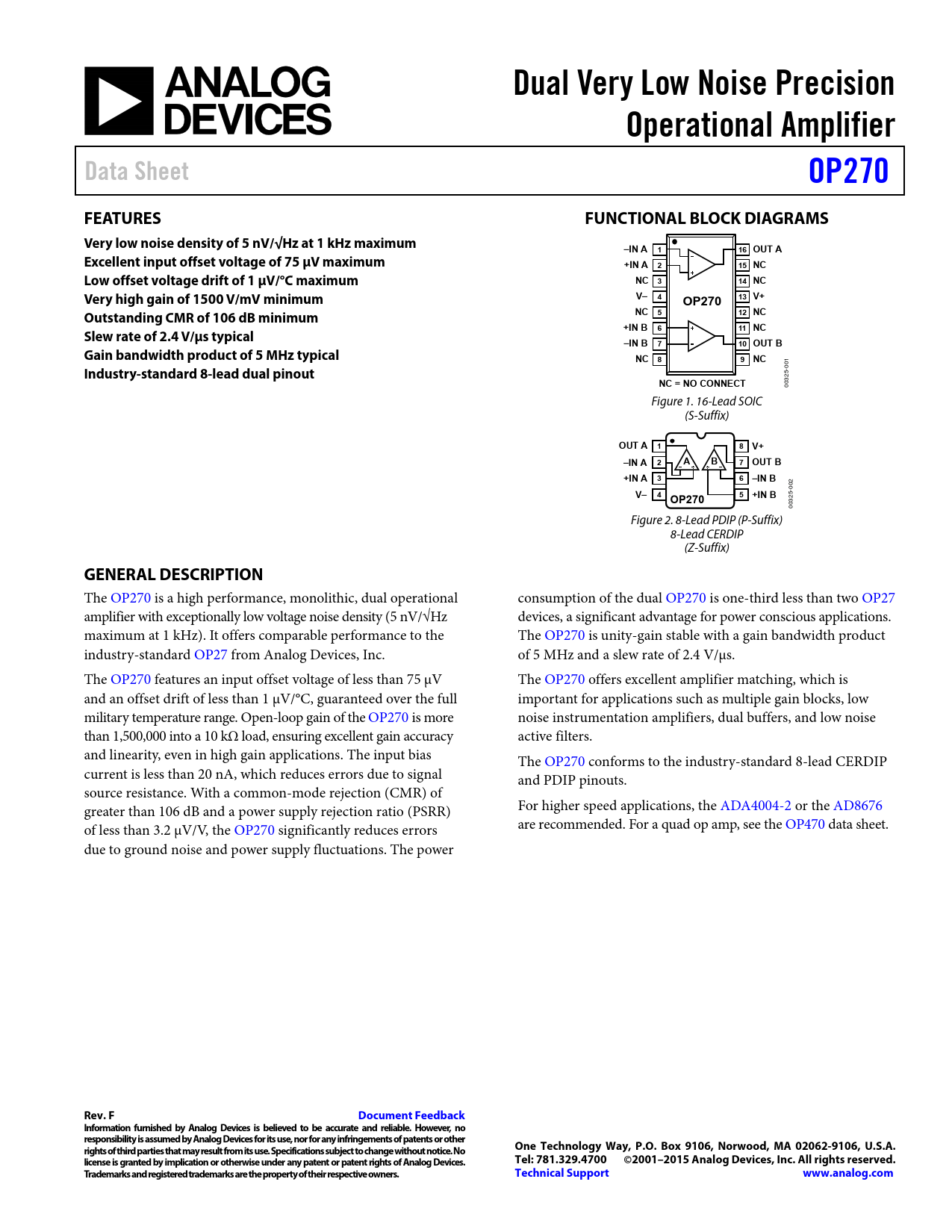

Dual Very Low Noise Precision Operational Amplifier Data Sheet OP270 FEATURES FUNCTIONAL BLOCK DIAGRAMS Very low noise density of 5 nV/√Hz at 1 kHz maximum –IN A 1 16 OUT A Excellent input offset voltage of 75 μV maximum +IN A 2 15 NC Low offset voltage drift of 1 μV/°C maximum NC 3 14 NC Very high gain of 1500 V/mV minimum V– 4 13 V+ OP270 NC 5 12 NC Outstanding CMR of 106 dB minimum +IN B 6 11 NC Slew rate of 2.4 V/μs typical –IN B 7 10 OUT B Gain bandwidth product of 5 MHz typical NC 8 9 NC
01 -0
Industry-standard 8-lead dual pinout
325
NC = NO CONNECT
00 Figure 1. 16-Lead SOIC (S-Suffix)
OUT A 1 8 V+ –IN A 2 A B 7 OUT B +IN A 3 6 –IN B
02 -0
V– 4 5 +IN B
325
OP270
00 Figure 2. 8-Lead PDIP (P-Suffix) 8-Lead CERDIP (Z-Suffix)
GENERAL DESCRIPTION
The OP270 is a high performance, monolithic, dual operational consumption of the dual OP270 is one-third less than two OP27 amplifier with exceptionally low voltage noise density (5 nV/√Hz devices, a significant advantage for power conscious applications. maximum at 1 kHz). It offers comparable performance to the The OP270 is unity-gain stable with a gain bandwidth product industry-standard OP27 from Analog Devices, Inc. of 5 MHz and a slew rate of 2.4 V/μs. The OP270 features an input offset voltage of less than 75 μV The OP270 offers excellent amplifier matching, which is and an offset drift of less than 1 μV/°C, guaranteed over the full important for applications such as multiple gain blocks, low military temperature range. Open-loop gain of the OP270 is more noise instrumentation amplifiers, dual buffers, and low noise than 1,500,000 into a 10 kΩ load, ensuring excellent gain accuracy active filters. and linearity, even in high gain applications. The input bias The OP270 conforms to the industry-standard 8-lead CERDIP current is less than 20 nA, which reduces errors due to signal and PDIP pinouts. source resistance. With a common-mode rejection (CMR) of greater than 106 dB and a power supply rejection ratio (PSRR) For higher speed applications, the ADA4004-2 or the AD8676 of less than 3.2 μV/V, the OP270 significantly reduces errors are recommended. For a quad op amp, see the OP470 data sheet. due to ground noise and power supply fluctuations. The power
