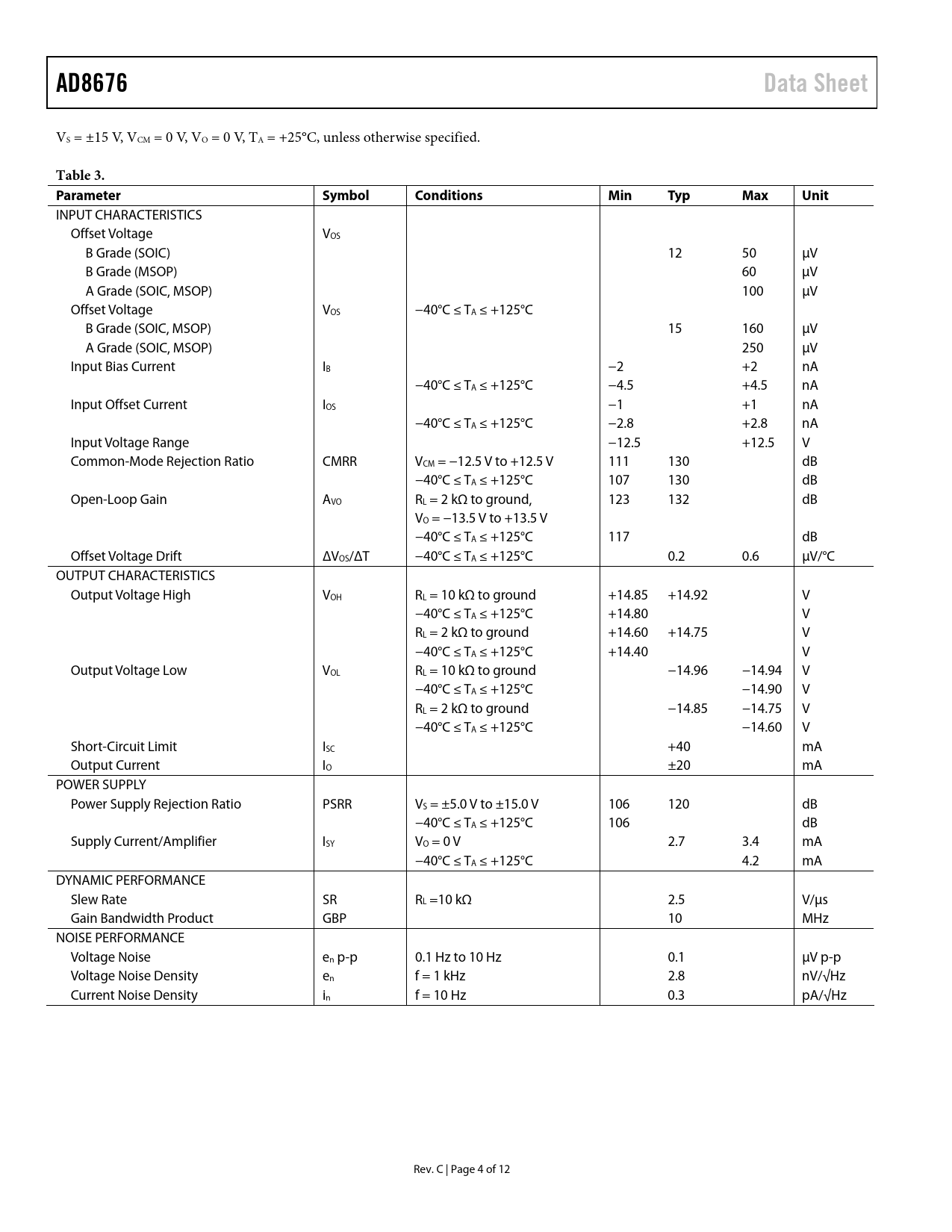

AD8676 Data Sheet
VS = ±15 V, VCM = 0 V, VO = 0 V, TA = +25°C, unless otherwise specified.
Table 3. Parameter Symbol Conditions Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS B Grade (SOIC) 12 50 μV B Grade (MSOP) 60 μV A Grade (SOIC, MSOP) 100 μV Offset Voltage VOS −40°C ≤ TA ≤ +125°C B Grade (SOIC, MSOP) 15 160 μV A Grade (SOIC, MSOP) 250 μV Input Bias Current IB −2 +2 nA −40°C ≤ TA ≤ +125°C −4.5 +4.5 nA Input Offset Current IOS −1 +1 nA −40°C ≤ TA ≤ +125°C −2.8 +2.8 nA Input Voltage Range −12.5 +12.5 V Common-Mode Rejection Ratio CMRR VCM = −12.5 V to +12.5 V 111 130 dB −40°C ≤ TA ≤ +125°C 107 130 dB Open-Loop Gain AVO RL = 2 kΩ to ground, 123 132 dB VO = −13.5 V to +13.5 V −40°C ≤ TA ≤ +125°C 117 dB Offset Voltage Drift ΔVOS/ΔT −40°C ≤ TA ≤ +125°C 0.2 0.6 μV/°C OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 10 kΩ to ground +14.85 +14.92 V −40°C ≤ TA ≤ +125°C +14.80 V RL = 2 kΩ to ground +14.60 +14.75 V −40°C ≤ TA ≤ +125°C +14.40 V Output Voltage Low VOL RL = 10 kΩ to ground −14.96 −14.94 V −40°C ≤ TA ≤ +125°C −14.90 V RL = 2 kΩ to ground −14.85 −14.75 V −40°C ≤ TA ≤ +125°C −14.60 V Short-Circuit Limit ISC +40 mA Output Current IO ±20 mA POWER SUPPLY Power Supply Rejection Ratio PSRR VS = ±5.0 V to ±15.0 V 106 120 dB −40°C ≤ TA ≤ +125°C 106 dB Supply Current/Amplifier ISY VO = 0 V 2.7 3.4 mA −40°C ≤ TA ≤ +125°C 4.2 mA DYNAMIC PERFORMANCE Slew Rate SR RL =10 kΩ 2.5 V/μs Gain Bandwidth Product GBP 10 MHz NOISE PERFORMANCE Voltage Noise en p-p 0.1 Hz to 10 Hz 0.1 μV p-p Voltage Noise Density en f = 1 kHz 2.8 nV/√Hz Current Noise Density in f = 10 Hz 0.3 pA/√Hz Rev. C | Page 4 of 12 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE POWER SEQUENCING ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
