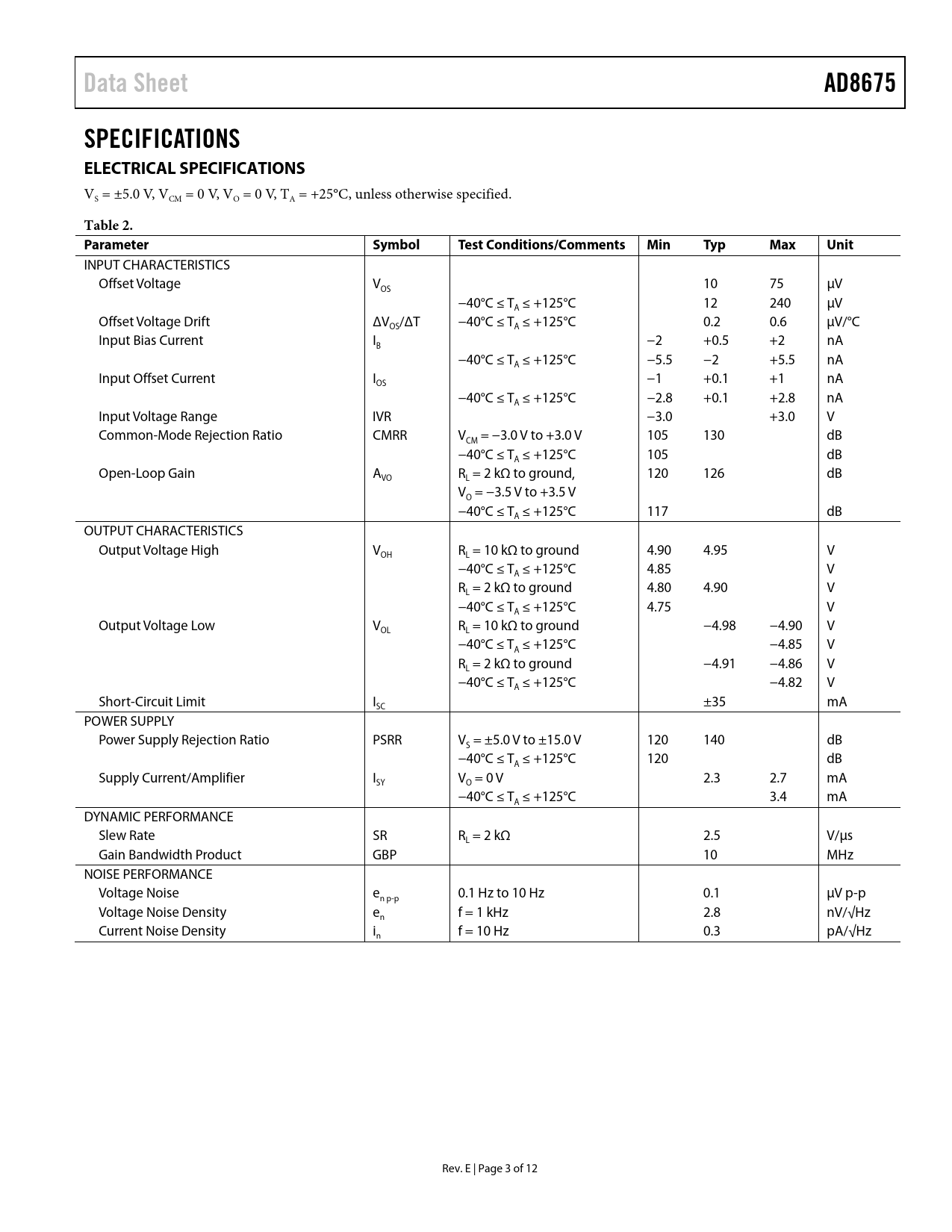

Data Sheet AD8675 SPECIFICATIONS ELECTRICAL SPECIFICATIONS
VS = ±5.0 V, VCM = 0 V, VO = 0 V, TA = +25°C, unless otherwise specified.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage V 10 75 µV OS −40°C ≤ T ≤ +125°C 12 240 µV A Offset Voltage Drift ΔV /ΔT −40°C ≤ T ≤ +125°C 0.2 0.6 µV/°C OS A Input Bias Current I −2 +0.5 +2 nA B −40°C ≤ T ≤ +125°C −5.5 −2 +5.5 nA A Input Offset Current I −1 +0.1 +1 nA OS −40°C ≤ T ≤ +125°C −2.8 +0.1 +2.8 nA A Input Voltage Range IVR −3.0 +3.0 V Common-Mode Rejection Ratio CMRR V = −3.0 V to +3.0 V 105 130 dB CM −40°C ≤ T ≤ +125°C 105 dB A Open-Loop Gain A R = 2 kΩ to ground, 120 126 dB VO L V = −3.5 V to +3.5 V O −40°C ≤ T ≤ +125°C 117 dB A OUTPUT CHARACTERISTICS Output Voltage High V R = 10 kΩ to ground 4.90 4.95 V OH L −40°C ≤ T ≤ +125°C 4.85 V A R = 2 kΩ to ground 4.80 4.90 V L −40°C ≤ T ≤ +125°C 4.75 V A Output Voltage Low V R = 10 kΩ to ground −4.98 −4.90 V OL L −40°C ≤ T ≤ +125°C −4.85 V A R = 2 kΩ to ground −4.91 −4.86 V L −40°C ≤ T ≤ +125°C −4.82 V A Short-Circuit Limit I ±35 mA SC POWER SUPPLY Power Supply Rejection Ratio PSRR V = ±5.0 V to ±15.0 V 120 140 dB S −40°C ≤ T ≤ +125°C 120 dB A Supply Current/Amplifier I V = 0 V 2.3 2.7 mA SY O −40°C ≤ T ≤ +125°C 3.4 mA A DYNAMIC PERFORMANCE Slew Rate SR R = 2 kΩ 2.5 V/µs L Gain Bandwidth Product GBP 10 MHz NOISE PERFORMANCE Voltage Noise e 0.1 Hz to 10 Hz 0.1 µV p-p n p-p Voltage Noise Density e f = 1 kHz 2.8 nV/√Hz n Current Noise Density i f = 10 Hz 0.3 pA/√Hz n Rev. E | Page 3 of 12 Document Outline Features Applications General Description Pin Configurations Table of Contents Revision History Specifications Electrical Specifications Absolute Maximum Ratings Thermal Resistance Power Sequencing ESD Caution Typical Performance Characteristics Test Circuit Outline Dimensions Ordering Guide
