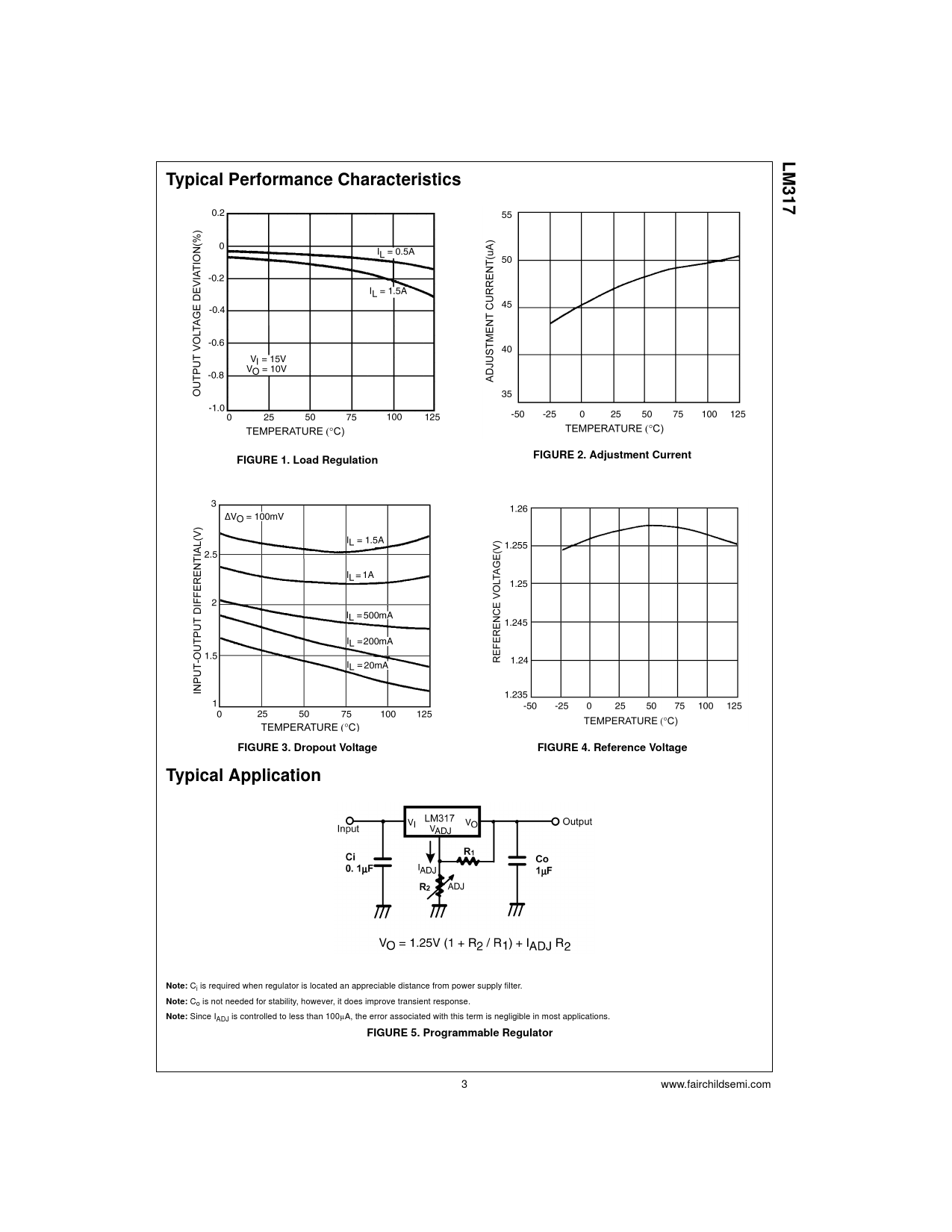

LM317. Typical Performance Characteristics. FIGURE 1. Load Regulation. FIGURE 2. Adjustment Current. FIGURE 3. Dropout Voltage

LM317 Typical Performance Characteristics FIGURE 1 Load Regulation FIGURE 2 Adjustment Current FIGURE 3 Dropout Voltage

Modelllinie für dieses Datenblatt

LM317

Textversion des Dokuments

LM317 Typical Performance Characteristics FIGURE 1. Load Regulation FIGURE 2. Adjustment Current FIGURE 3. Dropout Voltage FIGURE 4. Reference Voltage Typical Application Note:
Ci is required when regulator is located an appreciable distance from power supply filter.
Note:
Co is not needed for stability, however, it does improve transient response.
Note:
Since IADJ is controlled to less than 100PA, the error associated with this term is negligible in most applications.
FIGURE 5. Programmable Regulator
3 www.fairchildsemi.com
