Datasheet ECS-CR2-A (ECS Inc.)

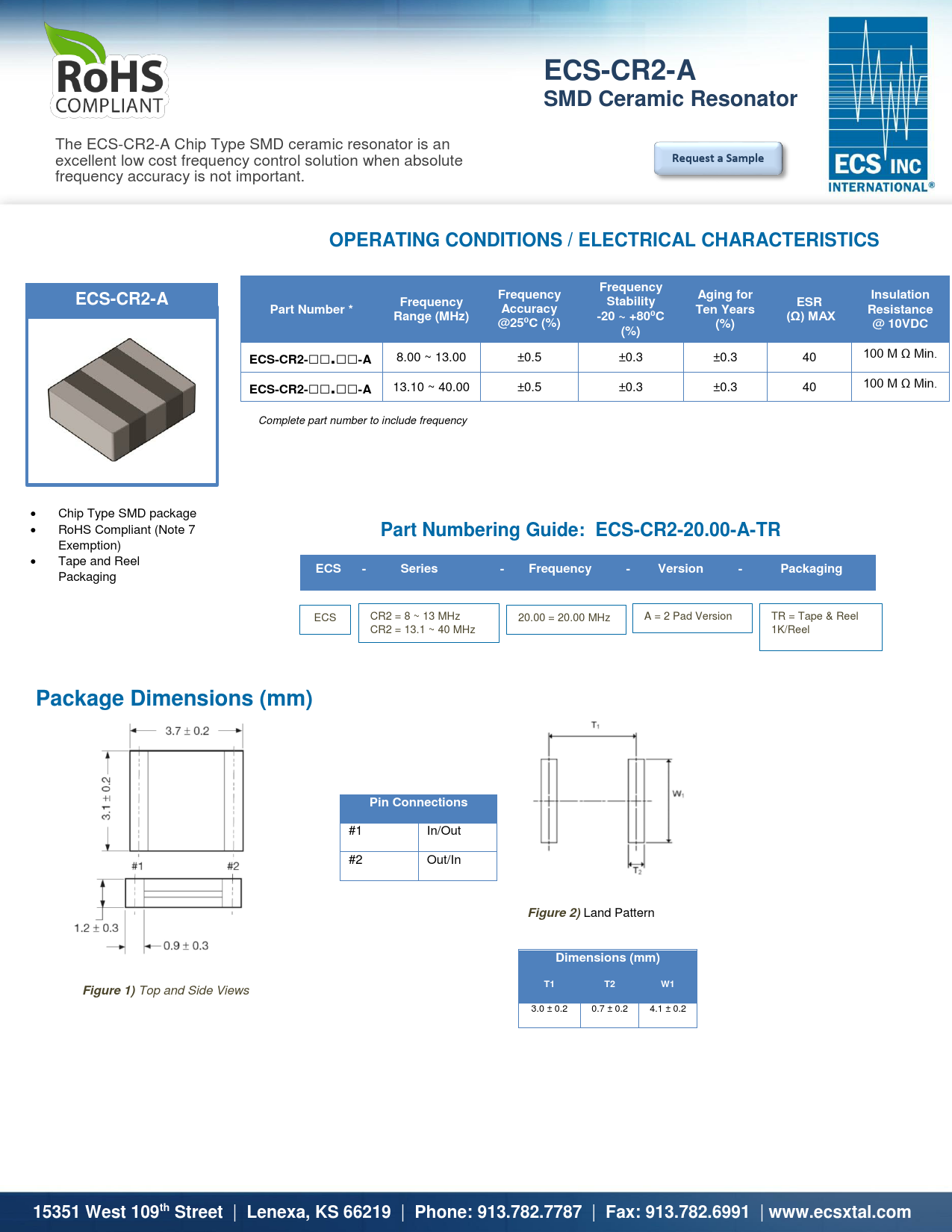

ECS-CR2-A SMD Ceramic Resonator
The ECS-CR2-A Chip Type SMD ceramic resonator is an excellent low cost frequency control solution when absolute
Request a Sample
frequency accuracy is not important.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS Frequency Frequency Aging for Insulation ECS-CR2-A Frequency Stability ESR Part Number * Accuracy Ten Years Resistance Range (MHz) -20 ~ +80⁰C (Ω) MAX @25⁰C (%) (%) @ 10VDC (%) ECS-CR2-□□.□□-A
8.00 ~ 13.00 ±0.5 ±0.3 ±0.3 40 100 M Ω Min.
ECS-CR2-□□.□□-A
13.10 ~ 40.00 ±0.5 ±0.3 ±0.3 40 100 M Ω Min. Complete part number to include frequency • Chip Typ e SMD package • RoHS Compliant (Note 7
Part Numbering Guide: ECS-CR2-20.00-A-TR
Exemption) • Tape and Reel
ECS - Series - Frequency - Version - Packaging
Packaging ECS CR2 = 8 ~ 13 MHz 20.00 = 20.00 MHz A = 2 Pad Version TR = Tape & Reel CR2 = 13.1 ~ 40 MHz 1K/Reel
Package Dimensions (mm) Pin Connections
#1 In/Out #2 Out/In
Figure 2)
Land Pattern
Dimensions (mm) T1 T2 W1 Figure 1)
Top and Side Views 3.0 ± 0.2 0.7 ± 0.2 4.1 ± 0.2
