Datasheet ASR418S2 (Abracon) - 2
| Hersteller | Abracon |
| Beschreibung | Saw resonator 418 MHz SMD |
| Seiten / Seite | 3 / 2 — SMD ONE PORT SAW RESONATOR. ASR418S2. Pb RoHS. Compliant. 5.0 x 3.5 x … |
| Dateiformat / Größe | PDF / 1.4 Mb |
| Dokumentensprache | Englisch |

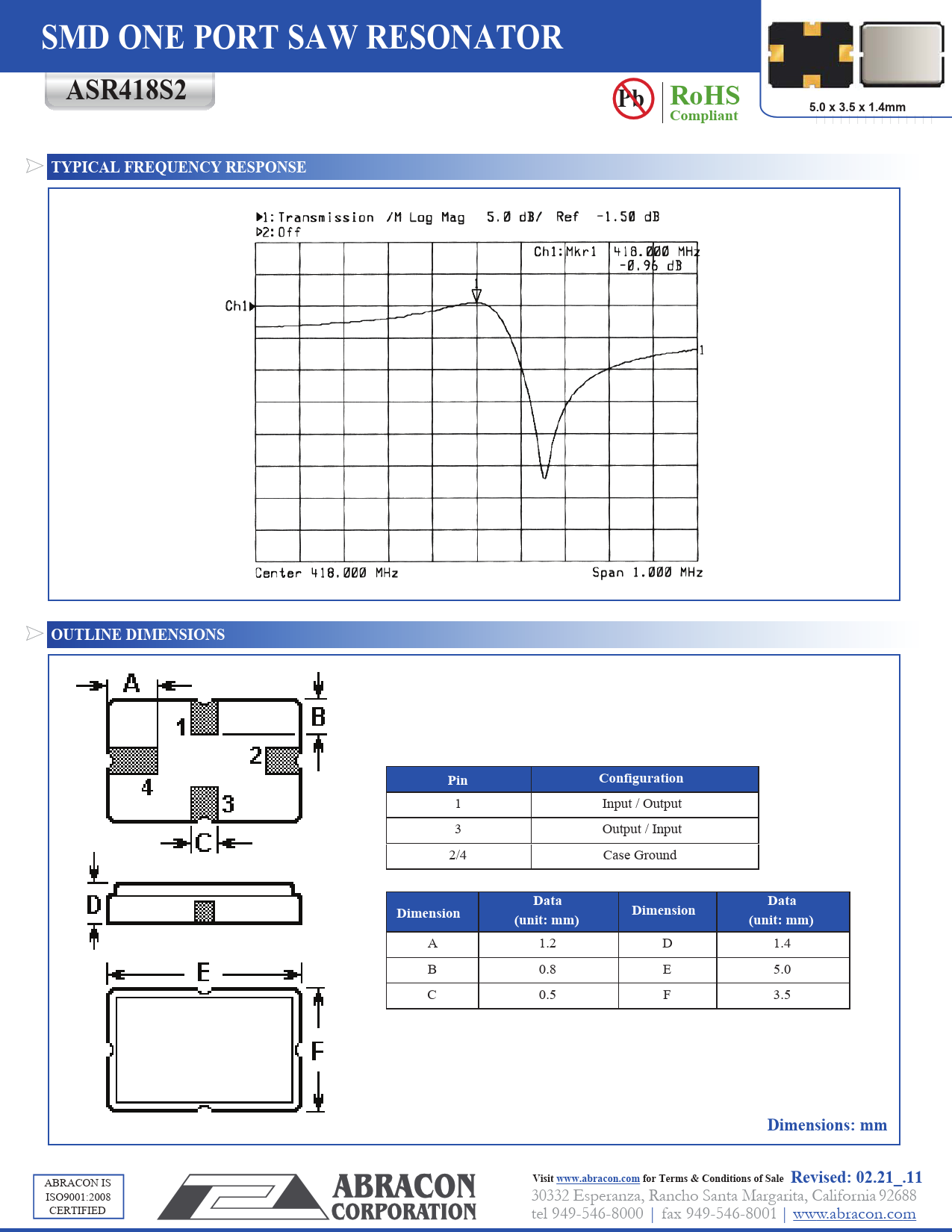

SMD ONE PORT SAW RESONATOR. ASR418S2. Pb RoHS. Compliant. 5.0 x 3.5 x 1.4mm. TYPICAL FREQUENCY RESPONSE. OUTLINE DIMENSIONS. Pin
Modelllinie für dieses Datenblatt
Textversion des Dokuments
SMD ONE PORT SAW RESONATOR ASR418S2 Pb RoHS Compliant 5.0 x 3.5 x 1.4mm
| | | | | | | | | | | | | | |
TYPICAL FREQUENCY RESPONSE OUTLINE DIMENSIONS Pin Configuration
1 Input / Output 3 Output / Input 2/4 Case Ground
Data Data Dimension Dimension (unit: mm) (unit: mm)
A 1.2 D 1.4 B 0.8 E 5.0 C 0.5 F 3.5
