Datasheet AWSCR-CRLA (Abracon) - 2

HerstellerAbracon
BeschreibungCeramic resonator 7.37 MHz 15 pF SMD
Seiten / Seite6 / 2 — Miniature Ceramic Resonator. 4.5 x 2.0 x 1.0 mm. RoHS/RoHS II Compliant. …
Dateiformat / GrößePDF / 794 Kb
DokumentenspracheEnglisch

Miniature Ceramic Resonator. 4.5 x 2.0 x 1.0 mm. RoHS/RoHS II Compliant. Pb in ceramic, exemption (7c-I)

Miniature Ceramic Resonator 4.5 x 2.0 x 1.0 mm RoHS/RoHS II Compliant Pb in ceramic, exemption (7c-I)

Modelllinie für dieses Datenblatt

Textversion des Dokuments

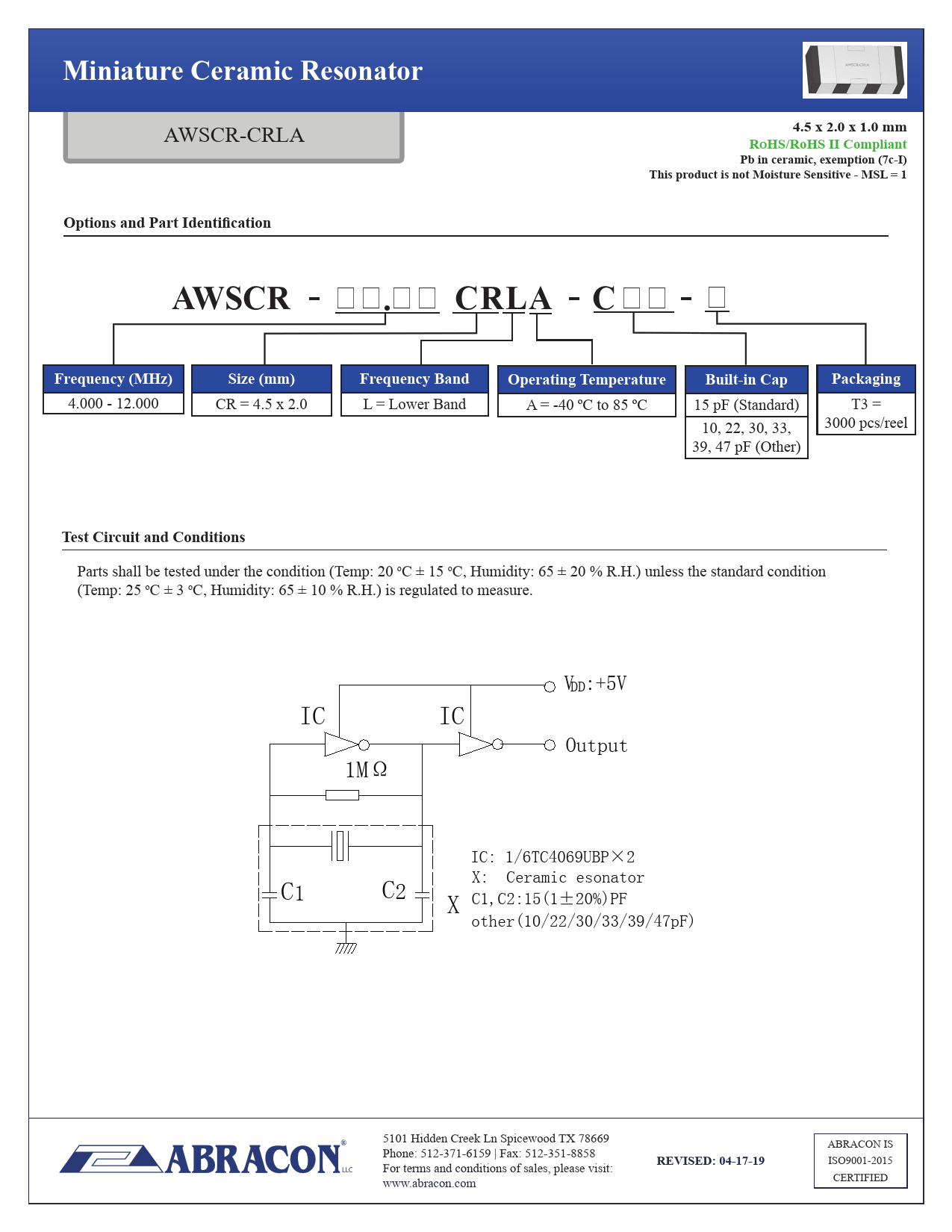

Miniature Ceramic Resonator 4.5 x 2.0 x 1.0 mm
AWSCR-CRLA
RoHS/RoHS II Compliant Pb in ceramic, exemption (7c-I) This product is not Moisture Sensitive - MSL = 1 Options and Part Identification AWSCR .   CRLA C  Frequency (MHz) Size (mm) Frequency Band Operating Temperature Built-in Cap Packaging
4.000 - 12.000 CR = 4.5 x 2.0 L = Lower Band A = -40 ºC to 85 ºC 15 pF (Standard) T3 = 10, 22, 30, 33, 3000 pcs/reel 39, 47 pF (Other)
Test Circuit and Conditions
Parts shall be tested under the condition (Temp: 20 oC ± 15 oC, Humidity: 65 ± 20 % R.H.) unless the standard condition (Temp: 25 oC ± 3 oC, Humidity: 65 ± 10 % R.H.) is regulated to measure. V : DD +5V IC IC Output 1MΩ IC: 1/6TC4069UBP×2 X: Ceramic esonator C1 C2 X C1,C2:15(1±20%)PF other(10/22/30/33/39/47pF) 5101 Hidden Creek Ln Spicewood TX 78669 ABRACON IS Phone: 512-371-6159 | Fax: 512-351-8858
REVISED: 04-17-19
ISO9001-2015
LLC
For terms and conditions of sales, please visit: CERTIFIED www.abracon.com
