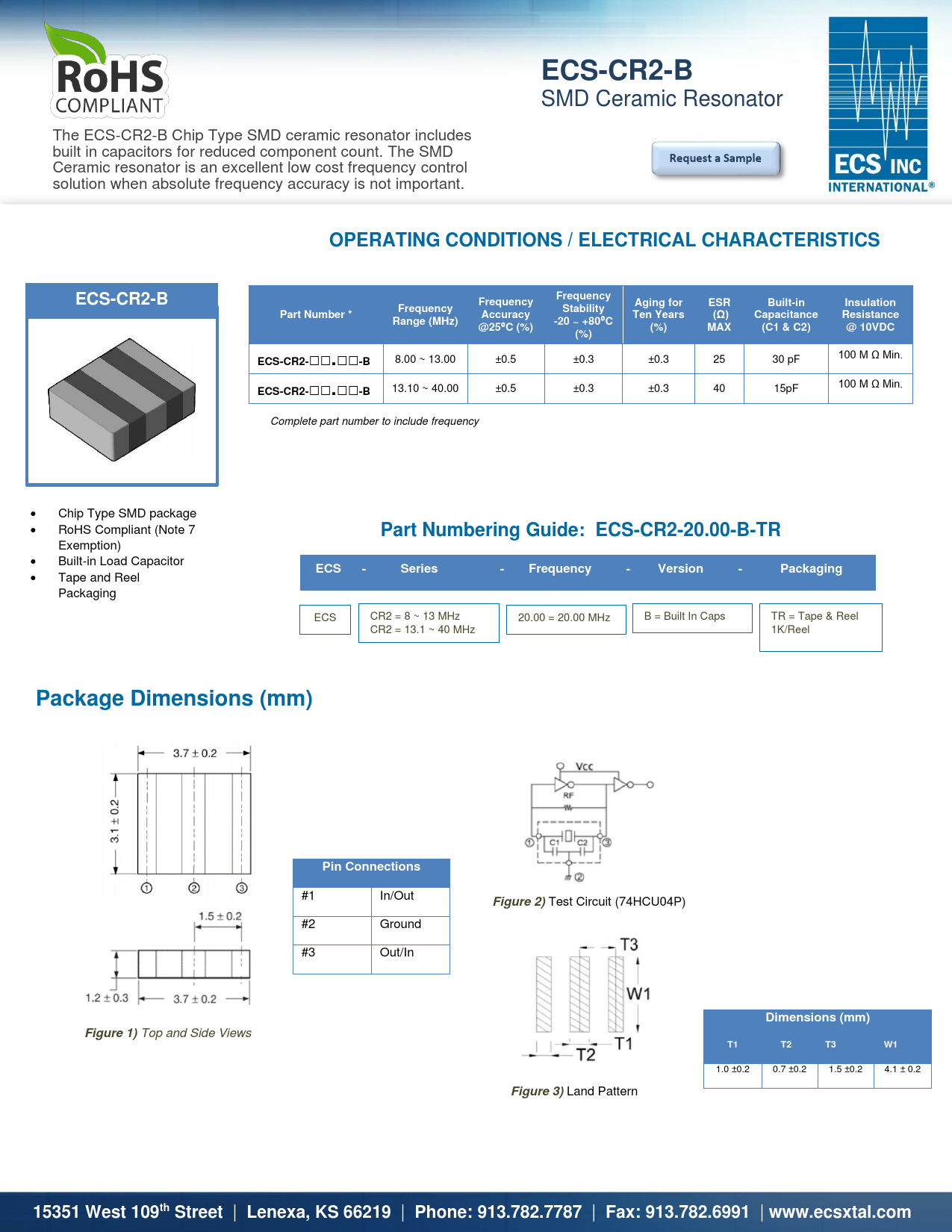

ECS-CR2-B
SMD Ceramic Resonator The ECS-CR2-B Chip Type SMD ceramic resonator includes built in capacitors for reduced component count. The SMD
Request a Sample
Ceramic resonator is an excellent low cost frequency control solution when absolute frequency accuracy is not important.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS Frequency ECS-CR2-B Frequency Aging for ESR Built-in Insulation Frequency Stability Part Number * Accuracy Ten Years (Ω) Capacitance Resistance Range (MHz) -20 ~ +80
⁰
C @25
⁰
C (%) (%) MAX (C1 & C2) @ 10VDC (%)
100 M Ω Min.
ECS-CR2-□□.□□-B
8.00 ~ 13.00 ±0.5 ±0.3 ±0.3 25 30 pF 100 M Ω Min.
ECS-CR2-□□.□□-B
13.10 ~ 40.00 ±0.5 ±0.3 ±0.3 40 15pF Complete part number to include frequency • Chip Typ e SMD package • RoHS Compliant (Note 7
Part Numbering Guide: ECS-CR2-20.00-B-TR
Exemption) • Built-in Load Capacitor •
ECS - Series - Frequency - Version - Packaging
Tape and Reel Packag ing ECS CR2 = 8 ~ 13 MHz 20.00 = 20.00 MHz B = Built In Caps TR = Tape & Reel CR2 = 13.1 ~ 40 MHz 1K/Reel
Package Dimensions (mm) Pin Connections
#1 In/Out
Figure 2)
Test Circuit (74HCU04P) #2 Ground #3 Out/In
Dimensions (mm) Figure 1)
Top and Side Views
T1 T2 T3 W1
1.0 ±0.2 0.7 ±0.2 1.5 ±0.2 4.1 ± 0.2
Figure 3)
Land Pattern
