Datasheet STA8610A (STMicroelectronics) - 2
| Hersteller | STMicroelectronics |
| Beschreibung | Automotive TeseoVI+ Quad-bands GNSS Receiver |
| Seiten / Seite | 7 / 2 — STA8610A. Core peripherals. Power management unit. DB5485. Rev 1. page 2/7 |
| Dateiformat / Größe | PDF / 413 Kb |
| Dokumentensprache | Englisch |

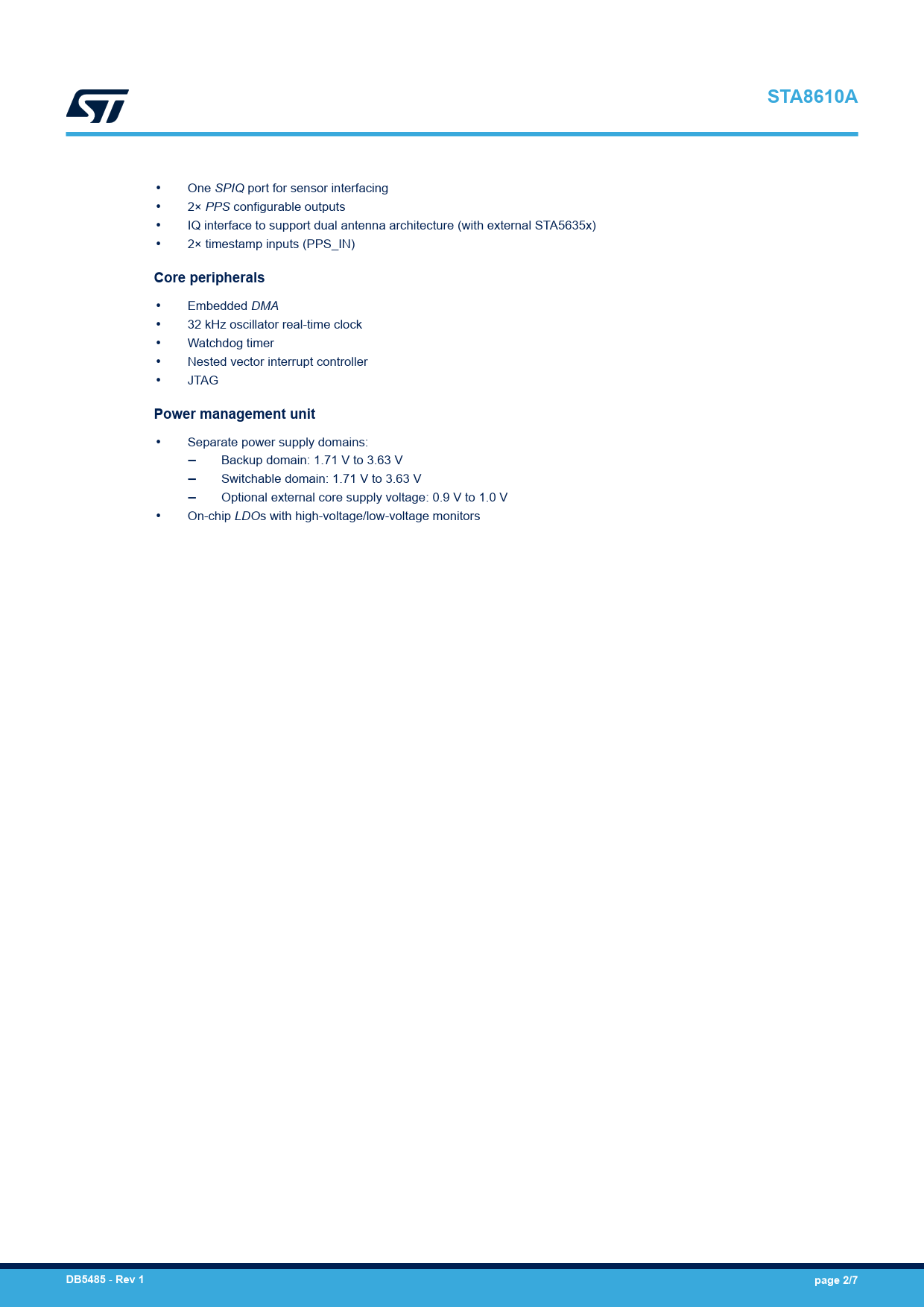

STA8610A. Core peripherals. Power management unit. DB5485. Rev 1. page 2/7
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 6 link to page 5 link to page 5 link to page 5
STA8610A
• One SPIQ port for sensor interfacing • 2× PPS configurable outputs • IQ interface to support dual antenna architecture (with external STA5635x) • 2× timestamp inputs (PPS_IN)
Core peripherals
• Embedded DMA • 32 kHz oscillator real-time clock • Watchdog timer • Nested vector interrupt controller • JTAG
Power management unit
• Separate power supply domains: – Backup domain: 1.71 V to 3.63 V – Switchable domain: 1.71 V to 3.63 V – Optional external core supply voltage: 0.9 V to 1.0 V • On-chip LDOs with high-voltage/low-voltage monitors
DB5485
-
Rev 1 page 2/7
