Datasheet AWSCR-CW (Abracon) - 3
| Hersteller | Abracon |
| Beschreibung | SMD Ceramic Resonator with Internal Capacitors |
| Seiten / Seite | 3 / 3 — 2.5X2.0mm INDUSTRIAL GRADE BUILT-IN CAPACITANCE. CERAMIC RESONATOR. … |
| Dateiformat / Größe | PDF / 1.8 Mb |
| Dokumentensprache | Englisch |
2.5X2.0mm INDUSTRIAL GRADE BUILT-IN CAPACITANCE. CERAMIC RESONATOR. RoHS/RoHS II compliant. Pb in ceramic, exemption (7c-I)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

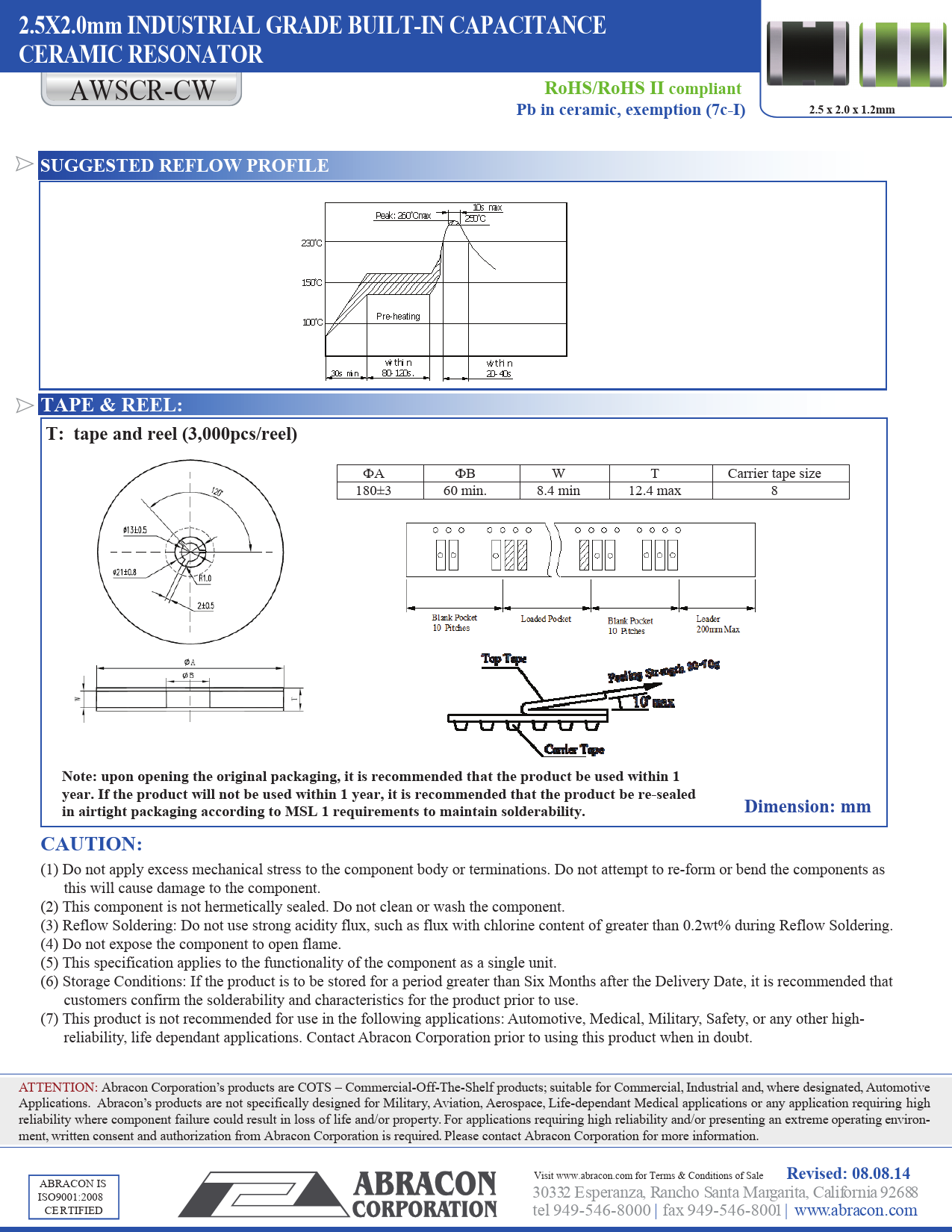

2.5X2.0mm INDUSTRIAL GRADE BUILT-IN CAPACITANCE CERAMIC RESONATOR
AWSCR-CW
RoHS/RoHS II compliant Pb in ceramic, exemption (7c-I) 2.5 x 2.0 x 1.2mm SUGGESTED REFLOW PROFILE TAPE & REEL: T: tape and reel (3,000pcs/reel)
ФA ФB W T Carrier tape size 18 0±3 60 min. 8.4 min 12.4 max 8
Note: upon opening the original packaging, it is recommended that the product be used within 1 year. If the product will not be used within 1 year, it is recommended that the product be re-sealed in airtight packaging according to MSL 1 requirements to maintain solderability. Dimension: mm CAUTION:
(1) Do not apply excess mechanical stress to the component body or terminations. Do not attempt to re-form or bend the components as this will cause damage to the component. (2) This component is not hermetically sealed. Do not clean or wash the component. (3) Reflow Soldering: Do not use strong acidity flux, such as flux with chlorine content of greater than 0.2wt% during Reflow Soldering. (4) Do not expose the component to open flame. (5) This specification applies to the functionality of the component as a single unit. (6) Storage Conditions: If the product is to be stored for a period greater than Six Months after the Delivery Date, it is recommended that customers confirm the solderability and characteristics for the product prior to use. (7) This product is not recommended for use in the following applications: Automotive, Medical, Military, Safety, or any other high- reliability, life dependant applications. Contact Abracon Corporation prior to using this product when in doubt. ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Ap plications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reli ability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environ- men t, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. Visit www.abracon.com for Terms & Conditions of Sale
