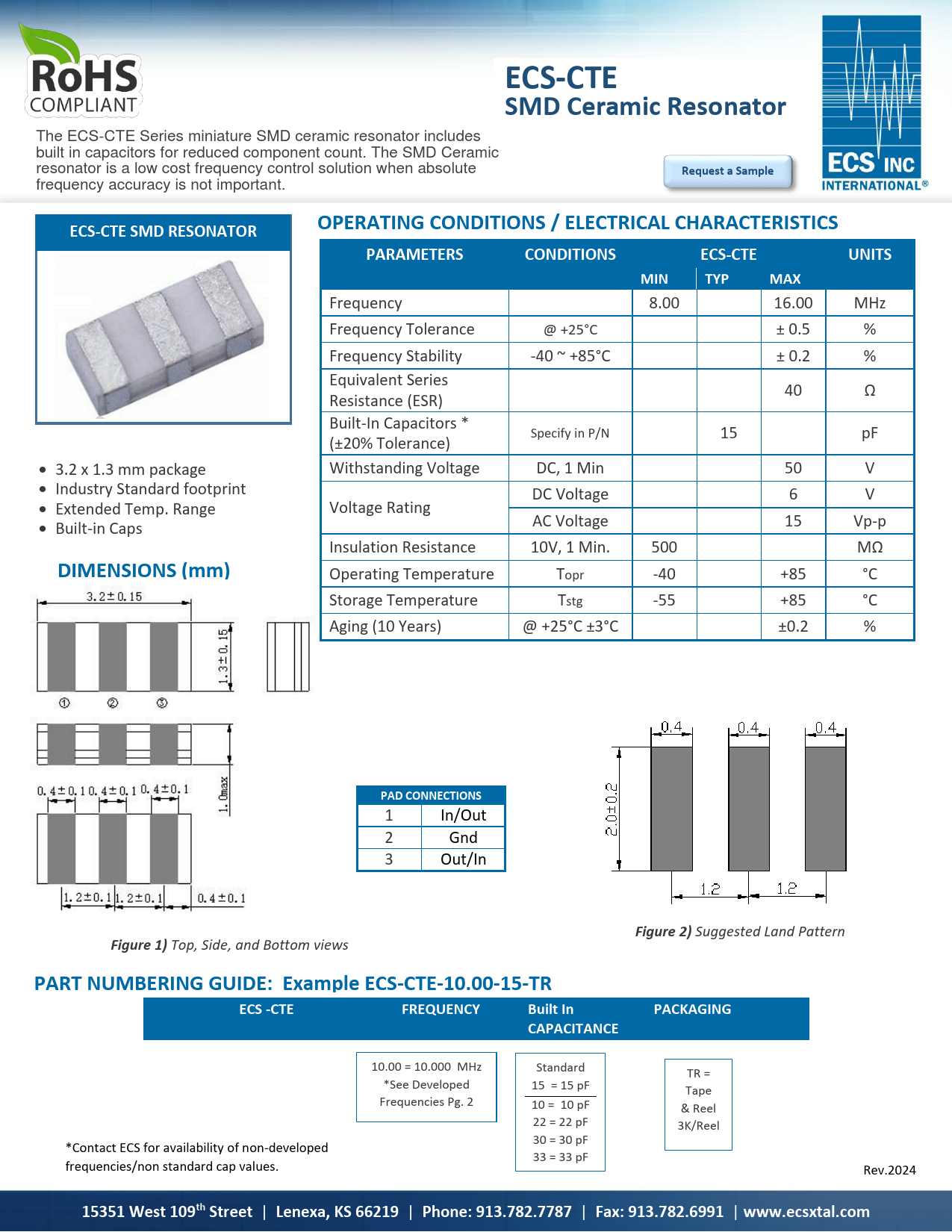

Datasheet ECS-CTE (ECS Inc.)

ECS-CTE SMD Ceramic Resonator
The ECS-CTE Series miniature SMD ceramic resonator includes built in capacitors for reduced component count. The SMD Ceramic resonator is a low cost frequency control solution when absolute
Request a Sample
frequency accuracy is not important.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS ECS-CTE SMD RESONATOR PARAMETERS CONDITIONS ECS-CTE UNITS MIN TYP MAX
Frequency 8.00 16.00 MHz Frequency Tolerance @ +25°C ± 0.5 % Frequency Stability -40 ~ +85°C ± 0.2 % Equivalent Series 40 Ω Resistance (ESR) Built-In Capacitors * Specify in P/N 15 pF (±20% Tolerance) • 3.2 x 1.3 mm package Withstanding Voltage DC, 1 Min 50 V • Industry Standard footprint DC Voltage 6 V • Extended Temp. Range Voltage Rating AC Voltage 15 Vp-p • Built-in Caps Insulation Resistance 10V, 1 Min. 500 MΩ
DIMENSIONS (mm)
Operating Temperature Topr -40 +85 °C Storage Temperature Tstg -55 +85 °C Aging (10 Years) @ +25°C ±3°C ±0.2 %
PAD CONNECTIONS
1 In/Out 2 Gnd 3 Out/In
Figure 2)
Suggested Land Pattern
Figure 1)
Top, Side, and Bottom views
PART NUMBERING GUIDE: Example ECS-CTE-10.00-15-TR ECS -CTE FREQUENCY Built In PACKAGING CAPACITANCE
10.00 = 10.000 MHz Standard TR = *See Developed 15 = 15 pF Tape Frequencies Pg. 2 10 = 10 pF & Reel 22 = 22 pF 3K/Reel 30 = 30 pF *Contact ECS for availability of non-developed 33 = 33 pF frequen cies/non standard cap values. Rev.2024
