Datasheet AWSCR-CV (Abracon) - 2
| Hersteller | Abracon |
| Beschreibung | 3.7 x 3.1mm Industrial Grade Built-in Capacitance Ceramic Resonator |
| Seiten / Seite | 3 / 2 — 3.7 x 3.1mm Industrial Grade Built-in Capacitance Ceramic Resonator. … |
| Dateiformat / Größe | PDF / 1.2 Mb |
| Dokumentensprache | Englisch |

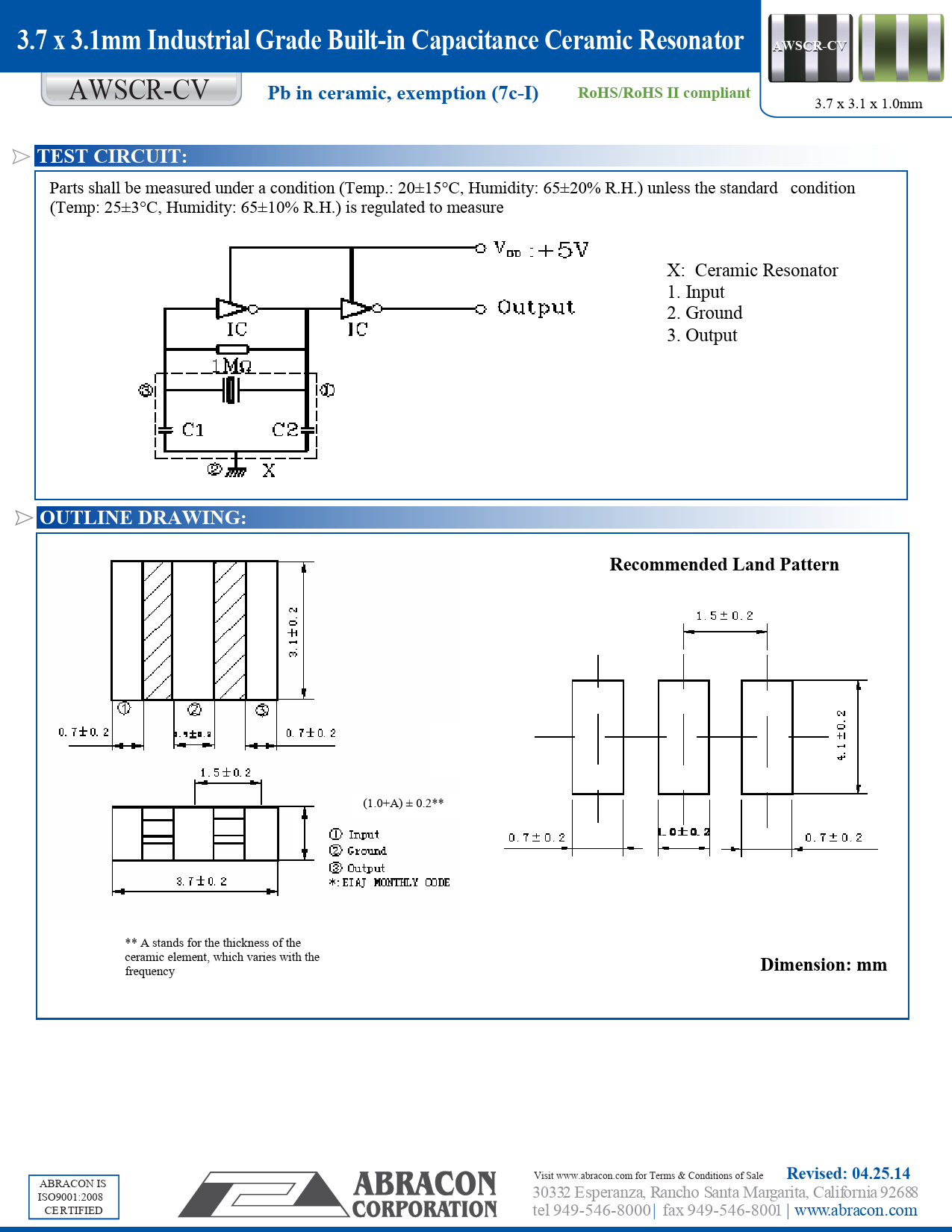

3.7 x 3.1mm Industrial Grade Built-in Capacitance Ceramic Resonator. AWSCR-CV. Pb in ceramic, exemption (7c-I)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
3.7 x 3.1mm Industrial Grade Built-in Capacitance Ceramic Resonator AWSCR-CV A
AWSCR-CV
Pb in ceramic, exemption (7c-I) RoHS/RoHS II compliant
3.7 x 3.1 x 1.0mm
TEST CIRCUIT:
Parts shall be measured under a condition (Temp.: 20±15°C, Humidity: 65±20% R.H.) unless the standard condition (Temp: 25±3°C, Humidity: 65±10% R.H.) is regulated to measure X: Ceramic Resonator 1. Input 2. Ground 3. Output
OUTLINE DRAWING: Recommended Land Pattern
(1.0+A) ± 0.2** ** A stands for the thickness of the ceramic element, which varies with the frequency
Dimension: mm
Visit www.abracon.com for Terms & Conditions of Sale
Revised: 04.25.14
ABRACON IS ISO9001:2008 30332 Esperanza, Rancho Santa Margarita, California 92688 CERTIFIED tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
AWSCR-CV
Pb in ceramic, exemption (7c-I) RoHS/RoHS II compliant
3.7 x 3.1 x 1.0mm
TEST CIRCUIT:
Parts shall be measured under a condition (Temp.: 20±15°C, Humidity: 65±20% R.H.) unless the standard condition (Temp: 25±3°C, Humidity: 65±10% R.H.) is regulated to measure X: Ceramic Resonator 1. Input 2. Ground 3. Output
OUTLINE DRAWING: Recommended Land Pattern
(1.0+A) ± 0.2** ** A stands for the thickness of the ceramic element, which varies with the frequency
Dimension: mm
Visit www.abracon.com for Terms & Conditions of Sale
Revised: 04.25.14
ABRACON IS ISO9001:2008 30332 Esperanza, Rancho Santa Margarita, California 92688 CERTIFIED tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
