DG2001E
www.vishay.com Vishay Siliconix

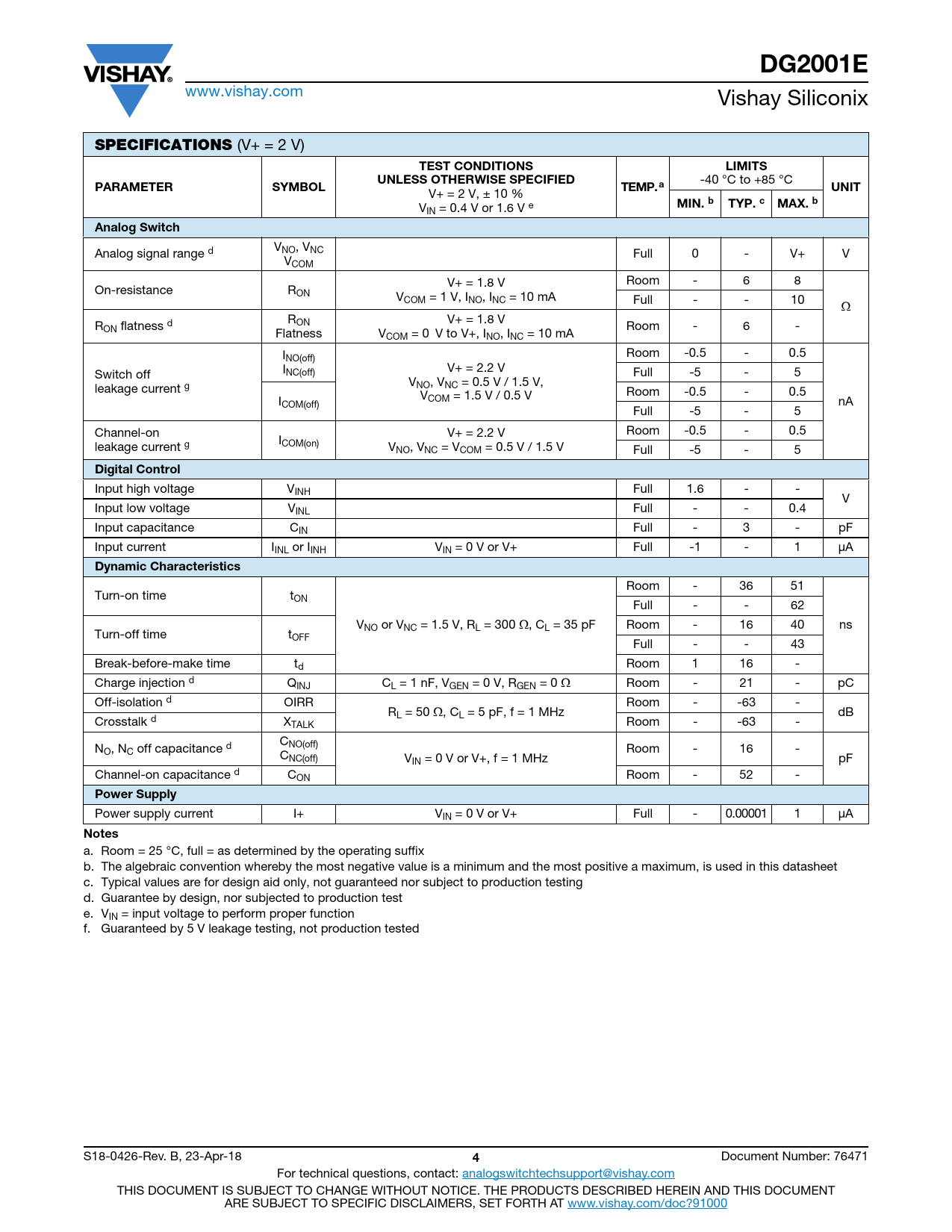

SPECIFICATIONS
(V+ = 2 V)
TEST CONDITIONS LIMITS UNLESS OTHERWISE SPECIFIED
-40 °C to +85 °C
PARAMETER SYMBOL TEMP. a UNIT
V+ = 2 V, ± 10 % V
MIN. b TYP. c MAX. b
IN = 0.4 V or 1.6 V e
Analog Switch
Analog signal range d VNO, VNC Full 0 - V+ V VCOM V+ = 1.8 V Room - 6 8 On-resistance RON VCOM = 1 V, INO, INC = 10 mA Full - - 10 V+ = 1.8 V RON flatness d RON Room - 6 - Flatness VCOM = 0 V to V+, INO, INC = 10 mA I Room -0.5 - 0.5 NO(off) V+ = 2.2 V Switch off  INC(off) Full -5 - 5 V leakage current g NO, VNC = 0.5 V / 1.5 V, V Room -0.5 - 0.5 COM = 1.5 V / 0.5 V ICOM(off) nA Full -5 - 5 Channel-on  V+ = 2.2 V Room -0.5 - 0.5 leakage current g ICOM(on) VNO, VNC = VCOM = 0.5 V / 1.5 V Full -5 - 5
Digital Control
Input high voltage VINH Full 1.6 - - V Input low voltage VINL Full - - 0.4 Input capacitance CIN Full - 3 - pF Input current IINL or IINH VIN = 0 V or V+ Full -1 - 1 μA
Dynamic Characteristics
Room - 36 51 Turn-on time tON Full - - 62 VNO or VNC = 1.5 V, RL = 300 , CL = 35 pF Room - 16 40 ns Turn-off time tOFF Full - - 43 Break-before-make time td Room 1 16 - Charge injection d QINJ CL = 1 nF, VGEN = 0 V, RGEN = 0 Room - 21 - pC Off-isolation d OIRR Room - -63 - RL = 50 , CL = 5 pF, f = 1 MHz dB Crosstalk d XTALK Room - -63 - NO, NC off capacitance d CNO(off) Room - 16 - CNC(off) VIN = 0 V or V+, f = 1 MHz pF Channel-on capacitance d CON Room - 52 -
Power Supply
Power supply current I+ VIN = 0 V or V+ Full - 0.00001 1 μA
Notes
a. Room = 25 °C, full = as determined by the operating suffix b. The algebraic convention whereby the most negative value is a minimum and the most positive a maximum, is used in this datasheet c. Typical values are for design aid only, not guaranteed nor subject to production testing d. Guarantee by design, nor subjected to production test e. VIN = input voltage to perform proper function f. Guaranteed by 5 V leakage testing, not production tested S18-0426-Rev. B, 23-Apr-18
