Datasheet LM389 (National Semiconductor) - 4
| Hersteller | National Semiconductor |
| Beschreibung | LM389 Low Voltage Audio Power Amplifier with NPN Transistor Array |
| Seiten / Seite | 8 / 4 — Typical. Transistor. Performance. Characteristics. Forward. Current. … |
| Dateiformat / Größe | PDF / 211 Kb |
| Dokumentensprache | Englisch |
Typical. Transistor. Performance. Characteristics. Forward. Current. Transfer. Ratio. Saturation. Voltage. vs. Open. Circuit. Output. Admittance. vs
Modelllinie für dieses Datenblatt
Textversion des Dokuments

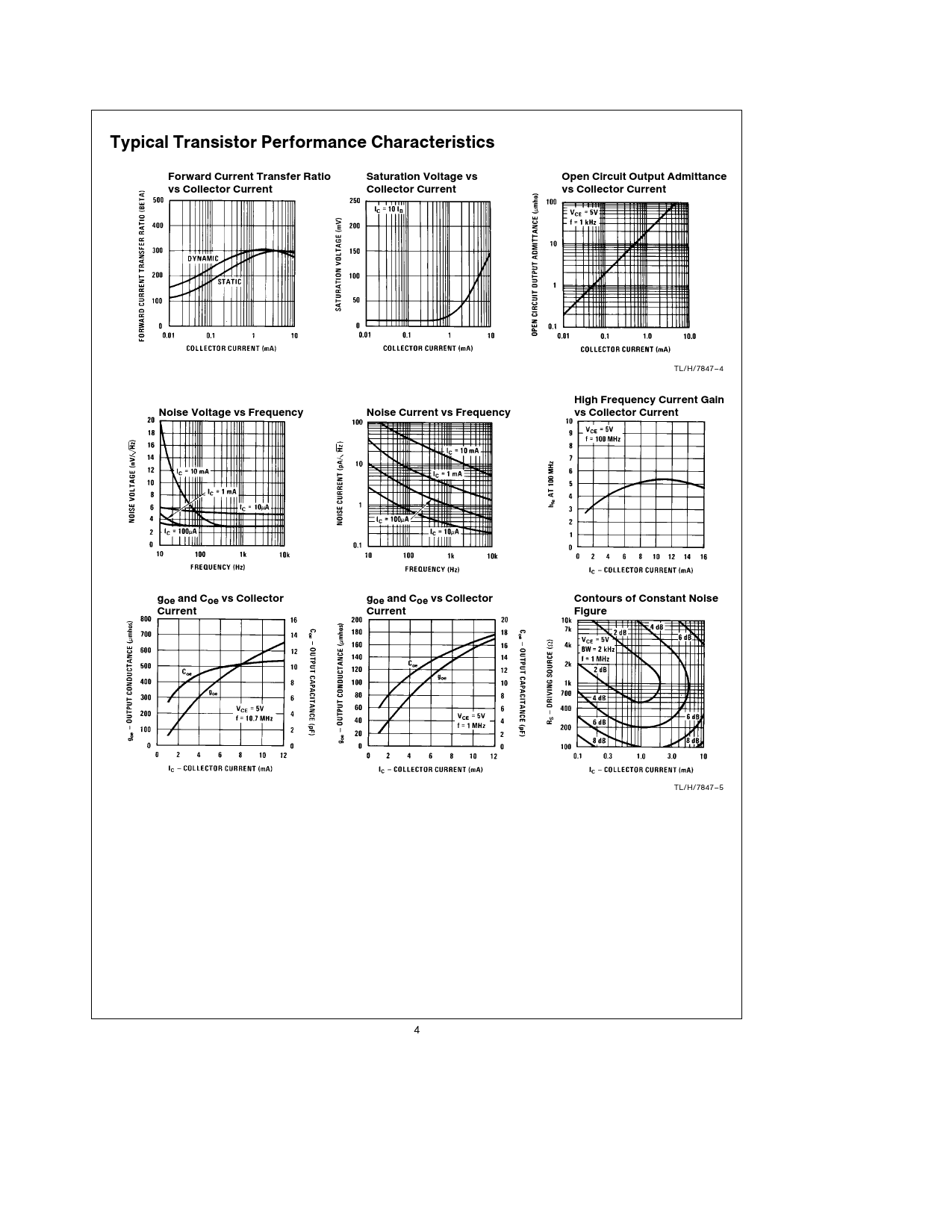

Typical Transistor Performance Characteristics Forward Current Transfer Ratio Saturation Voltage vs Open Circuit Output Admittance vs Collector Current Collector Current vs Collector Current TL/H/7847 – 4 High Frequency Current Gain Noise Voltage vs Frequency Noise Current vs Frequency vs Collector Current goe and Coe vs Collector goe and Coe vs Collector Contours of Constant Noise Current Current Figure TL/H/7847 – 5 4
