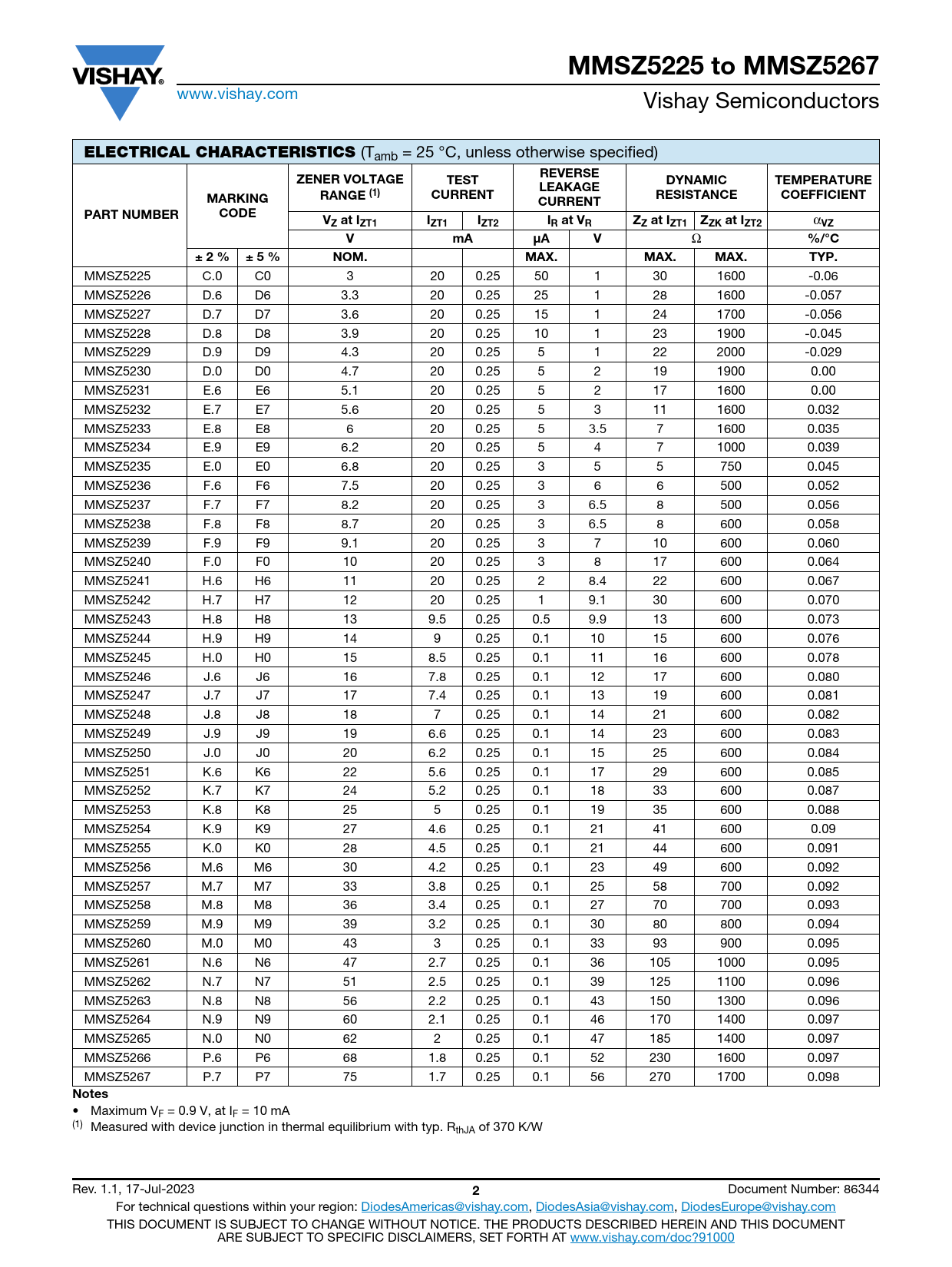

MMSZ5225 to MMSZ5267
www.vishay.com Vishay Semiconductors
ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
REVERSE ZENER VOLTAGE TEST DYNAMIC TEMPERATURE LEAKAGE MARKING RANGE (1) CURRENT RESISTANCE COEFFICIENT CURRENT PART NUMBER CODE VZ at IZT1 IZT1 IZT2 IR at VR ZZ at IZT1 ZZK at IZT2
α
VZ V mA μA V
Ω
%/°C ± 2 % ± 5 % NOM. MAX. MAX. MAX. TYP.
MMSZ5225 C.0 C0 3 20 0.25 50 1 30 1600 -0.06 MMSZ5226 D.6 D6 3.3 20 0.25 25 1 28 1600 -0.057 MMSZ5227 D.7 D7 3.6 20 0.25 15 1 24 1700 -0.056 MMSZ5228 D.8 D8 3.9 20 0.25 10 1 23 1900 -0.045 MMSZ5229 D.9 D9 4.3 20 0.25 5 1 22 2000 -0.029 MMSZ5230 D.0 D0 4.7 20 0.25 5 2 19 1900 0.00 MMSZ5231 E.6 E6 5.1 20 0.25 5 2 17 1600 0.00 MMSZ5232 E.7 E7 5.6 20 0.25 5 3 11 1600 0.032 MMSZ5233 E.8 E8 6 20 0.25 5 3.5 7 1600 0.035 MMSZ5234 E.9 E9 6.2 20 0.25 5 4 7 1000 0.039 MMSZ5235 E.0 E0 6.8 20 0.25 3 5 5 750 0.045 MMSZ5236 F.6 F6 7.5 20 0.25 3 6 6 500 0.052 MMSZ5237 F.7 F7 8.2 20 0.25 3 6.5 8 500 0.056 MMSZ5238 F.8 F8 8.7 20 0.25 3 6.5 8 600 0.058 MMSZ5239 F.9 F9 9.1 20 0.25 3 7 10 600 0.060 MMSZ5240 F.0 F0 10 20 0.25 3 8 17 600 0.064 MMSZ5241 H.6 H6 11 20 0.25 2 8.4 22 600 0.067 MMSZ5242 H.7 H7 12 20 0.25 1 9.1 30 600 0.070 MMSZ5243 H.8 H8 13 9.5 0.25 0.5 9.9 13 600 0.073 MMSZ5244 H.9 H9 14 9 0.25 0.1 10 15 600 0.076 MMSZ5245 H.0 H0 15 8.5 0.25 0.1 11 16 600 0.078 MMSZ5246 J.6 J6 16 7.8 0.25 0.1 12 17 600 0.080 MMSZ5247 J.7 J7 17 7.4 0.25 0.1 13 19 600 0.081 MMSZ5248 J.8 J8 18 7 0.25 0.1 14 21 600 0.082 MMSZ5249 J.9 J9 19 6.6 0.25 0.1 14 23 600 0.083 MMSZ5250 J.0 J0 20 6.2 0.25 0.1 15 25 600 0.084 MMSZ5251 K.6 K6 22 5.6 0.25 0.1 17 29 600 0.085 MMSZ5252 K.7 K7 24 5.2 0.25 0.1 18 33 600 0.087 MMSZ5253 K.8 K8 25 5 0.25 0.1 19 35 600 0.088 MMSZ5254 K.9 K9 27 4.6 0.25 0.1 21 41 600 0.09 MMSZ5255 K.0 K0 28 4.5 0.25 0.1 21 44 600 0.091 MMSZ5256 M.6 M6 30 4.2 0.25 0.1 23 49 600 0.092 MMSZ5257 M.7 M7 33 3.8 0.25 0.1 25 58 700 0.092 MMSZ5258 M.8 M8 36 3.4 0.25 0.1 27 70 700 0.093 MMSZ5259 M.9 M9 39 3.2 0.25 0.1 30 80 800 0.094 MMSZ5260 M.0 M0 43 3 0.25 0.1 33 93 900 0.095 MMSZ5261 N.6 N6 47 2.7 0.25 0.1 36 105 1000 0.095 MMSZ5262 N.7 N7 51 2.5 0.25 0.1 39 125 1100 0.096 MMSZ5263 N.8 N8 56 2.2 0.25 0.1 43 150 1300 0.096 MMSZ5264 N.9 N9 60 2.1 0.25 0.1 46 170 1400 0.097 MMSZ5265 N.0 N0 62 2 0.25 0.1 47 185 1400 0.097 MMSZ5266 P.6 P6 68 1.8 0.25 0.1 52 230 1600 0.097 MMSZ5267 P.7 P7 75 1.7 0.25 0.1 56 270 1700 0.098
Notes
• Maximum VF = 0.9 V, at IF = 10 mA (1) Measured with device junction in thermal equilibrium with typ. RthJA of 370 K/W Rev. 1.1, 17-Jul-2023
