Nexperia. 74HC14; 74HCT14 Hex inverting Schmitt trigger. 6.2. Pin description. Table 2. Pin description. Symbol. Pin. Description
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 3 link to page 3 link to page 3

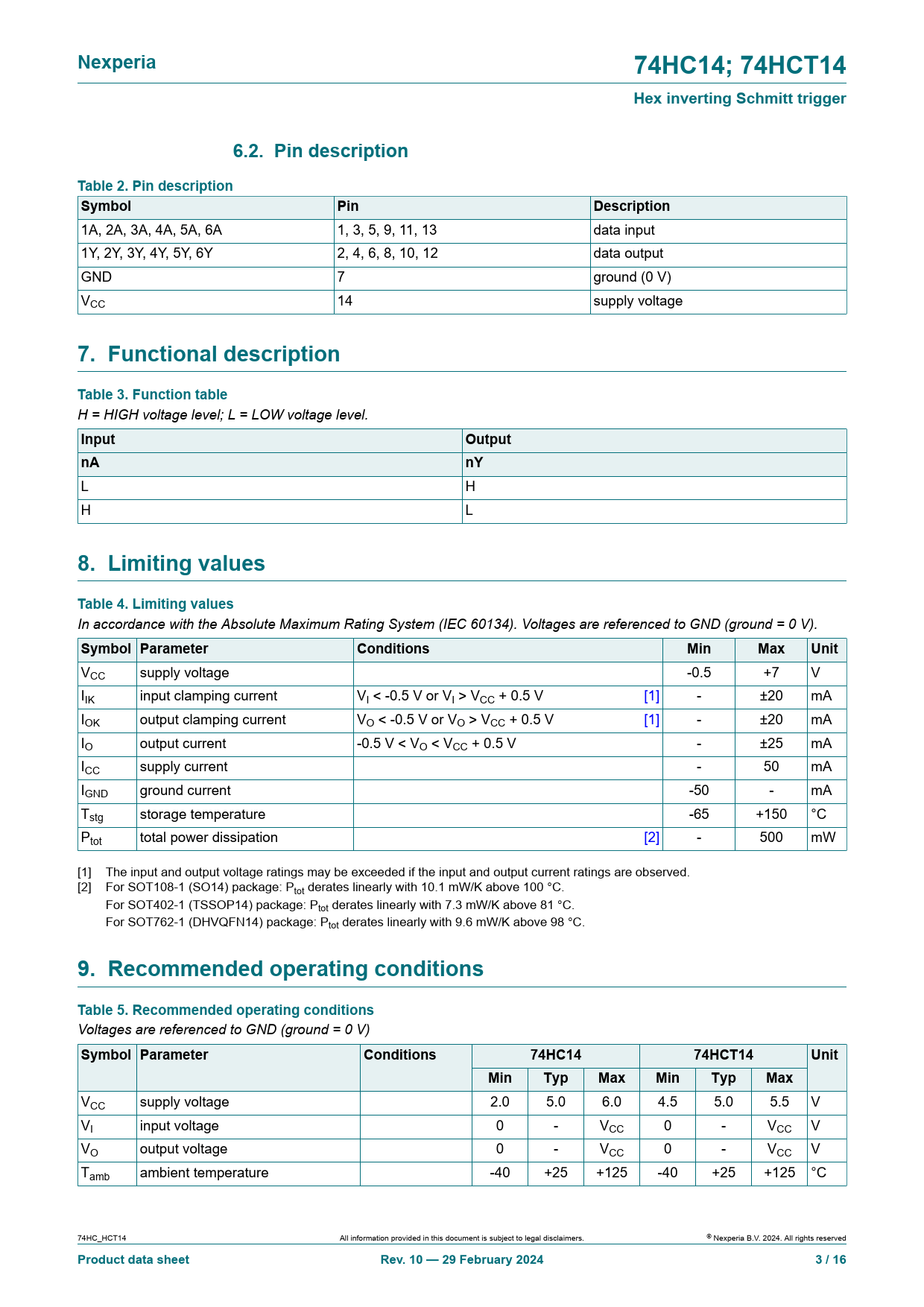

Nexperia 74HC14; 74HCT14 Hex inverting Schmitt trigger 6.2. Pin description Table 2. Pin description Symbol Pin Description
1A, 2A, 3A, 4A, 5A, 6A 1, 3, 5, 9, 11, 13 data input 1Y, 2Y, 3Y, 4Y, 5Y, 6Y 2, 4, 6, 8, 10, 12 data output GND 7 ground (0 V) VCC 14 supply voltage
7. Functional description Table 3. Function table
H = HIGH voltage level; L = LOW voltage level.
Input Output nA nY
L H H L
8. Limiting values Table 4. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V).
Symbol Parameter Conditions Min Max Unit
VCC supply voltage -0.5 +7 V IIK input clamping current VI < -0.5 V or VI > VCC + 0.5 V [1] - ±20 mA IOK output clamping current VO < -0.5 V or VO > VCC + 0.5 V [1] - ±20 mA IO output current -0.5 V < VO < VCC + 0.5 V - ±25 mA ICC supply current - 50 mA IGND ground current -50 - mA Tstg storage temperature -65 +150 °C Ptot total power dissipation [2] - 500 mW [1] The input and output voltage ratings may be exceeded if the input and output current ratings are observed. [2] For SOT108-1 (SO14) package: Ptot derates linearly with 10.1 mW/K above 100 °C. For SOT402-1 (TSSOP14) package: Ptot derates linearly with 7.3 mW/K above 81 °C. For SOT762-1 (DHVQFN14) package: Ptot derates linearly with 9.6 mW/K above 98 °C.
9. Recommended operating conditions Table 5. Recommended operating conditions
Voltages are referenced to GND (ground = 0 V)
Symbol Parameter Conditions 74HC14 74HCT14 Unit Min Typ Max Min Typ Max
VCC supply voltage 2.0 5.0 6.0 4.5 5.0 5.5 V VI input voltage 0 - VCC 0 - VCC V VO output voltage 0 - VCC 0 - VCC V Tamb ambient temperature -40 +25 +125 -40 +25 +125 °C 74HC_HCT14 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2024. Al rights reserved
Product data sheet Rev. 10 — 29 February 2024 3 / 16
