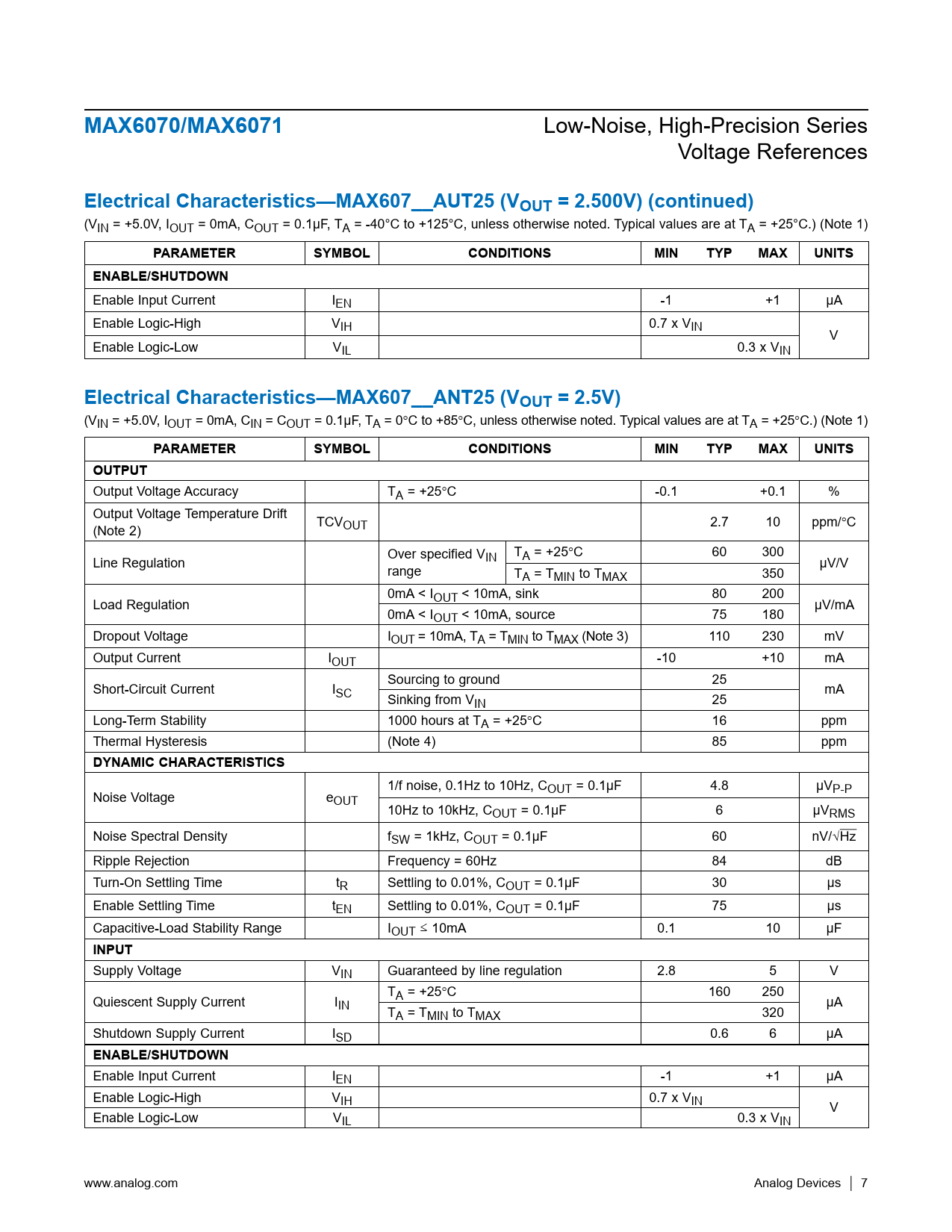

MAX6070/MAX6071
Low-Noise, High-Precision Series Voltage References
Electrical Characteristics—MAX607__AUT25 (VOUT = 2.500V) (continued)
(VIN = +5.0V, IOUT = 0mA, COUT = 0.1µF, TA = -40°C to +125°C, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS ENABLE/SHUTDOWN
Enable Input Current IEN -1 +1 µA Enable Logic-High VIH 0.7 x VIN V Enable Logic-Low VIL 0.3 x VIN
Electrical Characteristics—MAX607__ANT25 (VOUT = 2.5V)
(VIN = +5.0V, IOUT = 0mA, CIN = COUT = 0.1µF, TA = 0°C to +85°C, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
Output Voltage Accuracy TA = +25°C -0.1 +0.1 % Output Voltage Temperature Drift (Note 2) TCVOUT 2.7 10 ppm/°C T Line Regulation Over specified VIN A = +25°C 60 300 range µV/V TA = TMIN to TMAX 350 0mA < I Load Regulation OUT < 10mA, sink 80 200 µV/mA 0mA < IOUT < 10mA, source 75 180 Dropout Voltage IOUT = 10mA, TA = TMIN to TMAX (Note 3) 110 230 mV Output Current IOUT -10 +10 mA Sourcing to ground 25 Short-Circuit Current ISC mA Sinking from VIN 25 Long-Term Stability 1000 hours at TA = +25°C 16 ppm Thermal Hysteresis (Note 4) 85 ppm
DYNAMIC CHARACTERISTICS
1/f noise, 0.1Hz to 10Hz, C Noise Voltage e OUT = 0.1µF 4.8 µVP-P OUT 10Hz to 10kHz, COUT = 0.1µF 6 µVRMS Noise Spectral Density fSW = 1kHz, COUT = 0.1µF 60 nV/√Hz Ripple Rejection Frequency = 60Hz 84 dB Turn-On Settling Time tR Settling to 0.01%, COUT = 0.1µF 30 µs Enable Settling Time tEN Settling to 0.01%, COUT = 0.1µF 75 µs Capacitive-Load Stability Range IOUT ≤ 10mA 0.1 10 µF
INPUT
Supply Voltage VIN Guaranteed by line regulation 2.8 5 V T Quiescent Supply Current I A = +25°C 160 250 IN µA TA = TMIN to TMAX 320 Shutdown Supply Current ISD 0.6 6 µA
ENABLE/SHUTDOWN
Enable Input Current IEN -1 +1 µA Enable Logic-High VIH 0.7 x VIN V Enable Logic-Low VIL 0.3 x VIN www.analog.com Analog Devices │ 7
