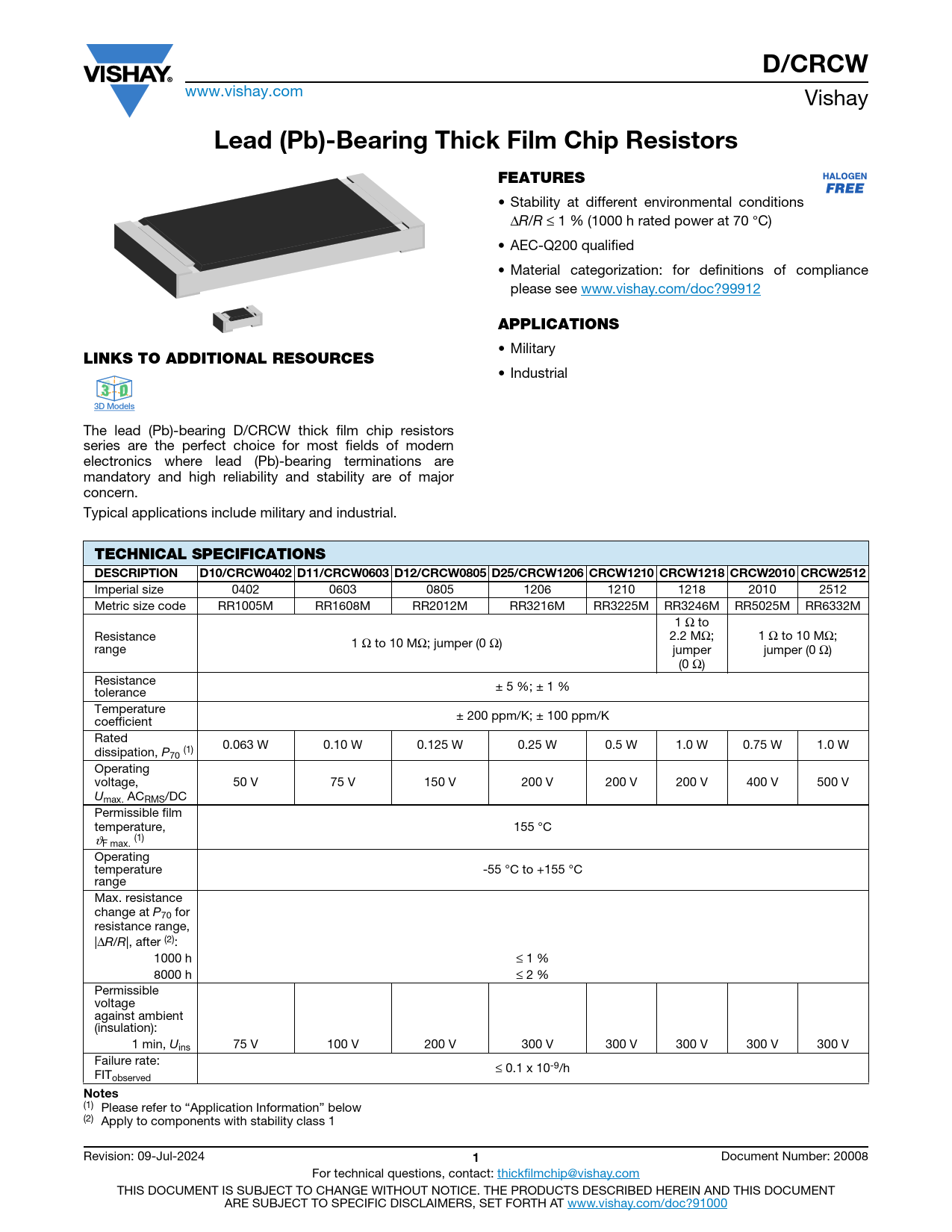

Datasheet CRCW0603 (Vishay)

D/CRCW
www.vishay.com Vishay
Lead (Pb)-Bearing Thick Film Chip Resistors FEATURES
• Stability at different environmental conditions ΔR/R ≤ 1 % (1000 h rated power at 70 °C) • AEC-Q200 qualified • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
APPLICATIONS LINKS TO ADDITIONAL RESOURCES
• Military • Industrial
D 3 3 D 3D Models
The lead (Pb)-bearing D/CRCW thick film chip resistors series are the perfect choice for most fields of modern electronics where lead (Pb)-bearing terminations are mandatory and high reliability and stability are of major concern. Typical applications include military and industrial.
TECHNICAL SPECIFICATIONS DESCRIPTION D10/CRCW0402 D11/CRCW0603 D12/CRCW0805 D25/CRCW1206 CRCW1210 CRCW1218 CRCW2010 CRCW2512
Imperial size 0402 0603 0805 1206 1210 1218 2010 2512 Metric size code RR1005M RR1608M RR2012M RR3216M RR3225M RR3246M RR5025M RR6332M 1 Ω to Resistance 2.2 MΩ; 1 Ω to 10 MΩ; 1 Ω to 10 MΩ; jumper (0 Ω) range jumper jumper (0 Ω) (0 Ω) Resistance ± 5 %; ± 1 % tolerance Temperature ± 200 ppm/K; ± 100 ppm/K coefficient Rated dissipation, P70 (1) 0.063 W 0.10 W 0.125 W 0.25 W 0.5 W 1.0 W 0.75 W 1.0 W Operating voltage, 50 V 75 V 150 V 200 V 200 V 200 V 400 V 500 V Umax. ACRMS/DC Permissible film temperature, 155 °C ϑF max. (1) Operating temperature -55 °C to +155 °C range Max. resistance change at P70 for resistance range, |ΔR/R|, after (2): 1000 h ≤ 1 % 8000 h ≤ 2 % Permissible voltage against ambient (insulation): 1 min, Uins 75 V 100 V 200 V 300 V 300 V 300 V 300 V 300 V Failure rate: ≤ 0.1 x 10-9/h FITobserved
Notes
(1) Please refer to “Application Information” below (2) Apply to components with stability class 1 Revision: 09-Jul-2024
1
Document Number: 20008 For technical questions, contact: thickfilmchip@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
