2N4401 / MMBT4401. — NPN General-Purpose Amplifier. NPN General-Purpose Amplifier. Description. TO-92. SOT-23. E B C. Mark:2X
Modelllinie für dieses Datenblatt
Textversion des Dokuments

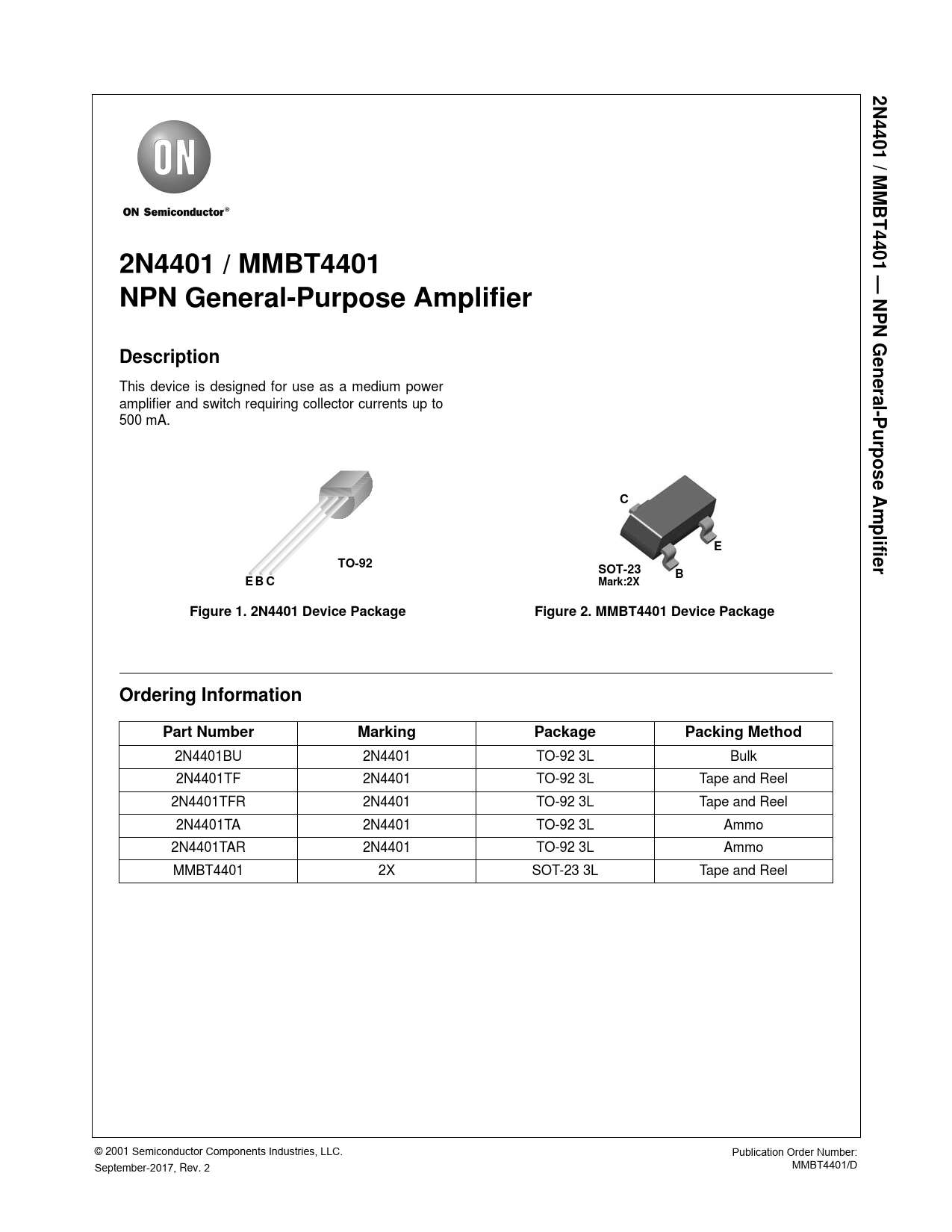

2N4401 / MMBT4401 2N4401 / MMBT4401 — NPN General-Purpose Amplifier NPN General-Purpose Amplifier Description
This device is designed for use as a medium power amplifier and switch requiring collector currents up to 500 mA.
C E TO-92 SOT-23 B E B C Mark:2X Figure 1. 2N4401 Device Package Figure 2. MMBT4401 Device Package Ordering Information Part Number Marking Package Packing Method
2N4401BU 2N4401 TO-92 3L Bulk 2N4401TF 2N4401 TO-92 3L Tape and Reel 2N4401TFR 2N4401 TO-92 3L Tape and Reel 2N4401TA 2N4401 TO-92 3L Ammo 2N4401TAR 2N4401 TO-92 3L Ammo MMBT4401 2X SOT-23 3L Tape and Reel © 2001 Semiconductor Components Industries, LLC. Publication Order Number: September-2017, Rev. 2 MMBT4401/D
This device is designed for use as a medium power amplifier and switch requiring collector currents up to 500 mA.
C E TO-92 SOT-23 B E B C Mark:2X Figure 1. 2N4401 Device Package Figure 2. MMBT4401 Device Package Ordering Information Part Number Marking Package Packing Method
2N4401BU 2N4401 TO-92 3L Bulk 2N4401TF 2N4401 TO-92 3L Tape and Reel 2N4401TFR 2N4401 TO-92 3L Tape and Reel 2N4401TA 2N4401 TO-92 3L Ammo 2N4401TAR 2N4401 TO-92 3L Ammo MMBT4401 2X SOT-23 3L Tape and Reel © 2001 Semiconductor Components Industries, LLC. Publication Order Number: September-2017, Rev. 2 MMBT4401/D
